UMG 509
Digital outputs
The UMG 509 has two digital outputs. These outputs
are galvanically separated from the analysis electronics
using optocouplers. The digital outputs have a joint
reference.
• The digital outputs can switch AC and DC loads.
• The digital outputs are not short-circuit proof.
• Connected cables that are longer than 30m must
be shielded when laid.
• An external auxilliary voltage is required.
• The digital outputs can be used as impulse outputs.

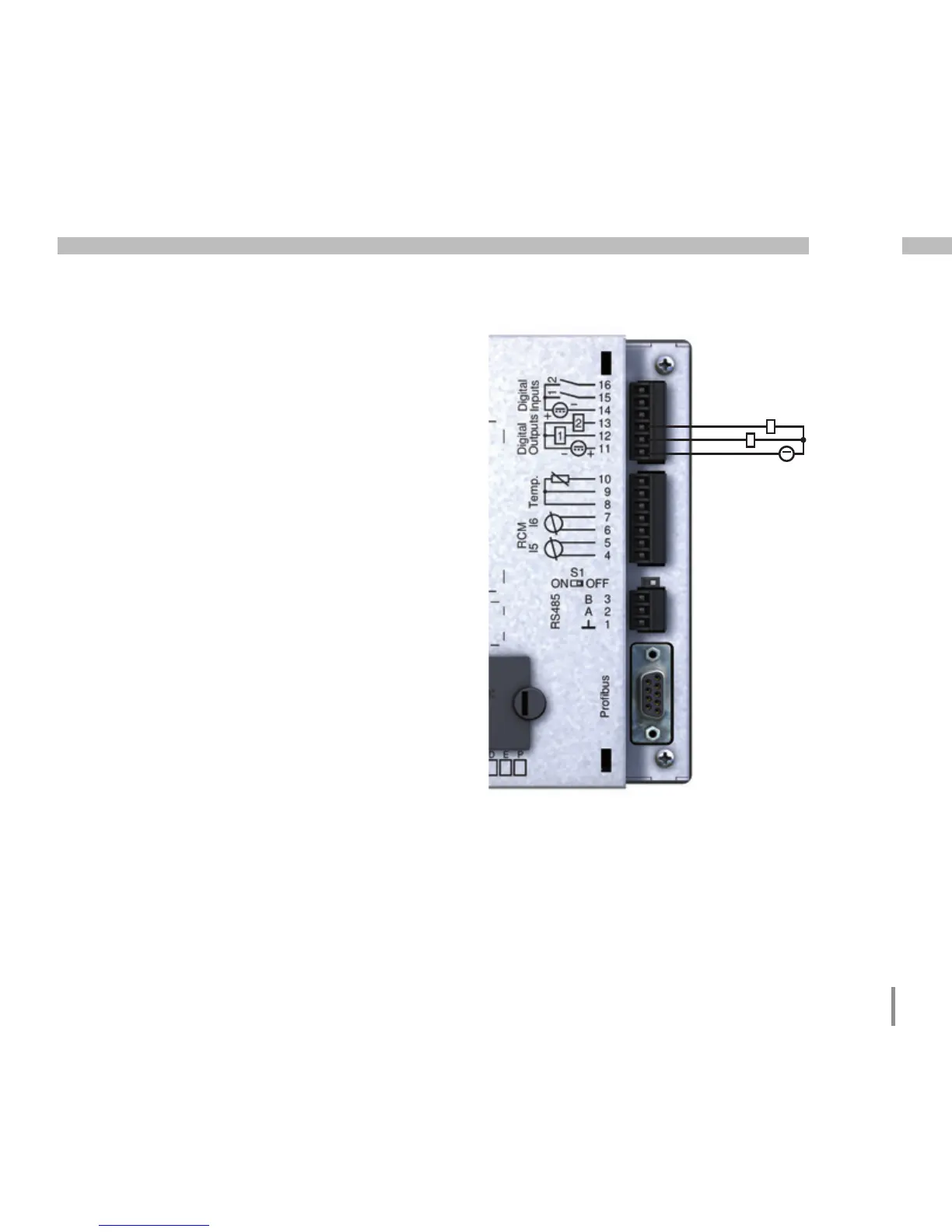

Fig. Connection of digital outputs
~
