44
UMG 509
K2
External
auxilliary voltage
+
24V DC
-
K1
DC
DC
11
12
13
Digital Ouput 1
Digital Ouput 2
C
When using the digital outputs as pulse
outputs, the auxilliary voltage (DC) must
have a max. residual ripple of 5%.
C
Functions for the digital outputs can be
adjusted clearly in the GridVis software
provided in the scope of delivery.
A connection between the UMG 509
and the PC via an interface is required
to use the GridVis software.
m
Please note!
Digital outputs are not short-circuit proof!

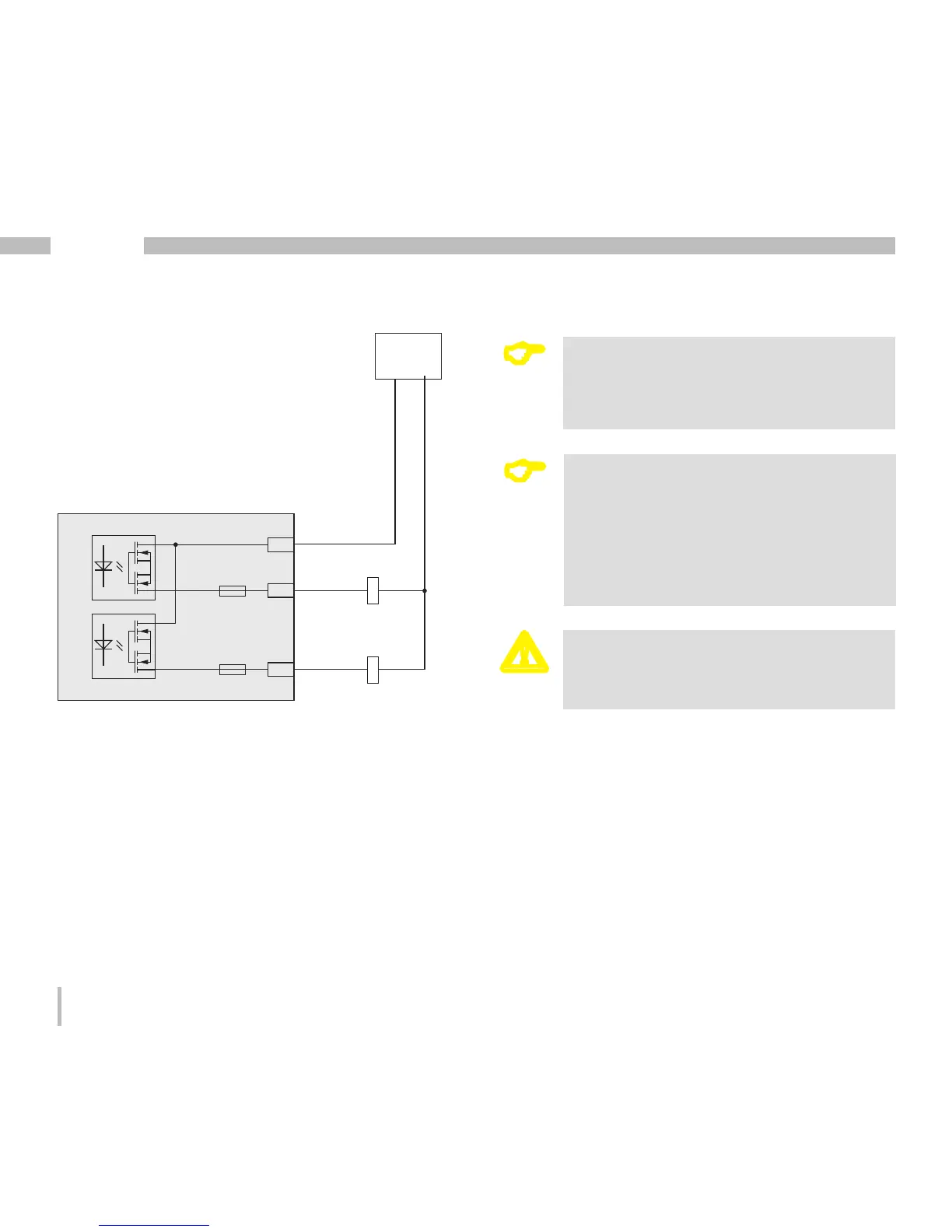

Fig. Example for two relays connected
to the digital outputs
