47
UMG 509

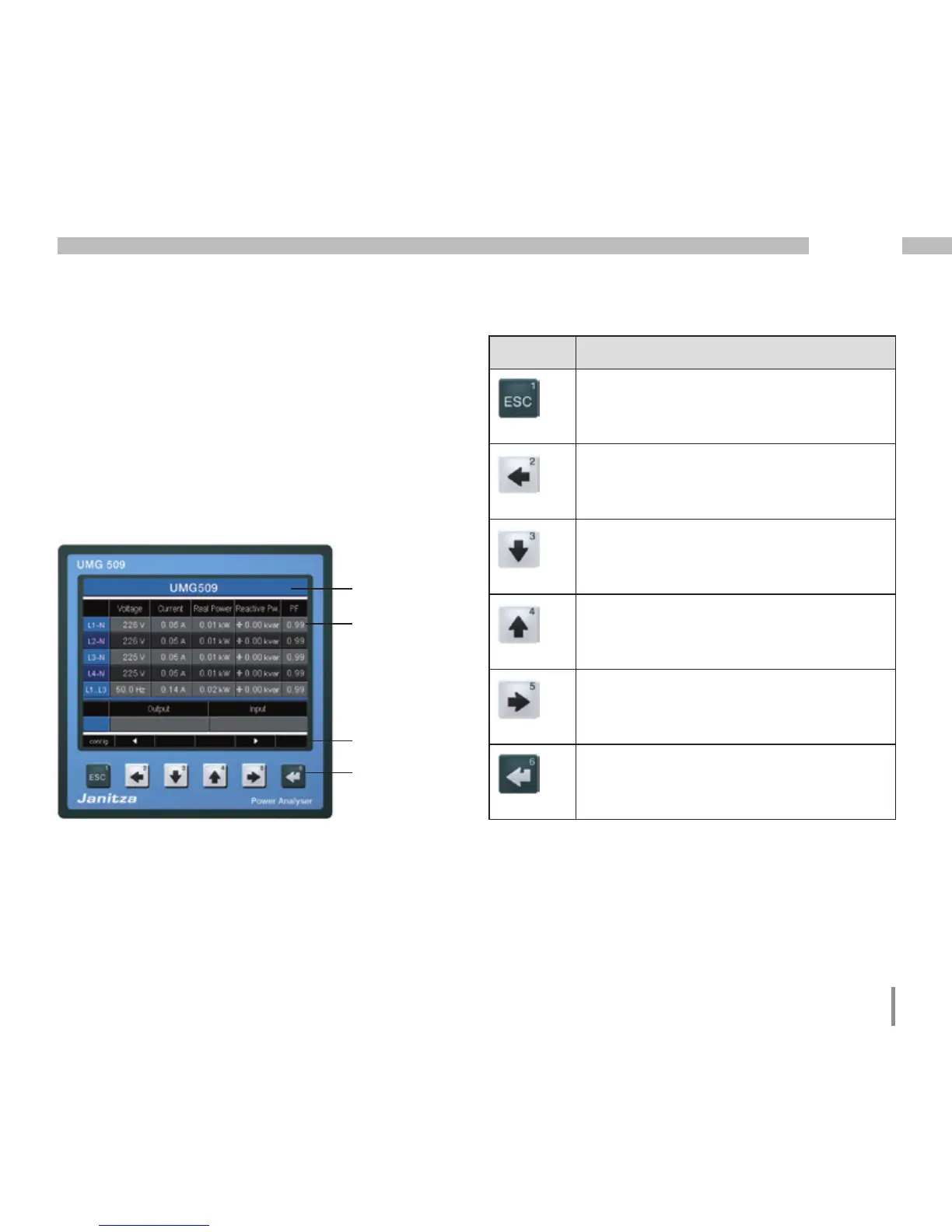

Operation
The UMG 509 is operated by six function keys.
Depending on the context, the six keys are assigned
with different functions:
• Selecting measured value displays.
• Navigation within the menus.
• Editing device settings.
Labelling of the
Function keys
Display title
Measured
values
Function keys
Meaning of the keys
Key Function
• Returns to the first screen (home)
• Exits selection menu
• Selects number
• Selects main values (U, I, P ...)
• Changes (number -1)
• By-values (select)
• Selects menu item
• Changes (number +1)
• By-values (select)
• Selects menu item
• Selects number
• Selects main values (U, I, P ...)
• Opens selection menu
• Confirm selection
