65
UMG 509

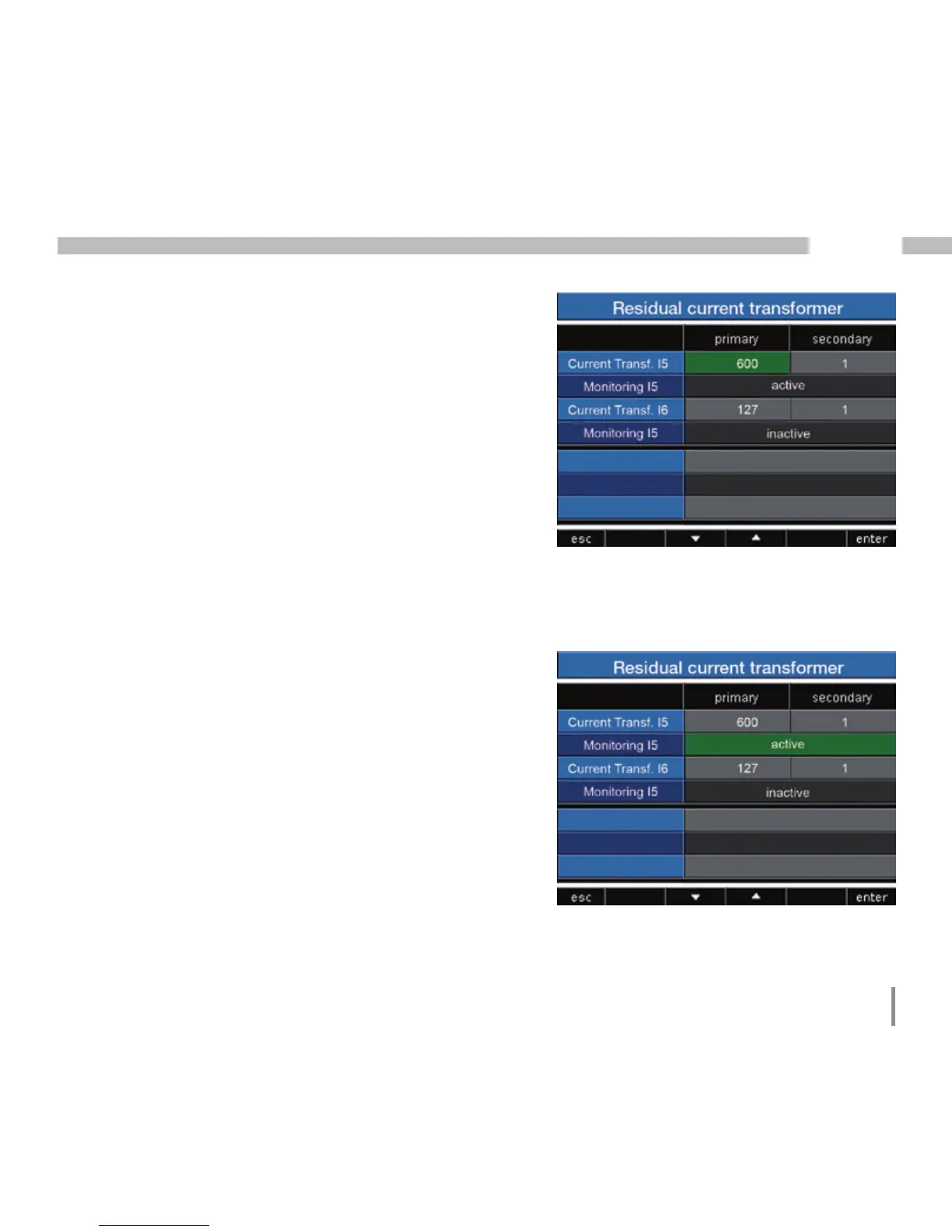

Residual current transformer
When using residual current inputs I5 and I6, the
corresponding transformer ratios of the used residual
current transformer must be set.
Setting range:
Primary 1 to 1000000
Secondary 1
Factory default setting:
Primary 5
Secondary 5
Monitoring
Activates or deactivates the failure monitoring of
the corresponding residual current inputs.
• Activated - Switches on the failure monitoring
for residual current monitoring.
• Deactivated - Switches off the failure monitoring
for residual current monitoring.
