2-1
2. NAMES AND FUNCTIONS OF PARTS/ASSEMBLY
This chapter contains the names and functions of the parts on the instrument
panels.
2.1 Front Panel

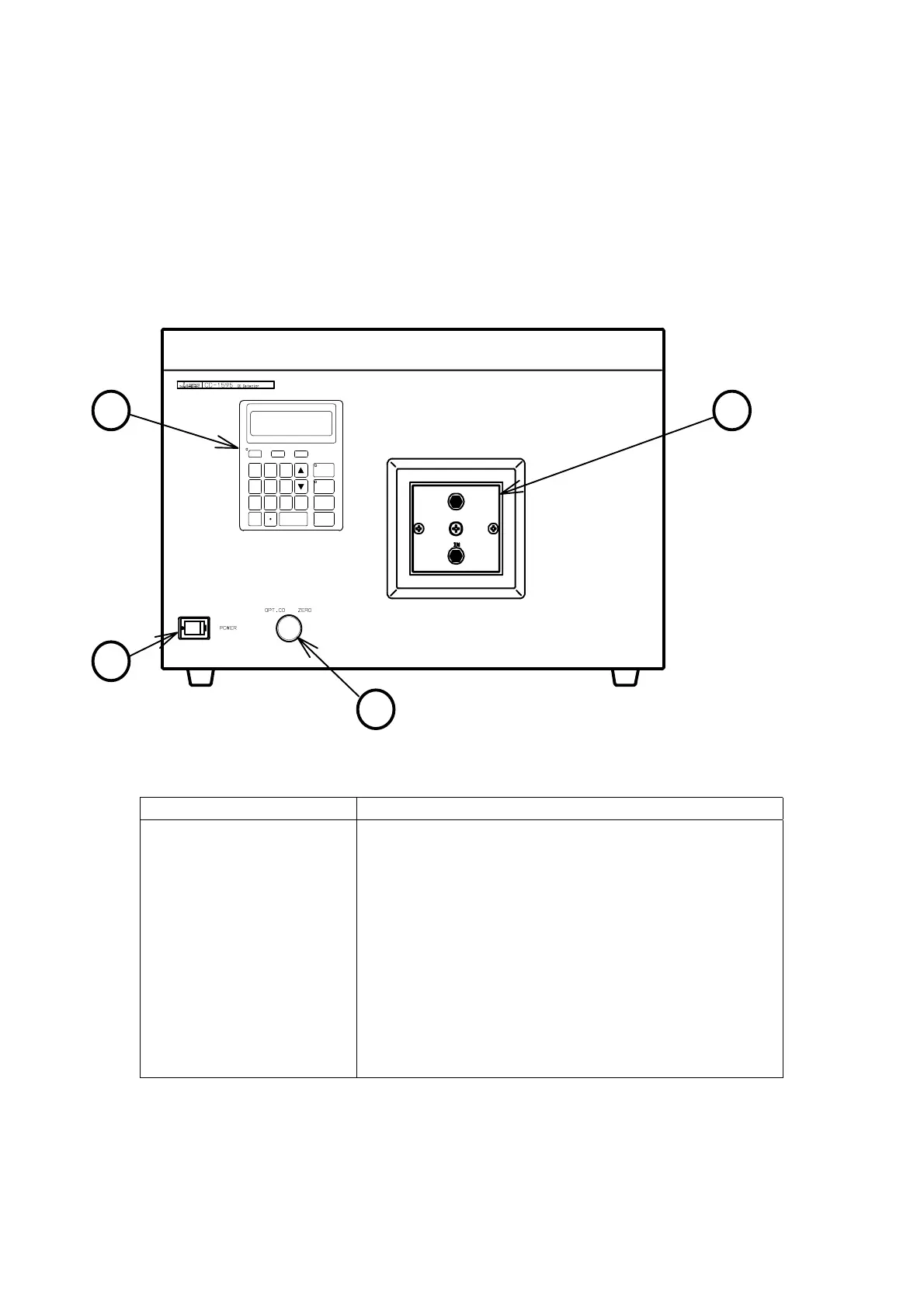

Figure 2.1 Front panel.
Name of part Description
(1) Flowcell assembly
(2) LCD display and
keypad
(3) “POWER” switch
(4) “OPT. CD ZERO”
knob
This is the cassette type flowcell assembly.
Display operating conditions, CD, UV and other
signal levels, parameters, and various messages.
Parameters necessary for the operation can be
entered through the keypad.
Used to turn the instrument on or off.
Used to adjust optical zero of the CD signal.
1
2
3
4
0
98
3
2
1
7
6
5
4
MODE
W.L(nm)
GAIN
CD
AU RESPONCE
AUTO
ZERO
PRGM
RUN
MARK
MONIT
CLEAR
SHIFT SCAN PRGM
EDIT/ENTER
