Jede QUATTRO - 5 Loading Schedule

QUATTRO
Rev. A 2012-09-10 Service manual
12
1
2
3
4

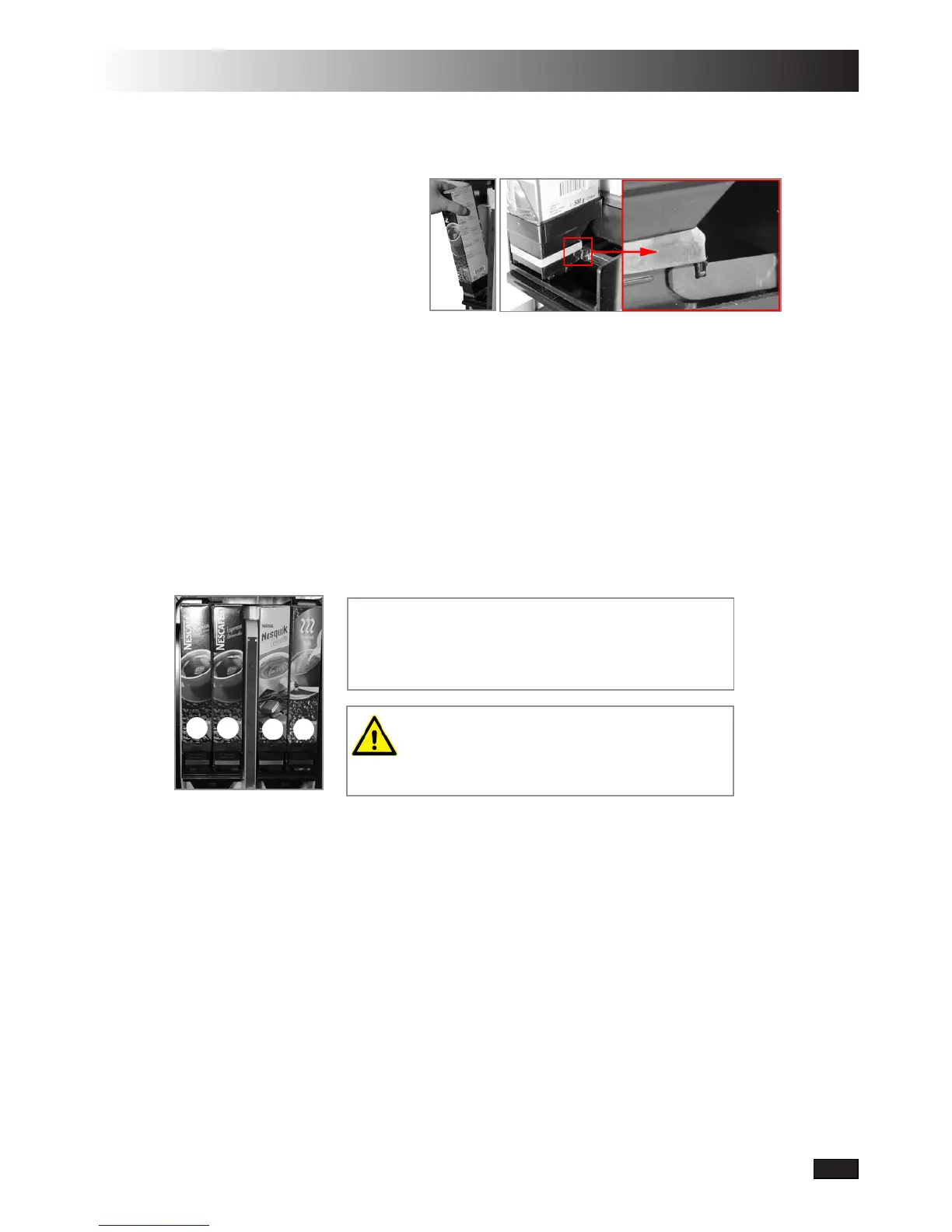

Insertthecartridgesasperg-
ures 10-12. Check that they locate
properly into the grip hooks
(gure11and12).
The cartridges must be placed
in the correct order as per the
loading schedule below.
5 Loading schedule
This vending machine is pre-programmed for 3 different loading schedules. As
standard, loading schedule no. 1 is used. Place the drink cartridges as per the
following:
Nescafe Arabica Item no: 1053
Nescafe Espresso Grande Item no: 1069
Nesquick Lacté Item no: 1073
Skimmed milk Item no: 1018
1.
2.
3.
4.
Irrespective of loading schedule, cartridge
number 4 can be replaced with:
Figure 10
Figure 11
Figure 12
Cappuccino Topping Item no: 10884.
Figure 13
