Rev. A 2012-09-10Service manual
23

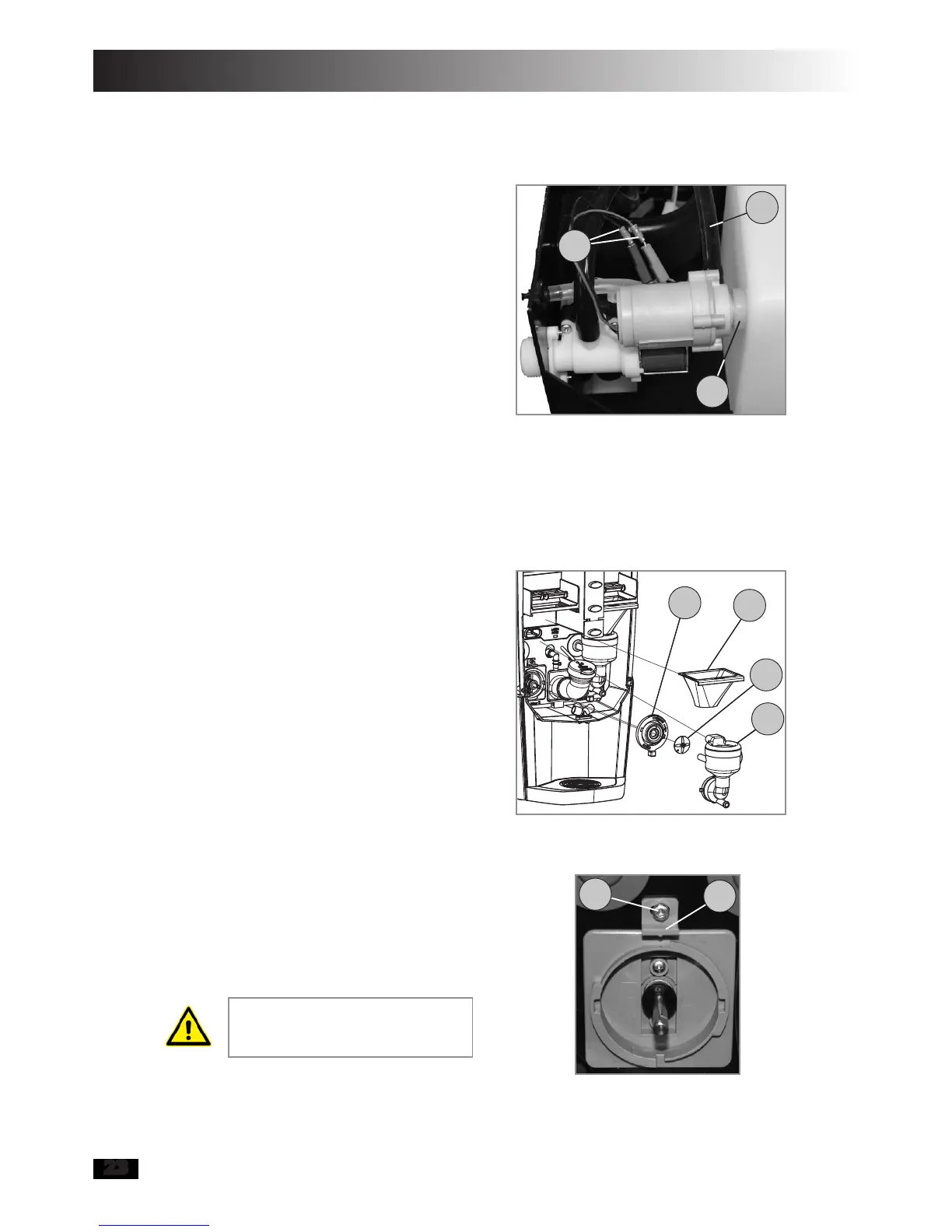

7.6Replacingthepump(built-incoldwatertank)
Remove the upper and lower
casings.
Loosen the pump’s electrical
connections(1,gure30).
Remove hose (2) between pump
and heater tank.
Remove the pump from its inlet
(3).
Mount the new pump in reverse
order. Note the colour markings
on the cable clips (1).
1.
2.
3.
4.
5.
7.7Replacingthewhippermotor
Open the front of the machine
Remove the funnel (2), mixer bowl
(4),whipper(3)andthexing
plate for the mixer bowl
(1,gure31).
Loosenthexingscrew(5,gure
32) for the whipper motor.
Press lip (6) downward and lift out
the whipper motor. Disconnect the
motor’s electrical connections.
Note the cable connections.
When replacing the whisk motor,
also replace the seal for the whipper
axle or alternatively the complete
xingplate.
Mount the new motor in reverse
order.
1.
2.
3.
4.
5.
6.
Note the cable connections
concerning positive/negative
pole.
1
2
3
Figure 30
1
2
3
4
Figure 31
Figure 32
5
6
