6.4 Cleaning of the machine’s internal parts
We recommend you perform this process every week with normal use.

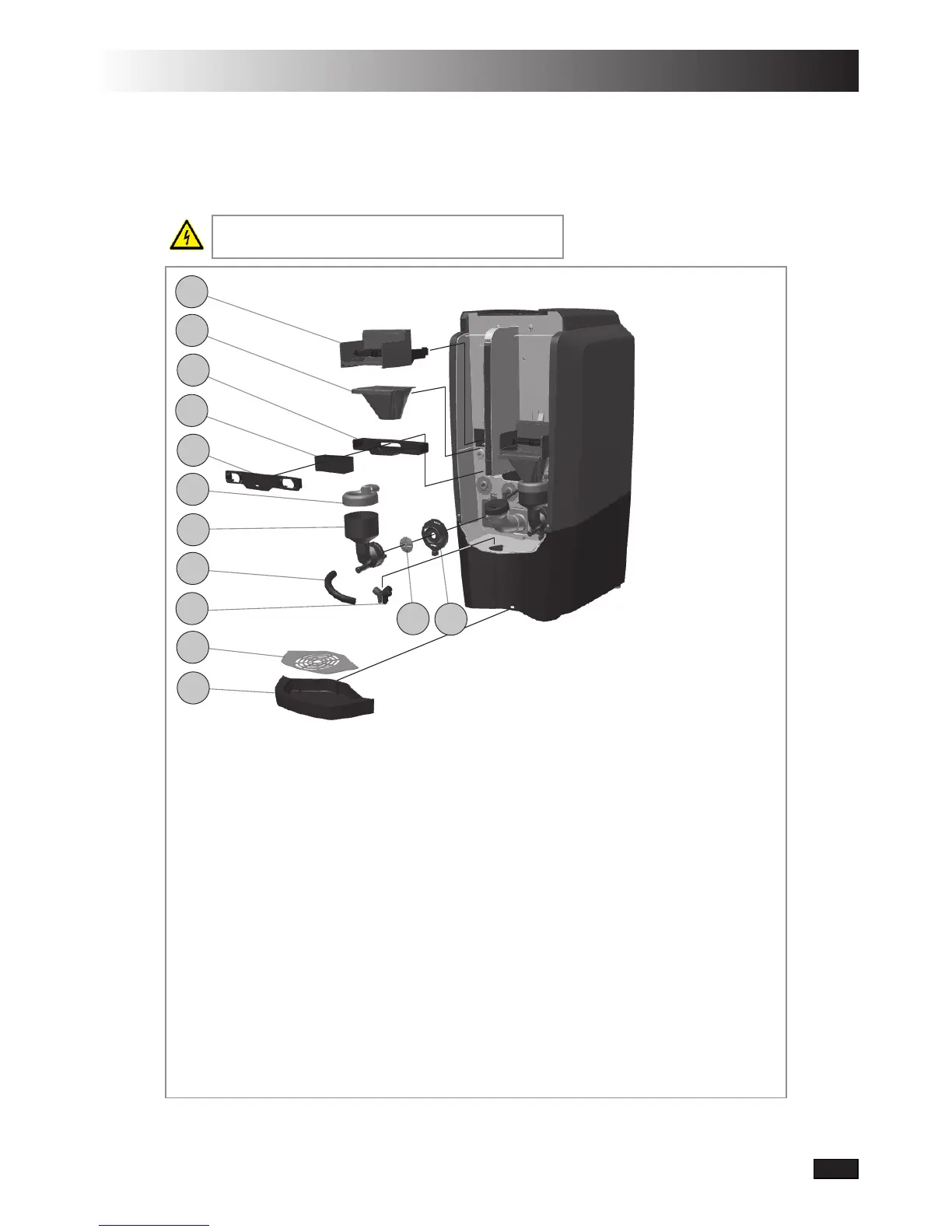

Partsthatmustbewashed(gure16):  Quantity:
Dispenser. 2
Funnel. 2
Fan duct (rear). 1
Filter. 1
Fan duct (front). 1
Steam trap. 2
Mixing bowl. 2
Hose. 3
Nozzle. 3
Spill grate. 1
Spill tray. 1
Whipper. 2
Lock ring (mixer bowl). 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Figure 16
Always switch off the power to the machine
before you begin the cleaning process.
