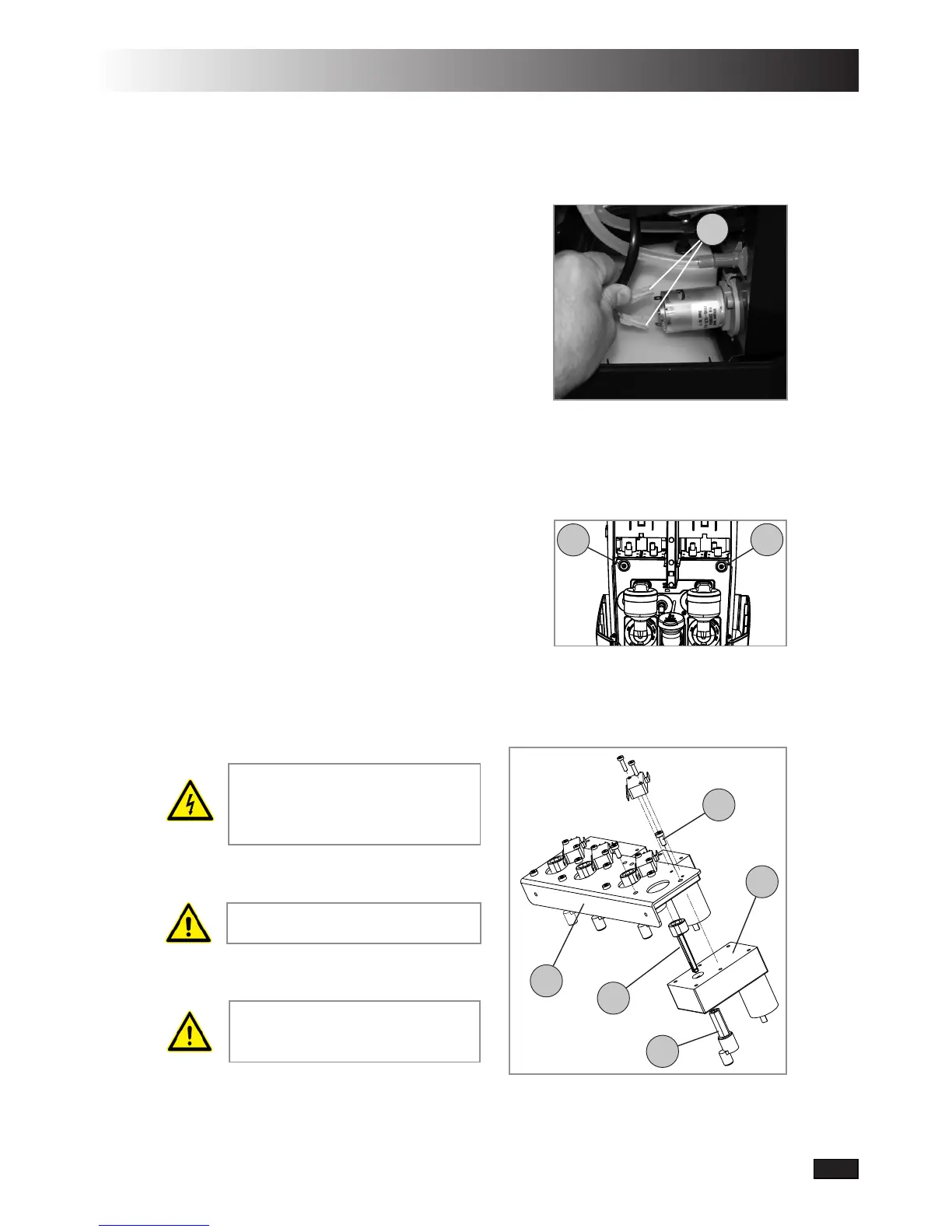

7.8 Replacing the dispenser motor
Remove the upper casings and front.
Remove the funnels and dispensers
(see chapter 6.5).
Loosen the left whisk motor’s
electricalconnections(1,gure32).
Remove the motor bridge by
looseningitsscrews(2,gure33)
from the front side of the machine
Liftoutthemotorbridge(5,gure
34) from the right side of the
machine. Remove the cabling to the
dispenser motor.
Remove the dispenser motor (4,
gure34)bylooseningitsscrews
(3) from the underside of the motor
bridge.
Note that the crank (7) and its cam
lobe (6) are keyed, that is to say
they can only be joined together in a
specicposition.
1.
2.
3.
4.
5.
6.
7.
