3. Description of the machine
3.1 Quattro
Quattro is a new addition to Jede’s machine product range for drink cartridges. The
machineispreparedforbothxedconnectiontoamainswatersupply(seechapter
4.1) and a water supply via its built-in tank (see chapter 4.2). The type of water
connection is automatically detected upon start-up (see chapter 4).
3.2 Cartridge system
The machine is constructed for four drink cartridges, which are easy to change ac-
cording to consumption. The cartridges are accessible when the vending machine’s
front is lifted up and folded upward (see chapter 4.3)
3.3 Drinks
The machine is programmed with 3 different loading schedules for varying drink
volumesandavours(seechapter5).Itisalsopossibletotemporarilyvarythe
avourofthedrinksbyholdinginthedrinkbuttonwhileserving(seechapter5.3).
3.4 Serving
The vending machine serves 4 different coffee drinks, hot chocolate and tea water.
The cup of your choice can be used with a max. height of 110 mm. Drinks are pre-
pared in separate mixer bowls and whippers (see chapter 6).

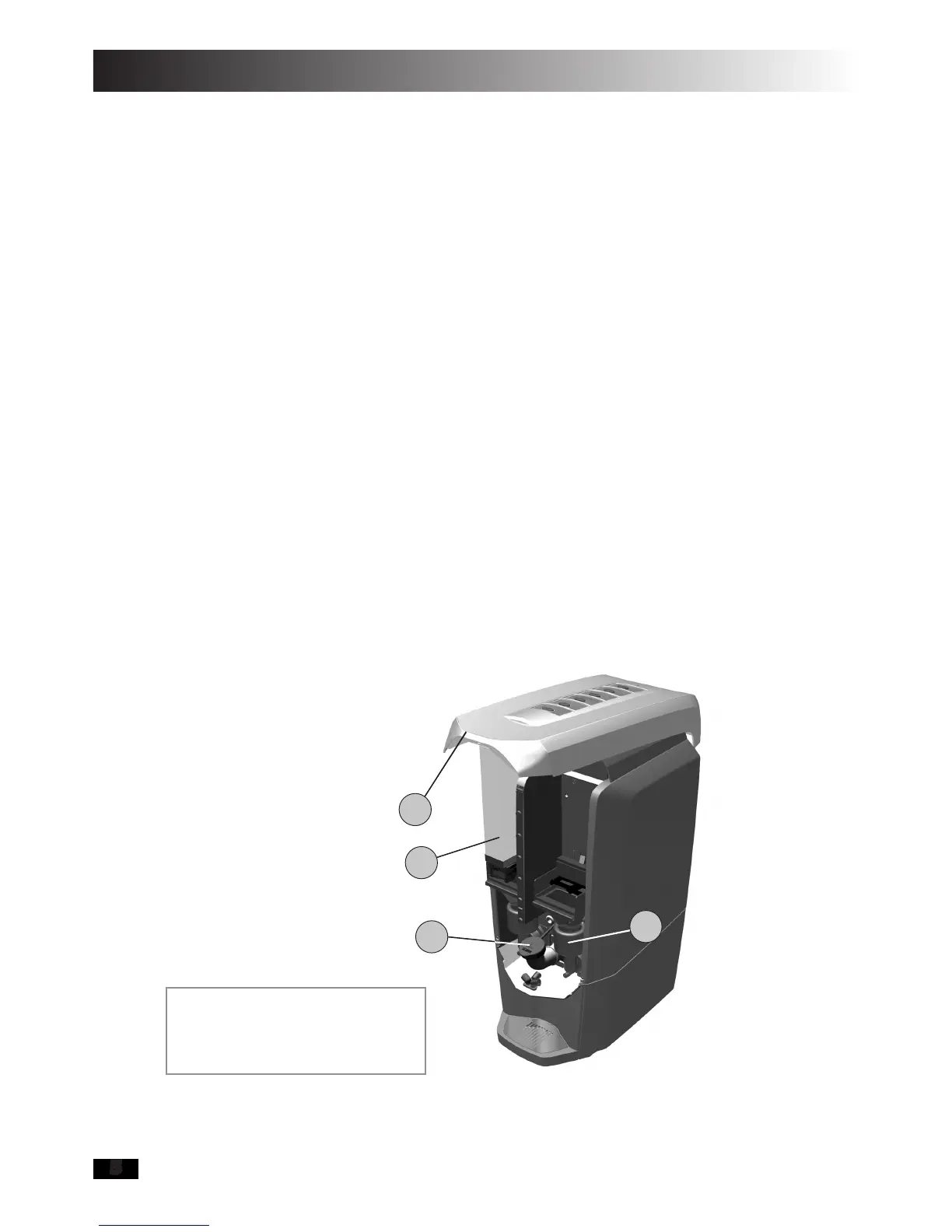

1. Front.
2. Drink cartridge.
3. Water tank, cap.
4. Mixing bowl.
Figure 2
