7.11 Replacing the temperature sensor
Shut off the water supply to the
machine and empty the water
heater tank.
Remove the upper casings and front.
Pull out the temperature sensor
(1,gure38)fromitstubeonthe
bottom side of the hot water tank.
Remove any clips and loosen the
temperature sensor’s connection
(J18,gure39)fromtheTSMcard.
Mount the new temperature sensor
in reverse order.
1.
2.
3.
4.
5.

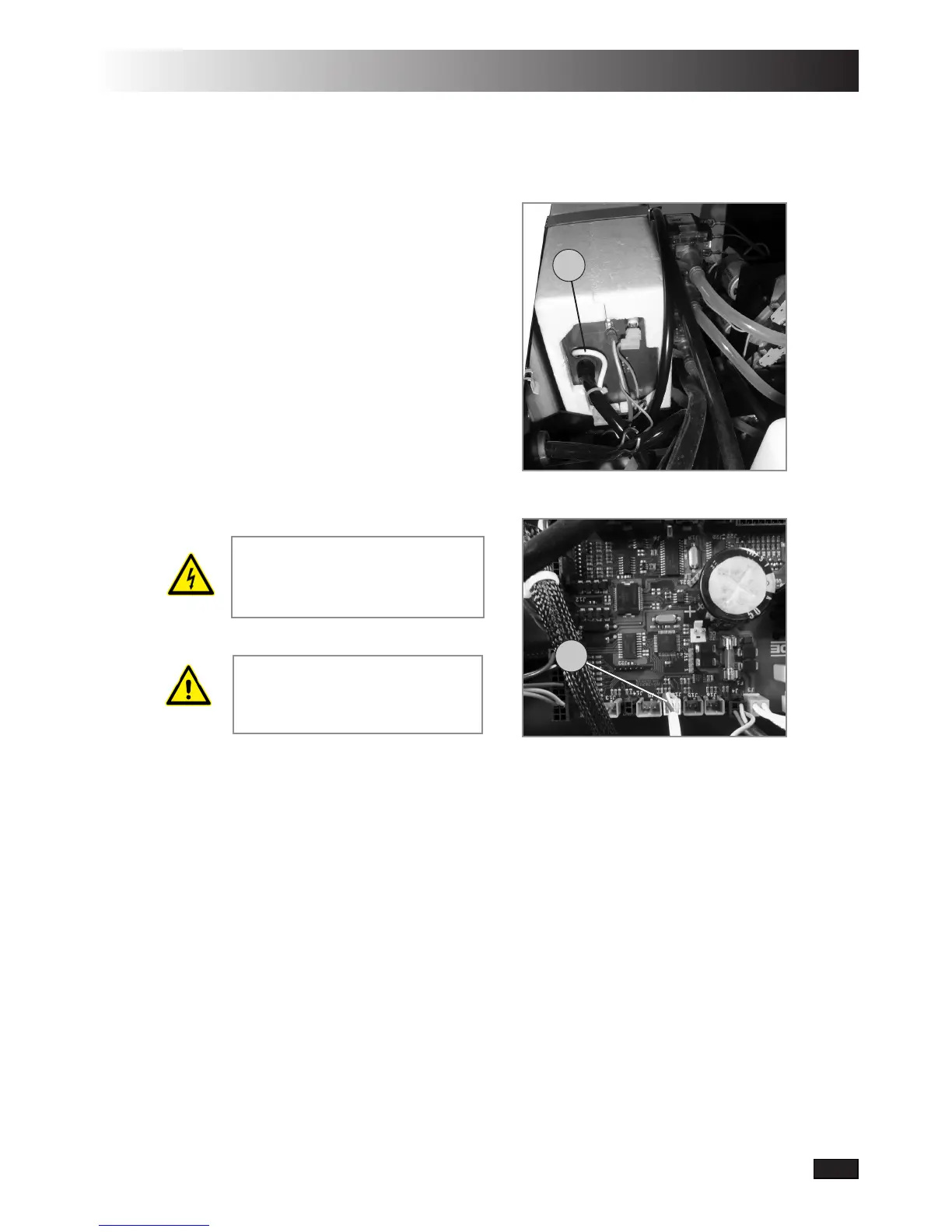

Figure 38
Figure 39
Note that the temperature sen-
sor must be mounted to the
full length of the temperature
sensor’s tube.
1
J18
Prior to beginning service, the
machine’splugmustalways
beremovedfromthewall
socket.
