5. Operation and maintenance devices
5.7.6. Slew ring lock (only for swiveling machines)
To swivel the machine follow these points (only for manual slew ring):
1. Remove the lock (1).
2. Pull up the lever (2) and hold it up.
3. Swivel the machine in the required position (several positions possible).
4. Release the lever (2). Adjustment locks in automatically.
5. Secure the lever with the lock (1).
Attention!
Turn and secure the machine into transport position before driving on public roads.

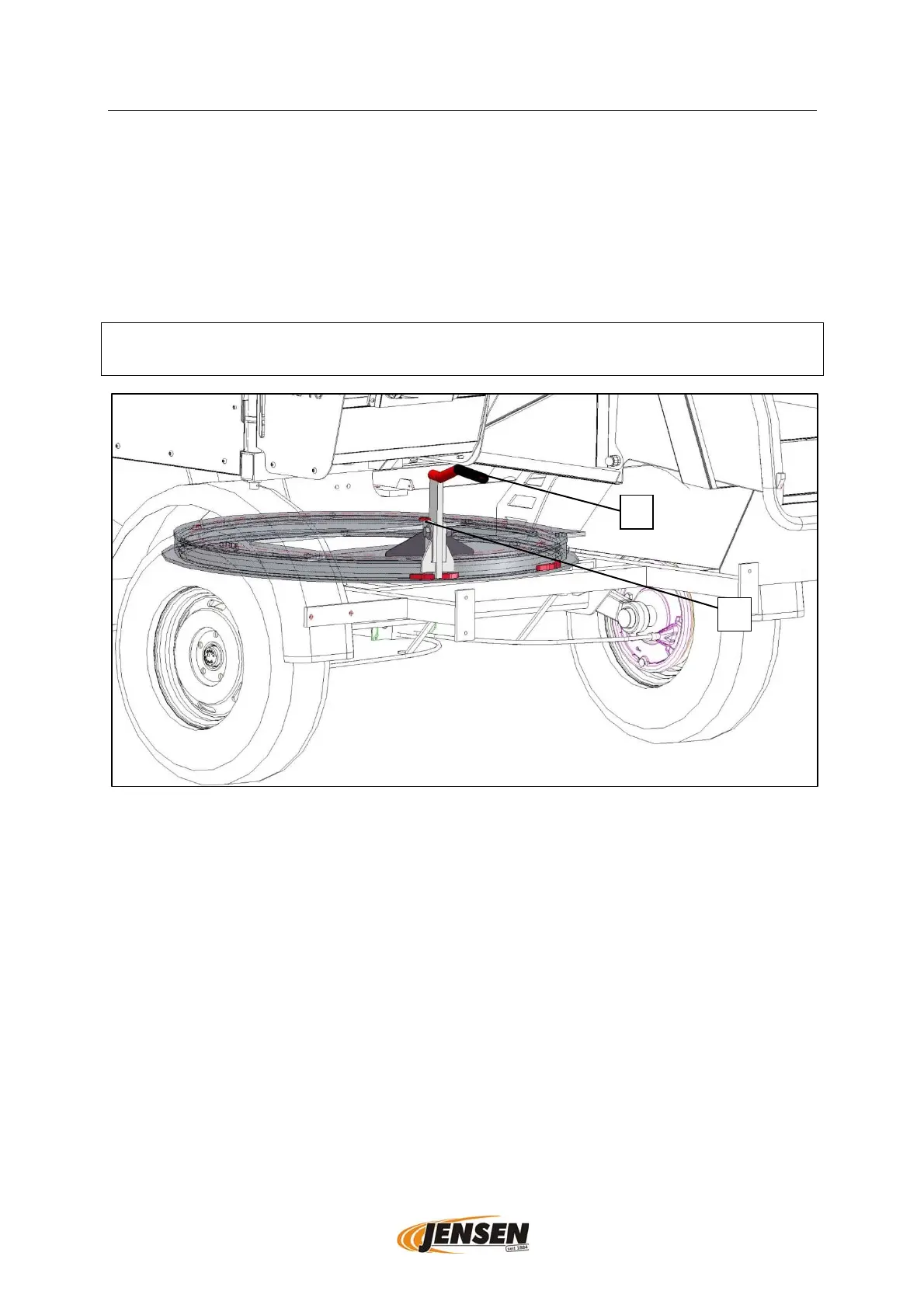

Slew ring lock, schematic display, differences in design and type possible.
