6. Maintenance
6.5.7. Comb system (optional)
The knives of the comb system (1) are hardened and cannot be re-sharpened. Worn
out knives can be reused one time by turning them. Clear the surface when changing
the knives. Comb-knives are located on the knife-disk and on the comb.
Tighten up the bolts with a tightening torque of 49 Nm.
Use new bolts when changing or reusing the knives. (M10x25 DIN 7984 8.8 galv.).

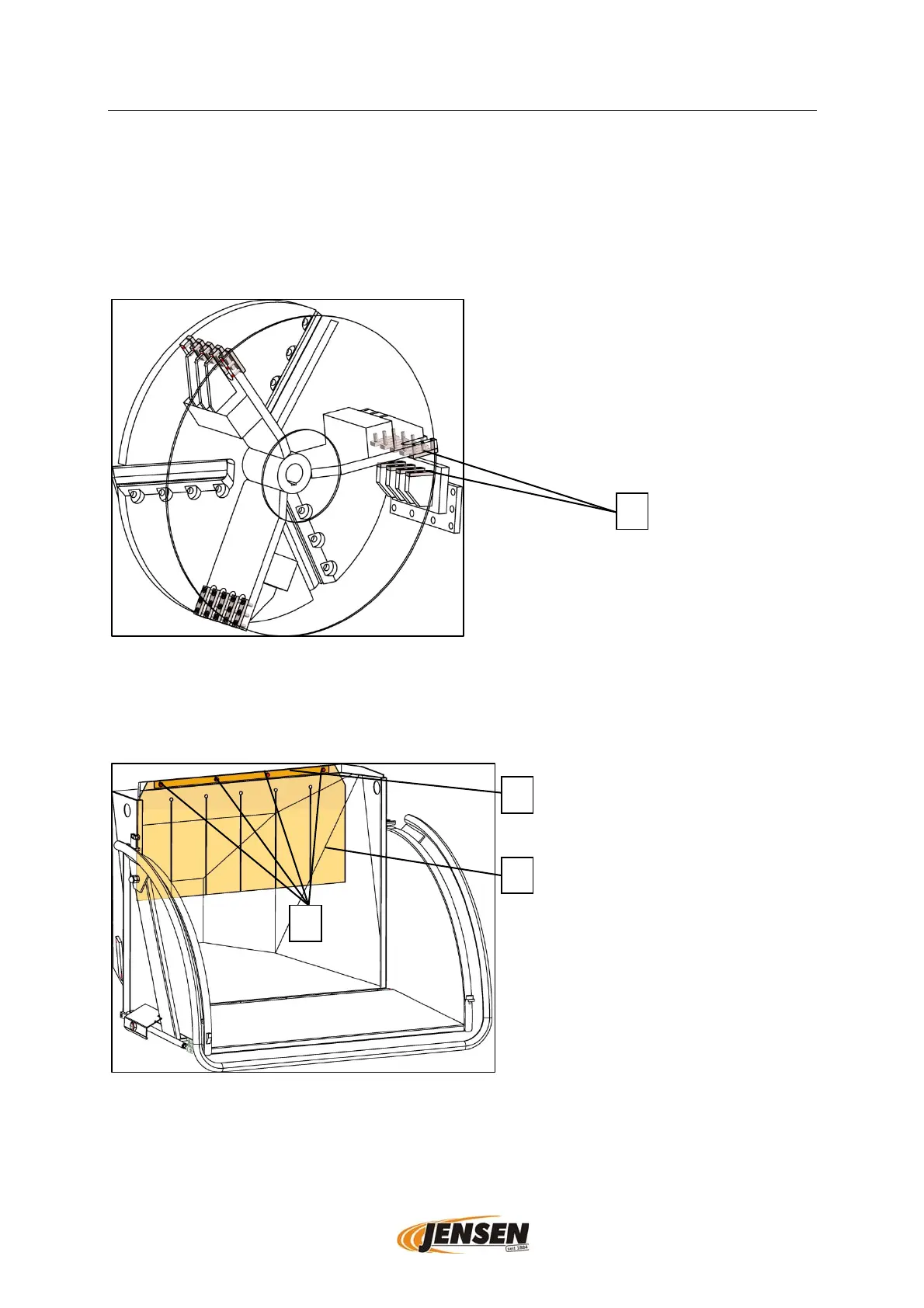

Comb system, schematic display, differences in design and type possible.
6.6. Rubber curtain
For your own protection replace the rubber curtain (1) when worn out.
To replace the rubber curtain remove the nuts (3), replace the rubber curtain remount
the threaded flange (2) and tighten up the nuts.
Schematic display, differences in design and type possible.
