Jensen VX6020 - Wiring Diagram

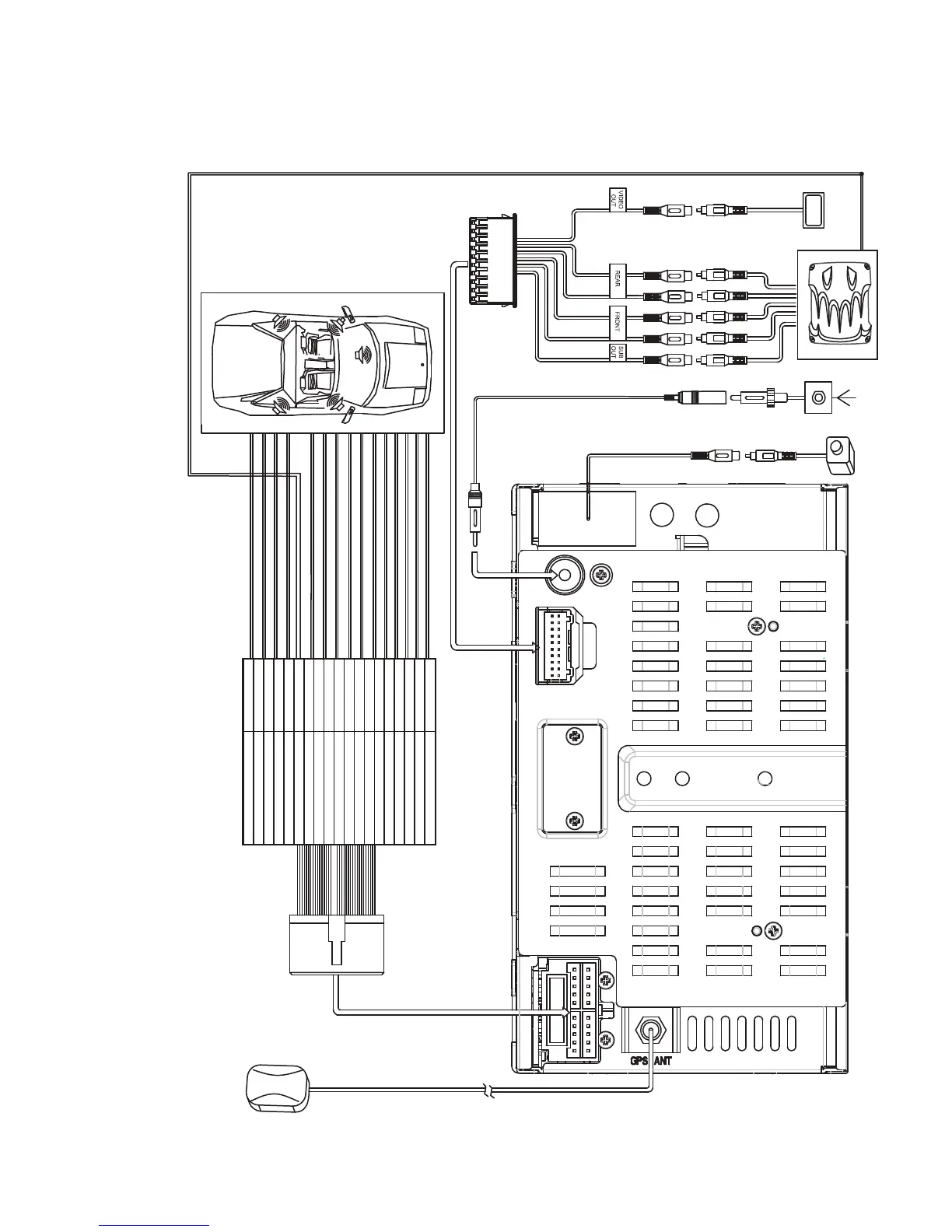

Wiring Diagram
CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully,
or have the installation handled by an experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
SWC A and SWC B are to be connected to the two leads of the SWC harness in the automobile. The third wire, SWC GND is to be connected to the lead identied as Ground on the SWC lead diagram for the specic automobile. Wiring of the SWC lead in the auto steering wheel may vary depending on the type of automobile. Please consult the wire harness diagram for the pinout of your specic automobile’s SWC conguration. Some automobiles may not be compatible with this 3 wire SWC resistive input. AVX recommends that installation of this radio be performed by a professional installer.
KEY A : SWC A: Primary programming lead KEY A : SWC B: Secondary programming lead
MOBILE POWER AMP
Power On
Trigger Wire
SWC A
CHASSIS GROUND (-) BATTERY 12V (+) ACC / IGNITION (+) PARKING BRAKE (-) REVERSE (+) POWER ANT/AMP (+)
ILLUMINATION (+)
-
LEFT FRONT SPEAKER (-)
LEFT FRONT SPEAKER (+)
RIGHT FRONT SPEAKER (-)
RIGHT FRONT SPEAKER (+)
LEFT REAR SPEAKER (-) LEFT REAR SPEAKER (+)
RIGHT REAR SPEAKER (-)
RIGHT REAR SPEAKER (+)
SWC B SWC GROUND
BLACK YELLOW RED
PINK
GREEN/WHITE
BLUE
ORANGE/WHITE -
GRAY/BLACK
GRAY
GREEN/BLACK GREEN
PURPLE/BLACK ORANGE
PURPLE
WHITE/BROWN BROWN/BLACK
WHITE/BLACK
WHITE
Rear Video
Yellow
Red
White
Red
White
Blue
Radio Ant.
Backup
Camera
Yellow / Camera-Video
GPS Antenna
BLUE (+) POWER ANTENNA & AMPLIFIER TURN-ON
