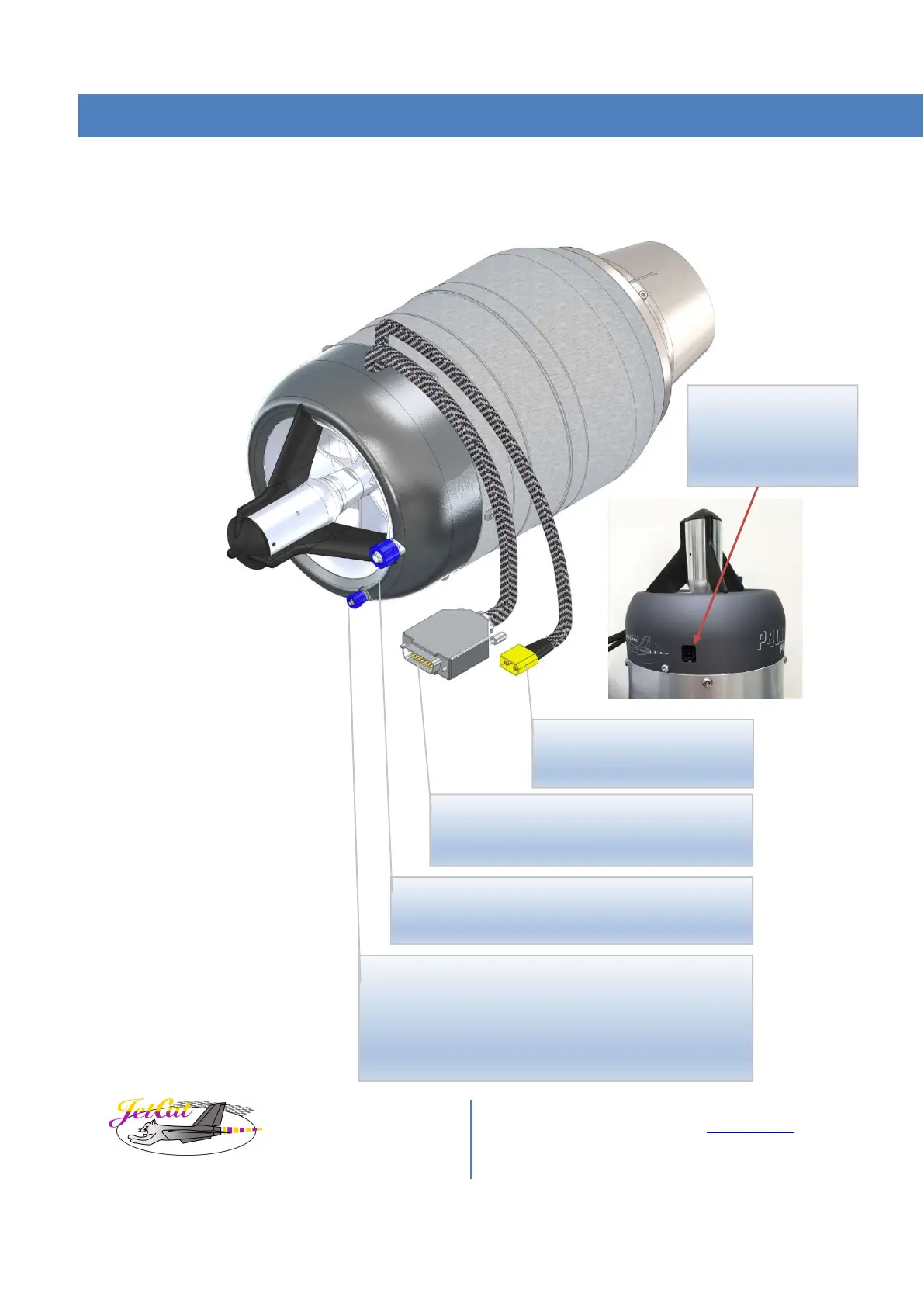

Connections on the engine, overview
Once you have unpacked and identified all the components, follow the system diagram/photo for all connections.
Connector A
SUB-D 15pin connector data/control. Or
customer specific connector
Connector B
XT60-power connector. Or
customer specific connector
Fuel inlet, fuel pump is inside of engine!
Do not use a filter in the suction line just an UAT air
Bleed air output port (OPTIONAL).
Can be used to pressurize fuel tank for high altitude
operation.
Inside of the engine there is a one-way valve fitted which
prevents reverse flow into the engine. If bleed air function
is not needed, please block this port by a piece of tubing
Expansion connector C
4-pin Molex connector.
For connection of GSU or
smoke pump or other
JetCat accessory.
