10. Set the auxiliary channel to the middle position for Start/Standby and press Select Menu or the LED I/O
board button switch again to store the R/C system’s pulse width for the engine to start and run. The red
Pump running LED will turn off and the yellow Standby LED will illuminate.

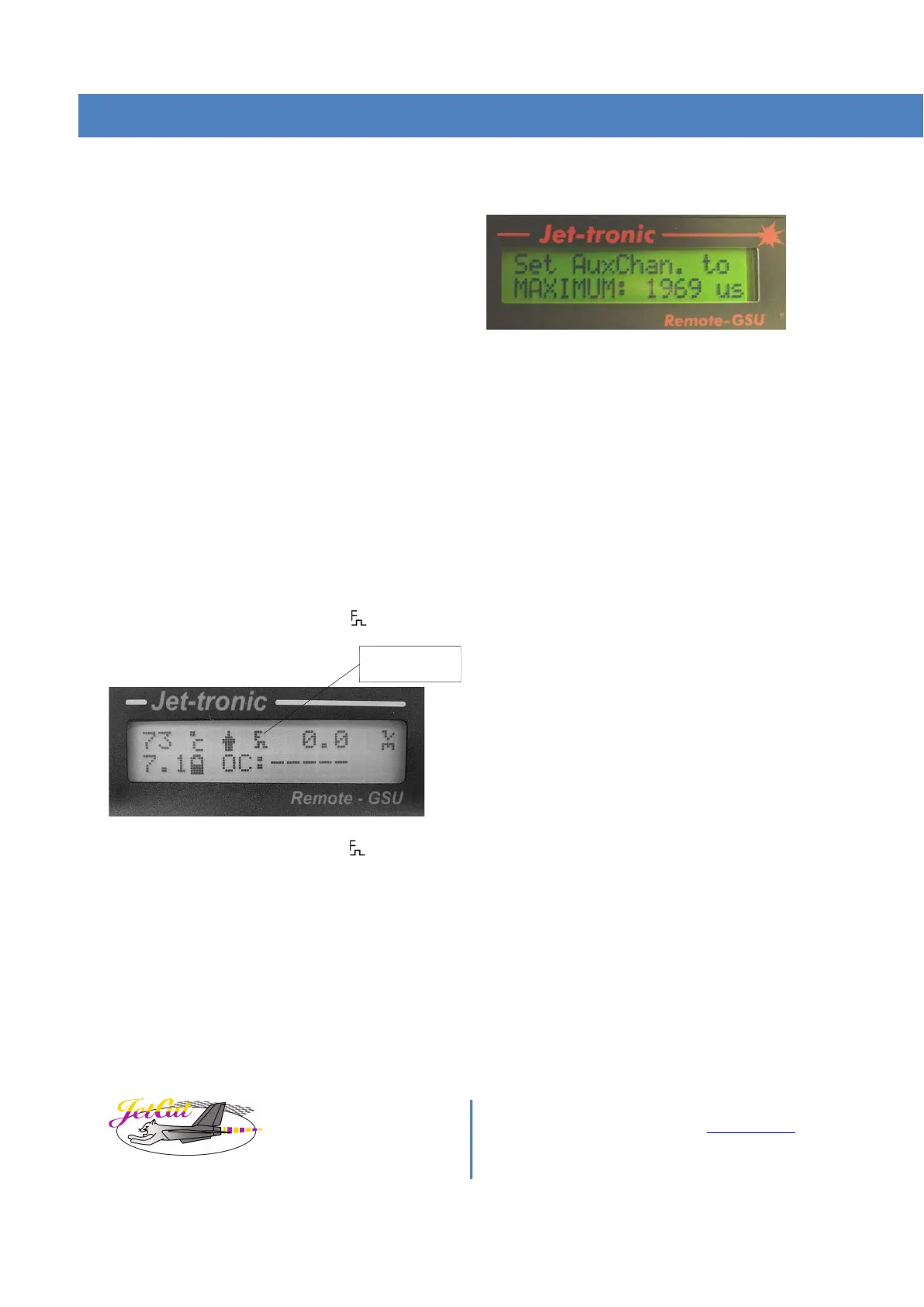

The GSU screen will display:
AUX channel maximum “Auto-Off” position
11. Set the auxiliary channel to the maximum
position for Auto-Off and press Select Menu or the LED I/O board button switch again to store the R/C
system’s pulse width for a normal auto shut-off of the engine. The yellow Standby LED will turn off.
12. The green OK LED will flash and the display will briefly show “SAVING SETUP DAT“ and then return to the
normal default RUN screen. Return the throttle stick and trim to the minimum position and the auxiliary
channel (if used) to Off and the green OK LED will turn off. This completes the programming.
The ECU will
now permanently store the data. Repeating this procedure is only necessary when the R/C system is
changed or adjusted.
Note: This data is permanently stored in the engine. If you change ECUs, the engine data will be copied
into the new ECU and the “learn R/C” will not need to be redone
.
Verify failsafe programing
You can verify the failsafe function in the default RUN screen with the GSU. With your receiver and ECU on, turn off the
transmitter. After about two seconds a should display on the screen.
Turn your transmitter back on and the should clear from the screen. The failsafe must function to operate the
engine in a safe manner.
Failsafe active
