RC-Servo PWM inputs / Telemetry output /Airspeed input
The engine can be controlled by 1-2 Servo PWM inputs. If Servo PWM control is desired, at least the THR channel
needs to be connected.
Power on via RC-signal
Besides the control function, the positive supply voltage on the servo inputs (THR/AUX) is used to power up the
ECU/engine!
This means the ECU/engine will switched on as soon as the receiver is powered up / or when a voltage on the “+” pin
of the servo inputs is supplied to the PRO-Interface.

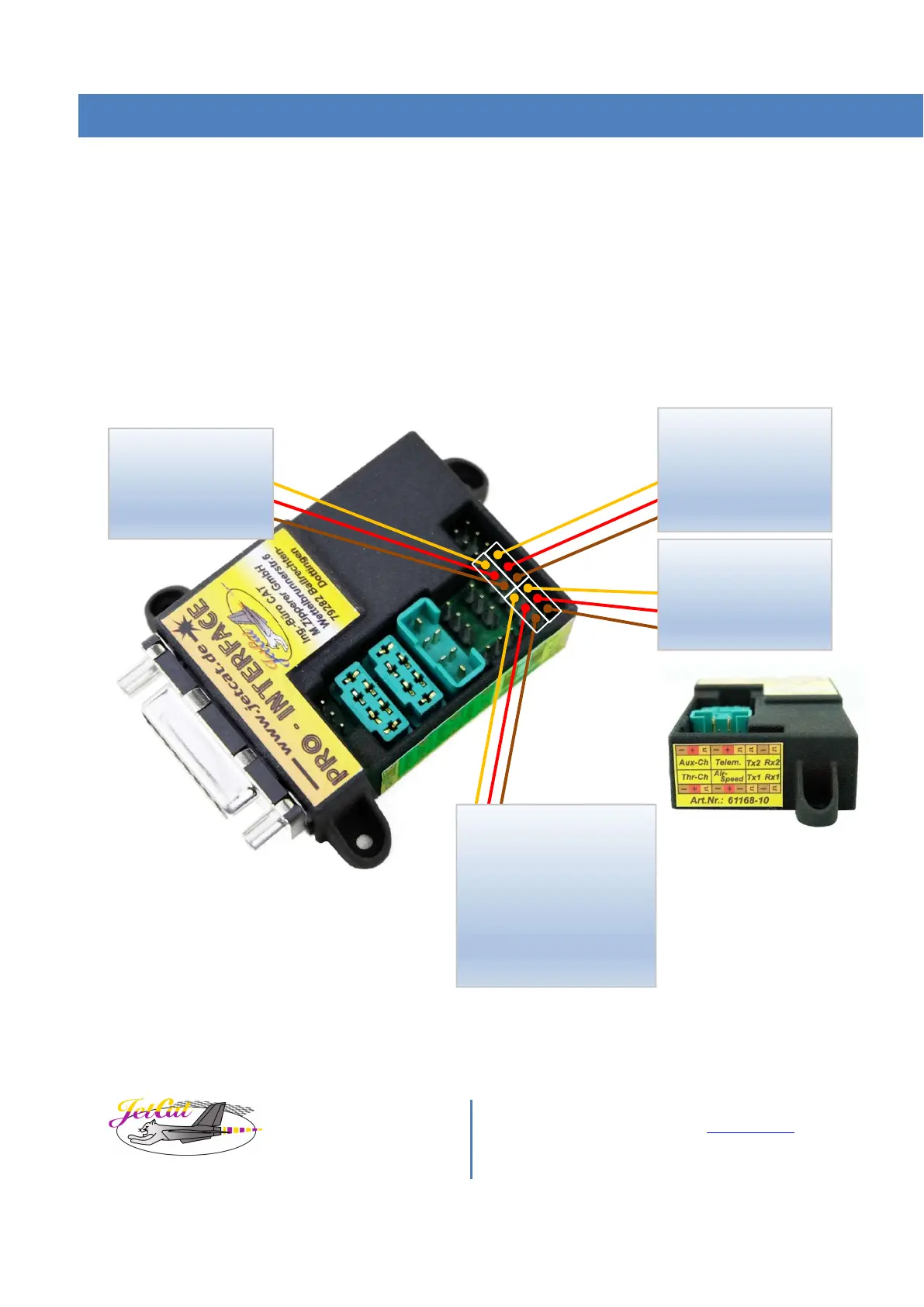

S + - (AUX)
AUX (auxiliary servo PWM
input channel)
Can be used for engine
ON/OFF control or for
controlling of a smoke pump
the airspeed sensor or other
features.
THR (throttle channel)
Signal (Servo PWM)
+
-
Input for airspeed
sensor (option)
Airspeed-Signal
+
-
Telemetry output
Telemetry-Signal
+
-
