Engine Power ON/OFF

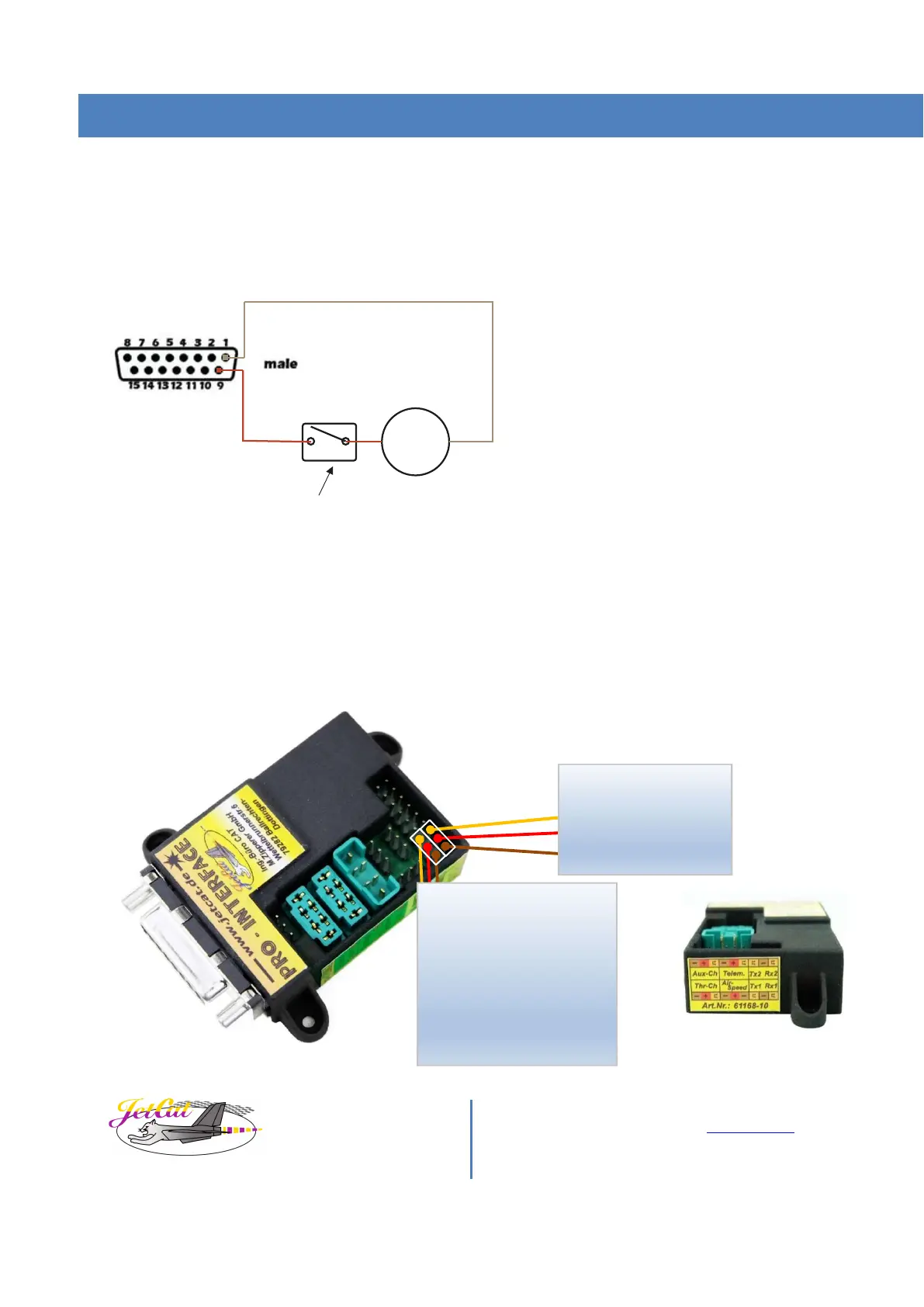

Engine is powered on when a positive control voltage (4-14V) is applied to pin 9 of the 15pin SUB-D connector, with
Pin 1 connected to GND.
Engine power ON control signal
4-14V
GND
DC =
4-14V
Connector A
optional switch
20mA max
When using the JetCat PRO interface this can be accomplished like this:
Power on via RC-signal from receiver
Whenever a voltage is applied to at least one of the RC-PWM inputs (between the “+” and “-“ pins), the engine will
power up. In a typical RC-model configuration this will happen automatically whenever the receiver system is turned
on.
S + - (AUX)
AUX (auxiliary servo PWM
input channel)
Can be used for engine
ON/OFF control or for
controlling of a smoke pump
the airspeed sensor or other
features.
THR (throttle channel)
Signal (Servo PWM)
+
-
