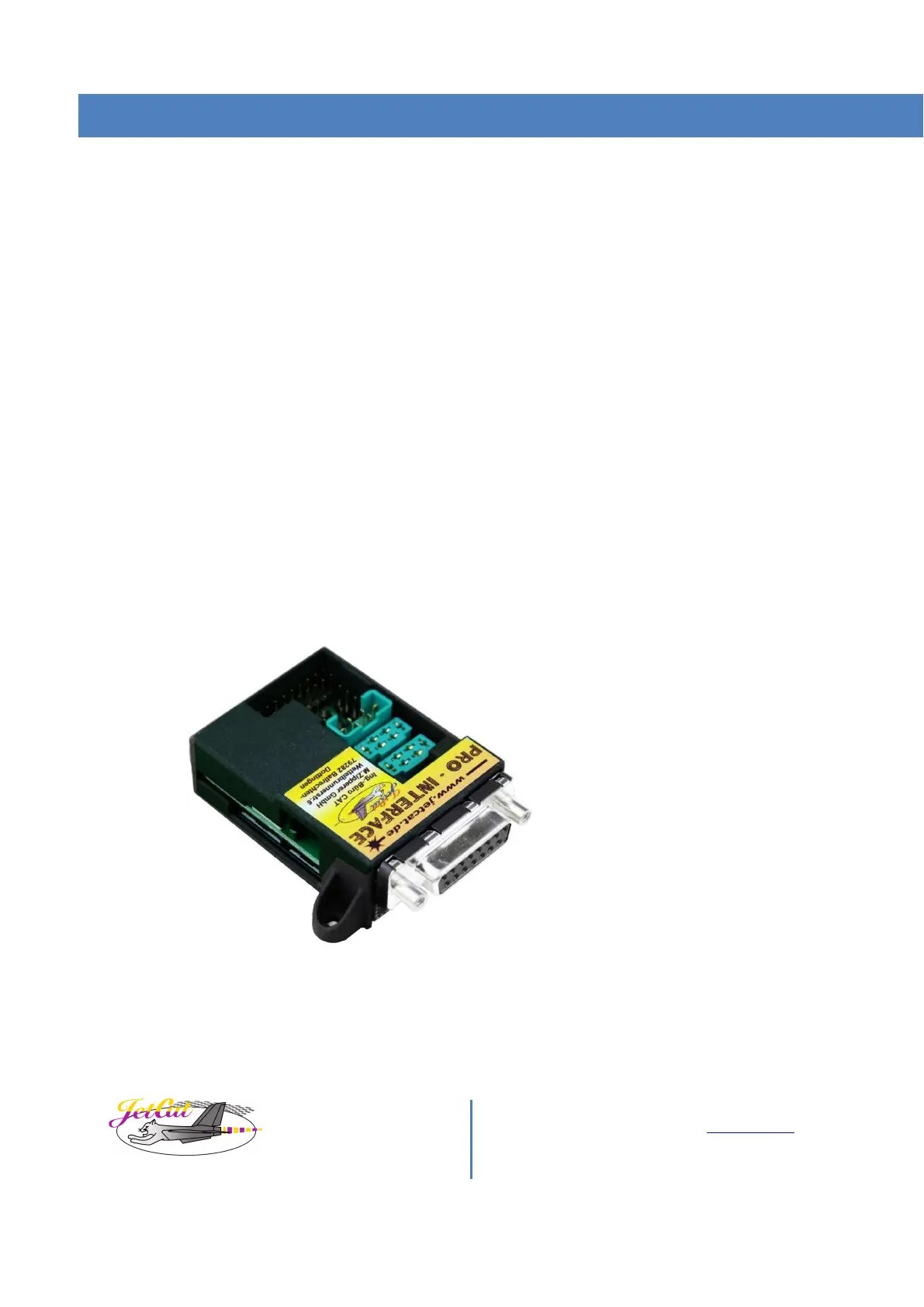

JetCat PRO-Interface
By using the “JetCat-PRO” interface, not only can all PRO engines easily be used in RC-model applications, it provides a
ready-made solution, and easy interface point for educational and industrial applications.
It also provides full functionality of our JetCat Telemetry-Adapter if desired!
Furthermore, the PRO-Interface allows for an easy access point to connect other accessories such as:
 One or two channel RC control (from receiver)
 Telemetry output for: Jeti, Graupner Hott, Multiplex M-BUS and Futaba SBUS-2
 RJ12 jack for connection of GSU
 Air Speed sensor header
 6 and 8 pin ERNI flat cable connectors (e.g. for connection of LCU / Mini GSU)
 RS232 header for computer control
 CAN-Bus header
 Header to JetCat BMS (Battery Management System)
 Cross check communication port (for interconnecting / synchronizing two engines).
 3x Status LEDs

Analog and digital inputs for:
- Power On/Off
- Engine On/Off Control
- Engine RPM command/ control via a directly connected potentiometer
