CAN-Bus / Serial port connectors
The engine provides a CAN-Bus interface as well as two serial interfaces (COM1/COM2).
COM1 is the main control interface, COM2 is used for special tasks as e.g. synchronizing two engines (cross checking
feature). Signal level on COM1/2 is 3,3V TTL per default. COM1 signals are also fed out on the GSU connector.
Protocols for the CAN interface as well as the serial communication protocol can be obtained from JetCat on request.

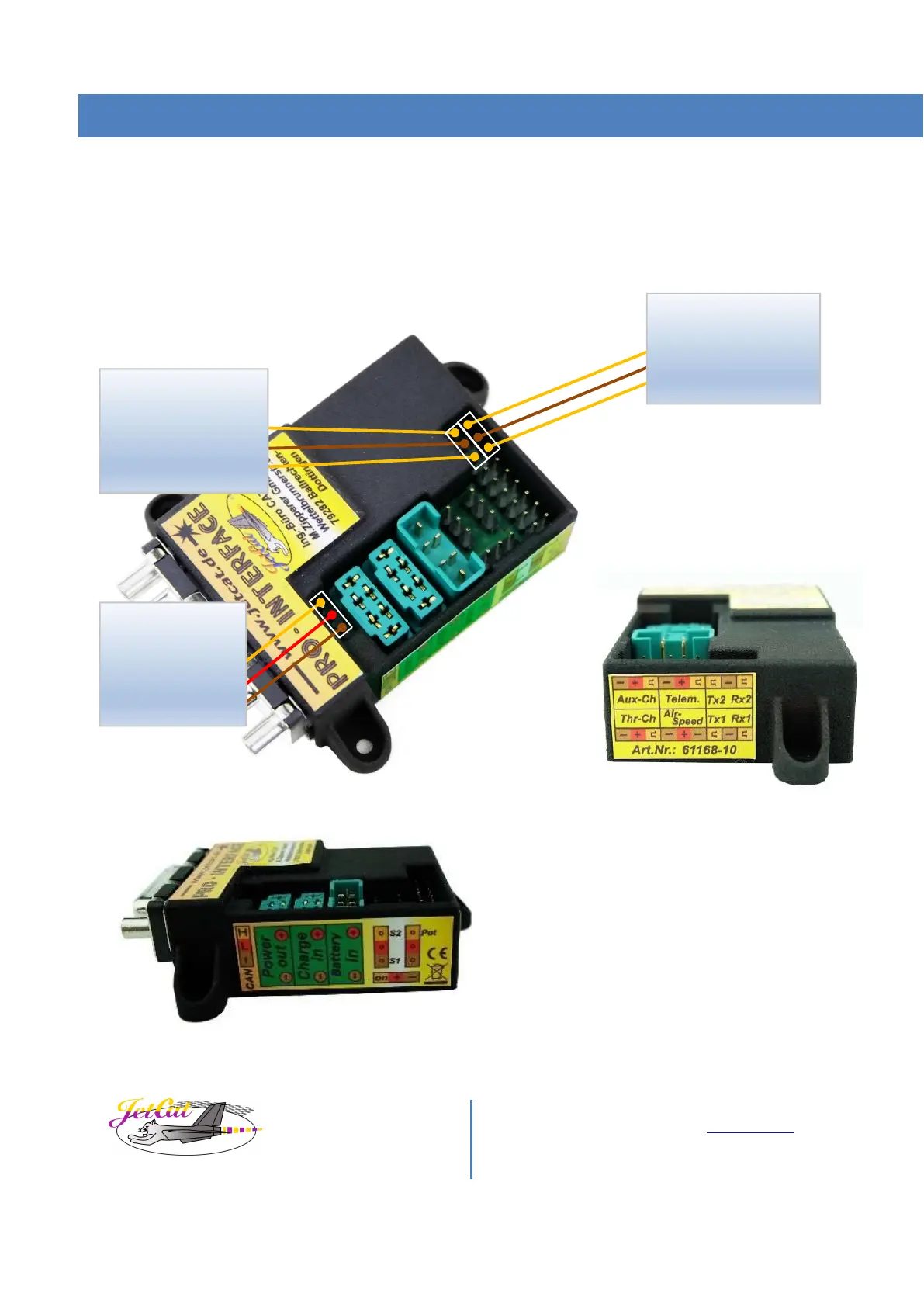

CAN-Bus connector
CAN-H
CAN-L
Ground -
Serial interface (COM1)
RX1
GND
TX1
Serial interface (COM2)
RX2
GND
TX2
