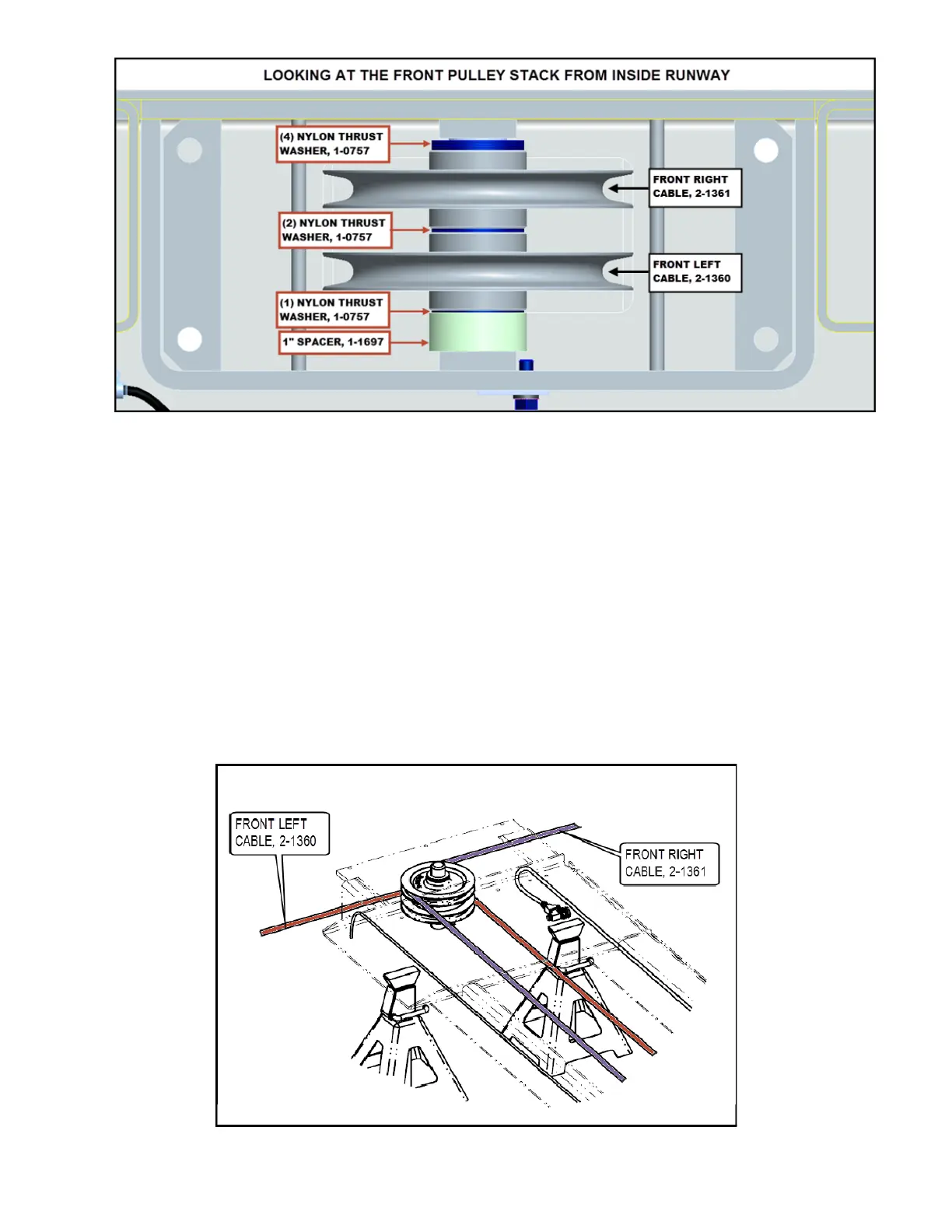

Figure 10. Front Pulley Stack Assembly
12. Remove the pulley pin and hardware from front of runway.
13. Referring to Figure 10 and Figure 11, assemble the pulley stack with cables as
shown.
 Assemble lower thrust washer and spacer. Insert pulley pin to hold these
in place. Leave 1" of the pulley pin exposed above thrust washer.
 Wrap the front left cable 2-1360 around pulley and insert onto pulley pin.
Push pulley pin further up to hold these in place.
 Install two more thrust washers.
 Wrap the front right cable 2-1361 around pulley and align with rest of
assembly. Push pulley pin further up to hold these in place.
 install four thrust washers and complete the installation of the pulley.
Secure with hardware.
Figure 11. Front Right and Rear Left Cable Installed at Front
