7.5 CABLE TO TOWER INSTALLATION
1. Assemble each cable to the top plate of their respective towers. Secure in place
with 7/8" washer and two 7/8" hex nuts. See Figure 17.
Note: During leveling of the lift (see Section 6.11), optional 1" and 2" spacers
have been included to allow for more adjustment.

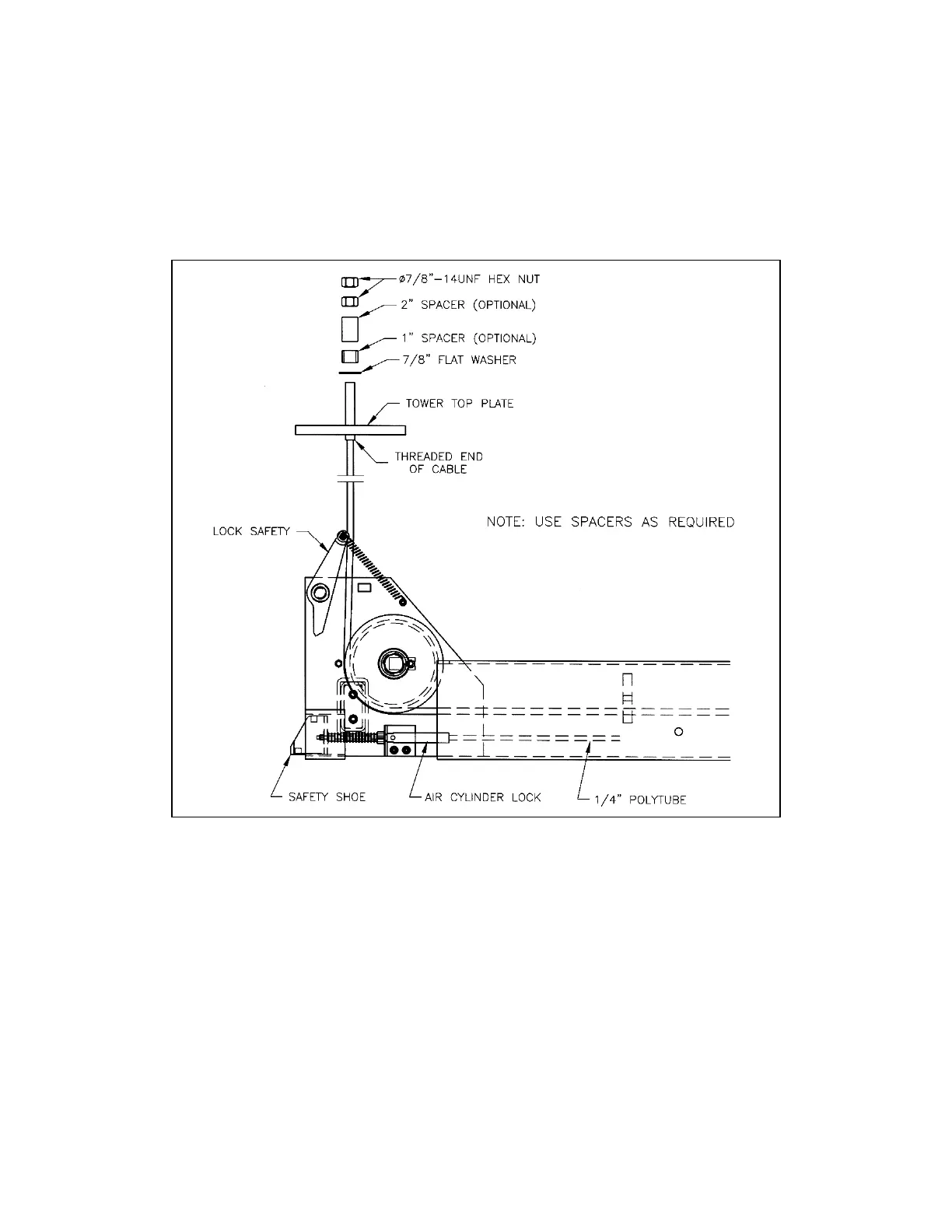

Figure 17. Cable routing diagram
