7.7 HYDRAULIC INSTALLATION
1. Locate the supply lines: 1/4" and 3/8" polytube (10ft.), 3/8" flexible hydraulic line
(16ft.), and install the hose guard to cover all three lines. All four items are found in
the accessory box
TIP: Tape one end of the hydraulic hose to the two polytubes and feed them through
the hose guard. Remove tape once conpleted.
2. Install Flow Control #6-1691 into powerpack. See Figure 18.
3. Feed the hose guard through the opening on the front left crossmember assembly.
4. Connect the end of the flexible hydraulic hose (3/8" JIC, F SWIVEL) to the fitting at
the cylinder. DO NOT OVER TIGHTEN. Use the two supplied zip ties to attached
the hose to the cylinder body.
5. Connect the other end of the flexible hydraulic hose (3/8" JIC, F SWIVEL) to the flow
control on the powerpack.

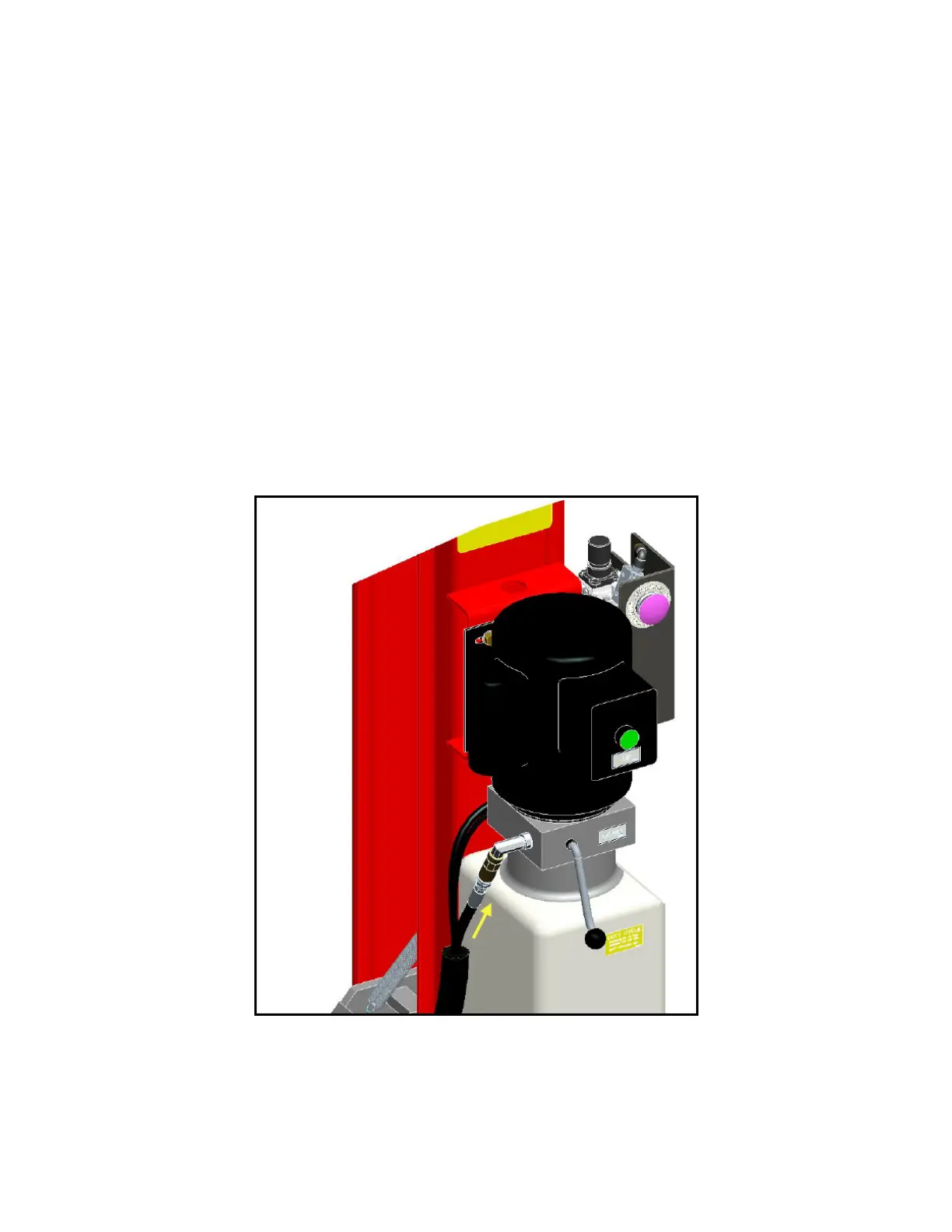

Figure 20. Powerpack Install
