7.6 POWER PACK INSTALLATION
NOTE: When working with hydraulic lines and valves, it is important to keep all
components clean and free of dirt.

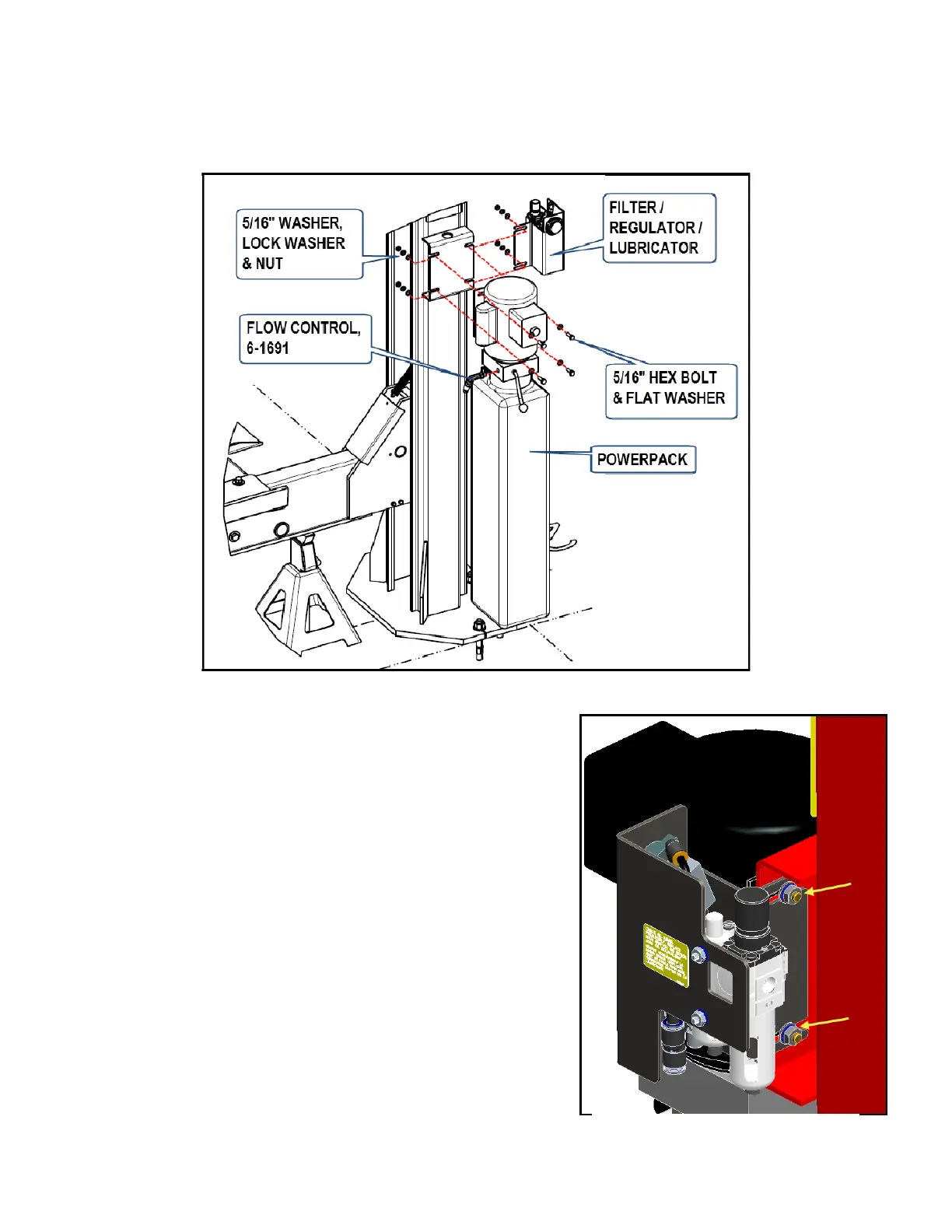

Figure 18. Powerpack Install
1. Locate Powerpack and
Filter/Regulator/Lubricator (FRL) assembly
inside the accessory box. Gather the 5/16"
hardware located in "Polybag D" inside the
hardware kit
2. Mount the power pack to the mounting bracket
on the front face of the left front post using the
5/16"-18UNC × 1"LG. hex head bolts and 5/16"
washers, lockwashers and hex head bolts.
3. Tighten up the hardware on the left side of the
powerpack and leave the right side hardware
loose.
4. Slide the FRL between the inside of the
mounting bracket and the inside flat washers.
Tighten all hardware.
Figure 19. FRL Install
To Next Page
