Figure 23. Air Connections
NOTE: For those units equipped with jacking beams, this is the appropriate time to
install them. Consult the jacking beam instruction manual found in each jacking beam
box.
6. Hook up an air supply to the inlet of the FRL. (Note: customer to supply this fitting)
7.9 ELECTRICAL CONNECTIONS
CAUTION: ALL ELECTRICAL CONNECTIONS SHOULD BE MADE BY A
LICENCED ELECTRICIAN.
Refer to Figure 24, Electrical Diagram for electrical connections.
Electrical Breaker Size Recommendation: 20Amps

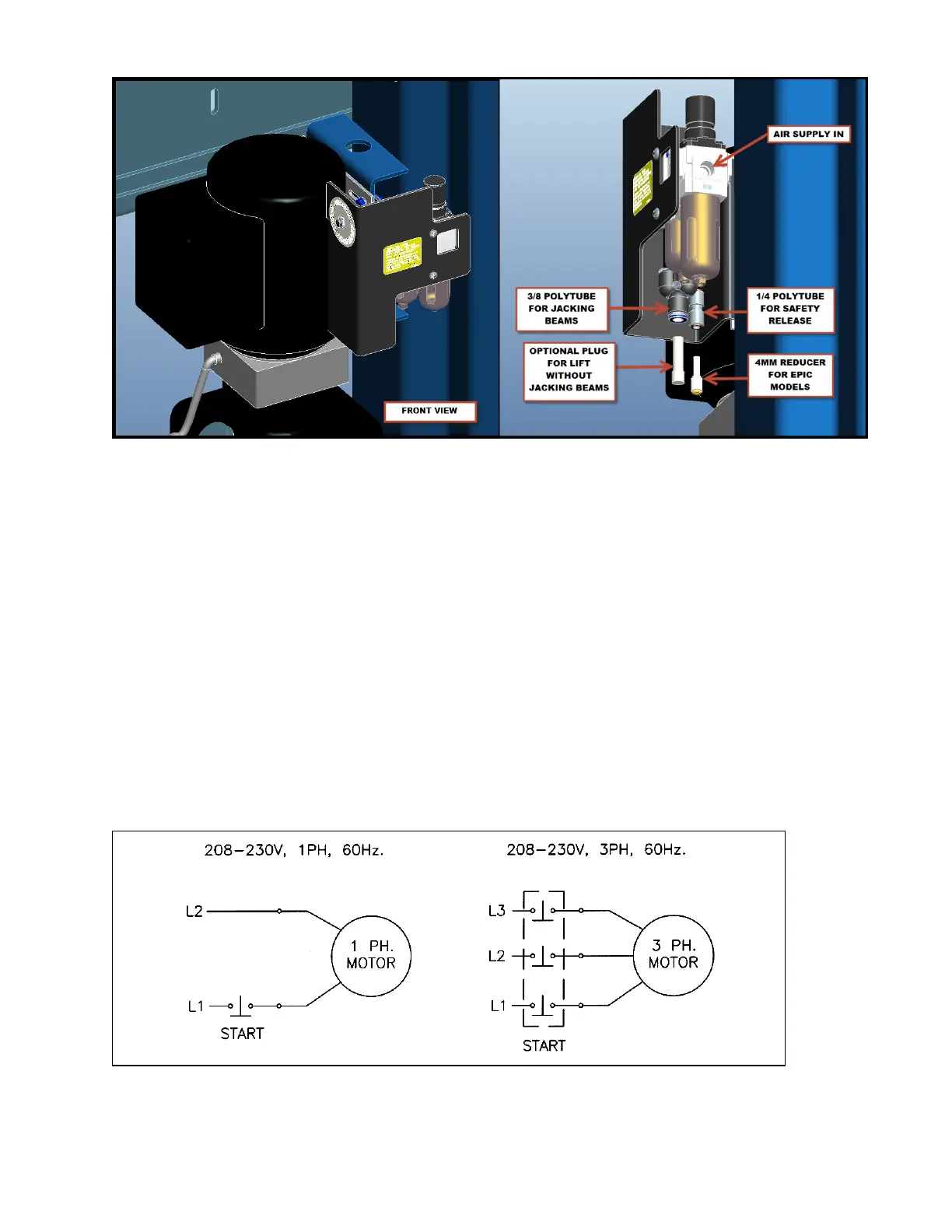

Figure 24. Electrical diagram for 230V/1 ph
