7.10 FILTER/REGULATOR/LUBRICATOR COMMISIONNING
PROCEDURE FOR PREPARING FRL FOR USE WITH LIFT

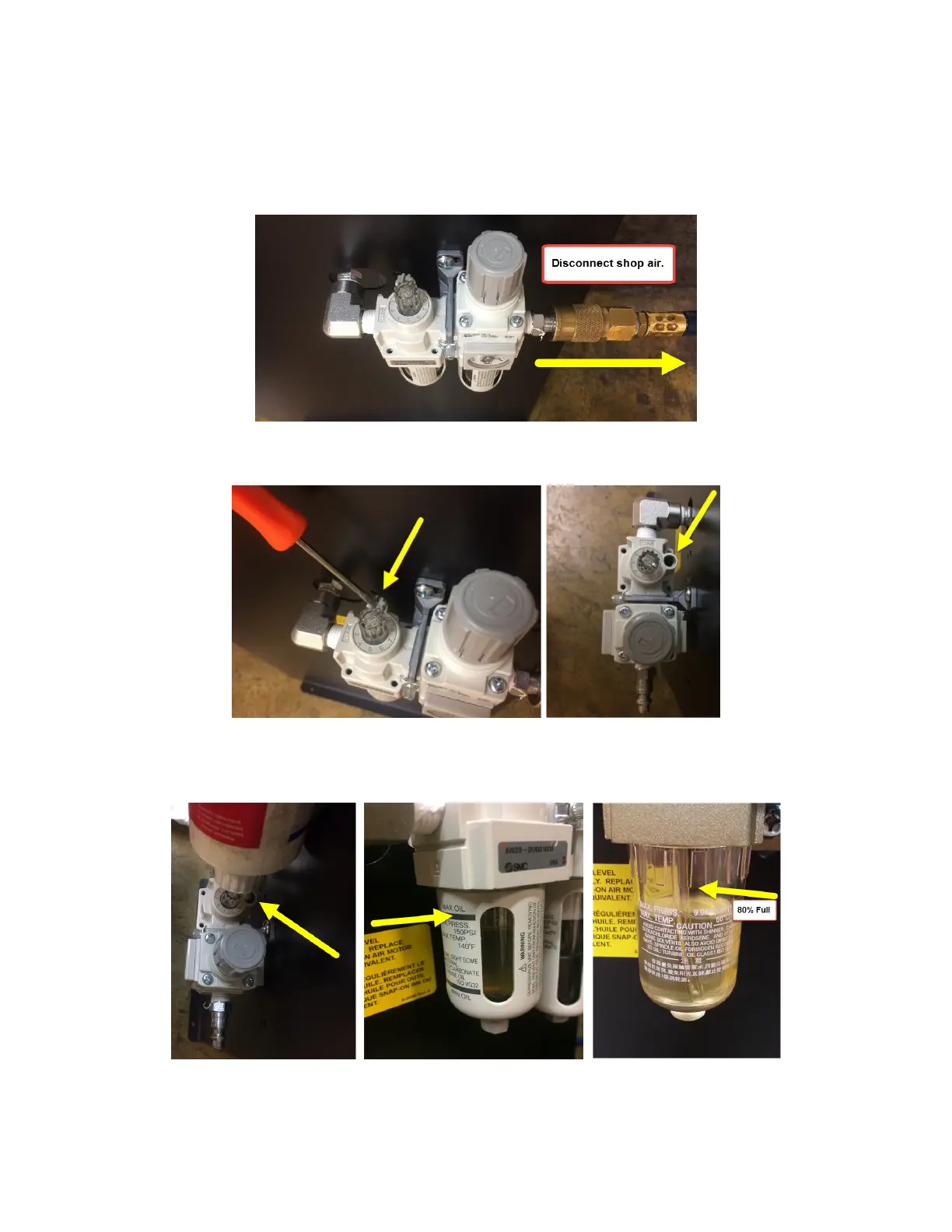

1. Disconnect shop air from FRL inlet. Adding Oil to the lubricator cannot take place
under a pressurized condition.
2. Using a slotted screwdriver or an Allen key, remove the filler cap from the top of the
FRL.
3. Fill FRL using Snap-on AirOil #IM6 or equivalent. Oil to be filled to the MAX line
marked on reservoir. If unit does not have MAX line mark, reservoir should be 80%
full.
4. Replace filler cap to top of FRL.
