7.14 ACCESSORY INSTALLATION
1. Install the front wheel stops using the 1/2"-13 UNC × 1"LG hex bolts, 1/2" lock
washers and flat washers found in polybag “F” (Wheelstops/Ramps).

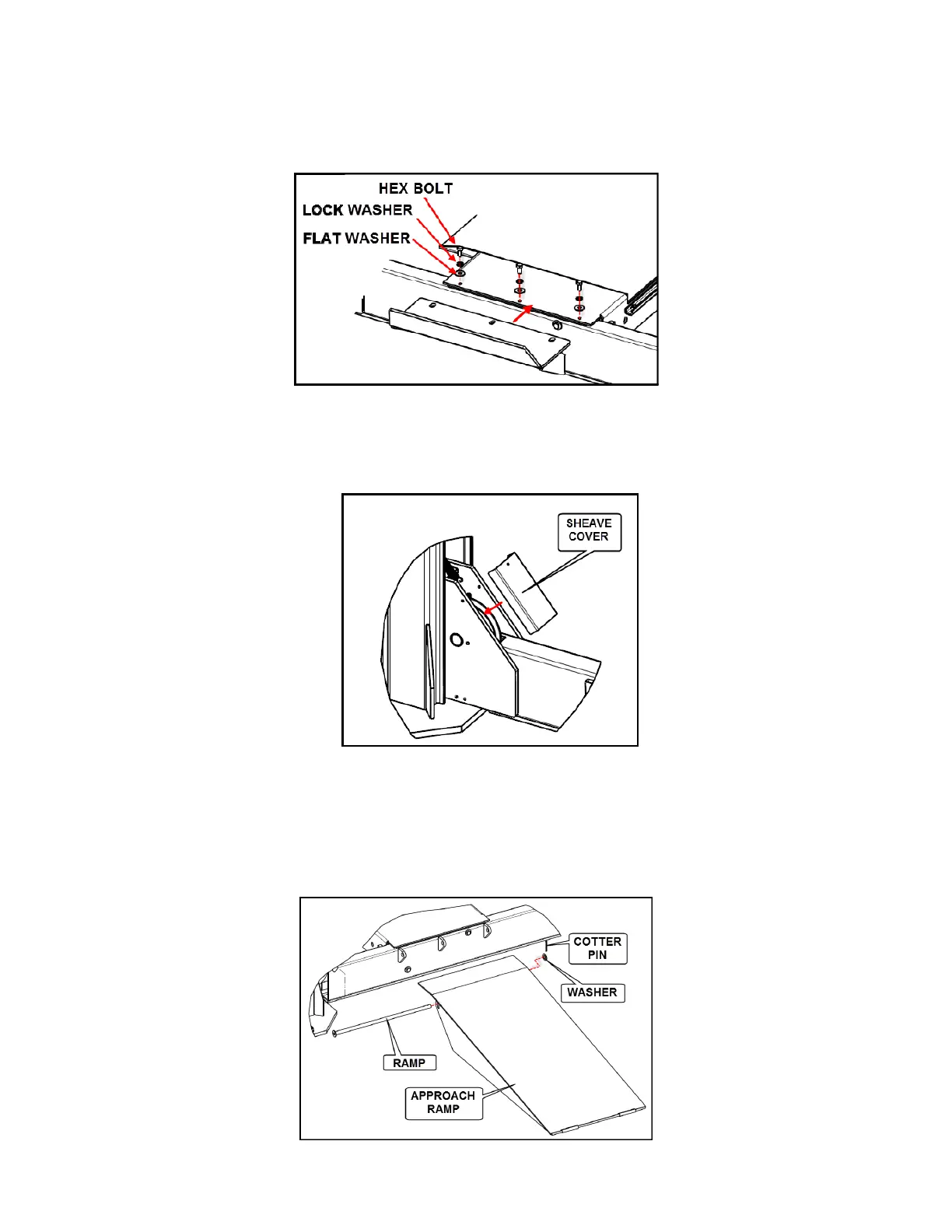

Figure 31: Front Wheelstops
2. Install the (4) sheave covers over the sheaves in the crossmember assembly.
These are found in the accessory box.
Figure 32: Sheave Cover
3. Install the approach ramps using the ramp pins, 1/8” x 2”LG cotter pins, 1/2”
washers, and approach ramps provided. The ramps and ramp pins are located in
the accessory box, the cotter pins and washers are found in polybag “E” (Misc.).
Ensure the proper operation of the ramps.
Figure 33:
Approach Ramp
Install
