John Bean ALIGNMENT 44218Q - INSTALLATION INSTRUCTIONS; ASSEMBLY OF CABLES TO LEFT SIDE DECK

17 of 76
2. Locate and identify the coiled cables as follows, place close to the rear of the left
side of the chalk outlines. (Table 2):
Cable P/N Location Length
2-1360 Front Left 407.5"
2-1361 Front Right 473.5"
2-1362 Rear Left 162"
2-1363 Rear Right 228"
7.0 INSTALLATION INSTRUCTIONS
7.1 ASSEMBLY OF CABLES TO LEFT SIDE DECK
1. Place the left deck assembly so that the inside edge lies along chalk line “B”.
2. Place the right deck assembly so that the inside edge lies along chalk line “C”.
3. Position both decks so that the front edge lies along chalk line “2”.
4. Using a floor jack or engine hoist, lift the left side runway and support with (4)
jack stands (see Figure 5) or other means of support. Use the floor jack or
engine hoist as addition support.
5. If possible, repeat for right side deck.

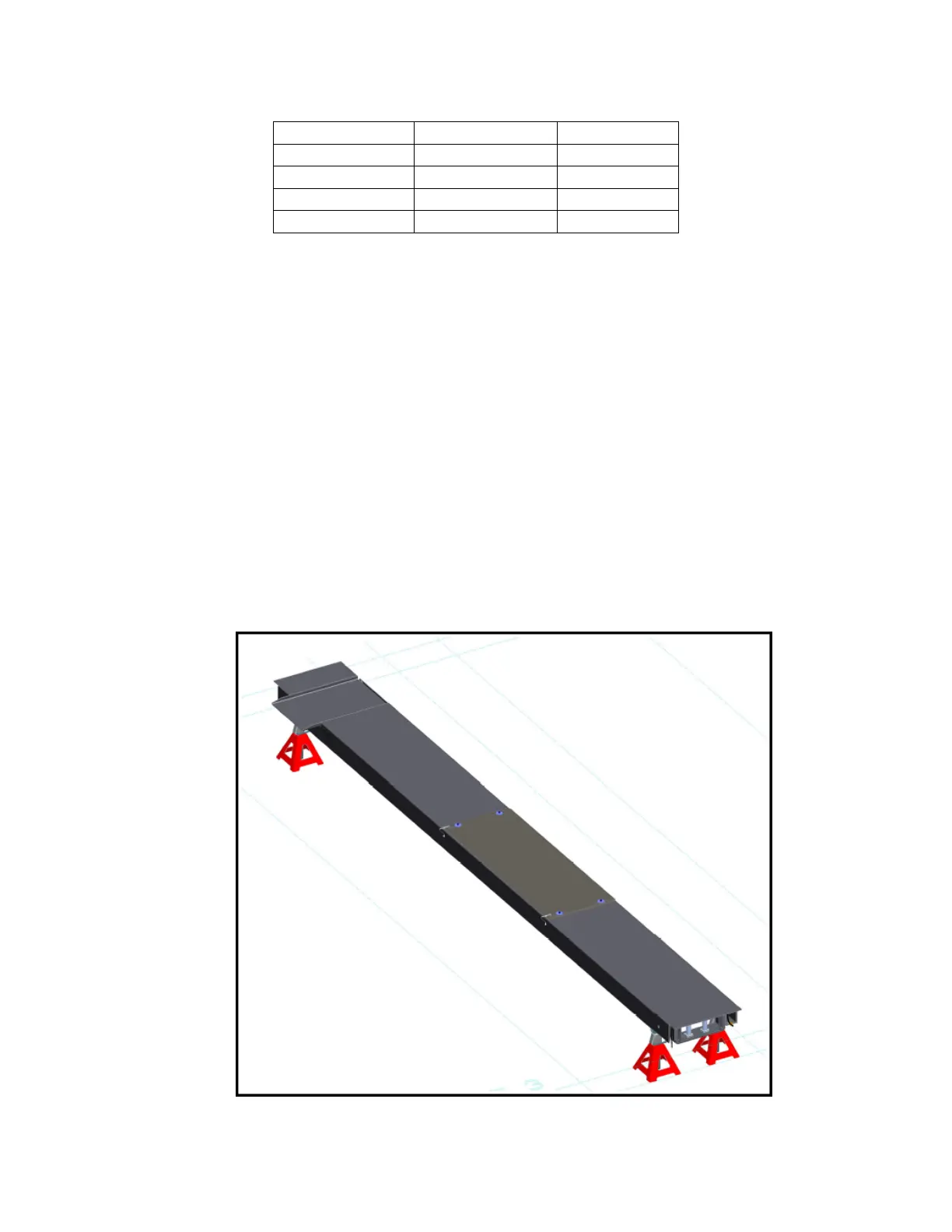

Figure 5: LS Deck Support
Table 2: Cable
Identification
