Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
152/168
008831 en 2020.10
Transport instructions
14.2 Transport data
Weight and dimensions
When dispatched, the unit is placed on a wooden frame and covered by plastic film. The wooden
frame is adjusted to the size of the unit.
For dimensions, see Table 15 in subsection 6.1 Data for compressor units.
For compressor weight, see Table 21 in subsection 6.2 Other data.
14.3 Personnel requirements
Personnel who will be handling the unit during loading, transport and unloading must have taken
the necessary courses in crane operation.
14.4 Handling of compressor and unit
The compressor is equipped with a threaded hole for mounting of the lifting eye. For compressor
weight, see Table 21: Compressor weight (without coupling).

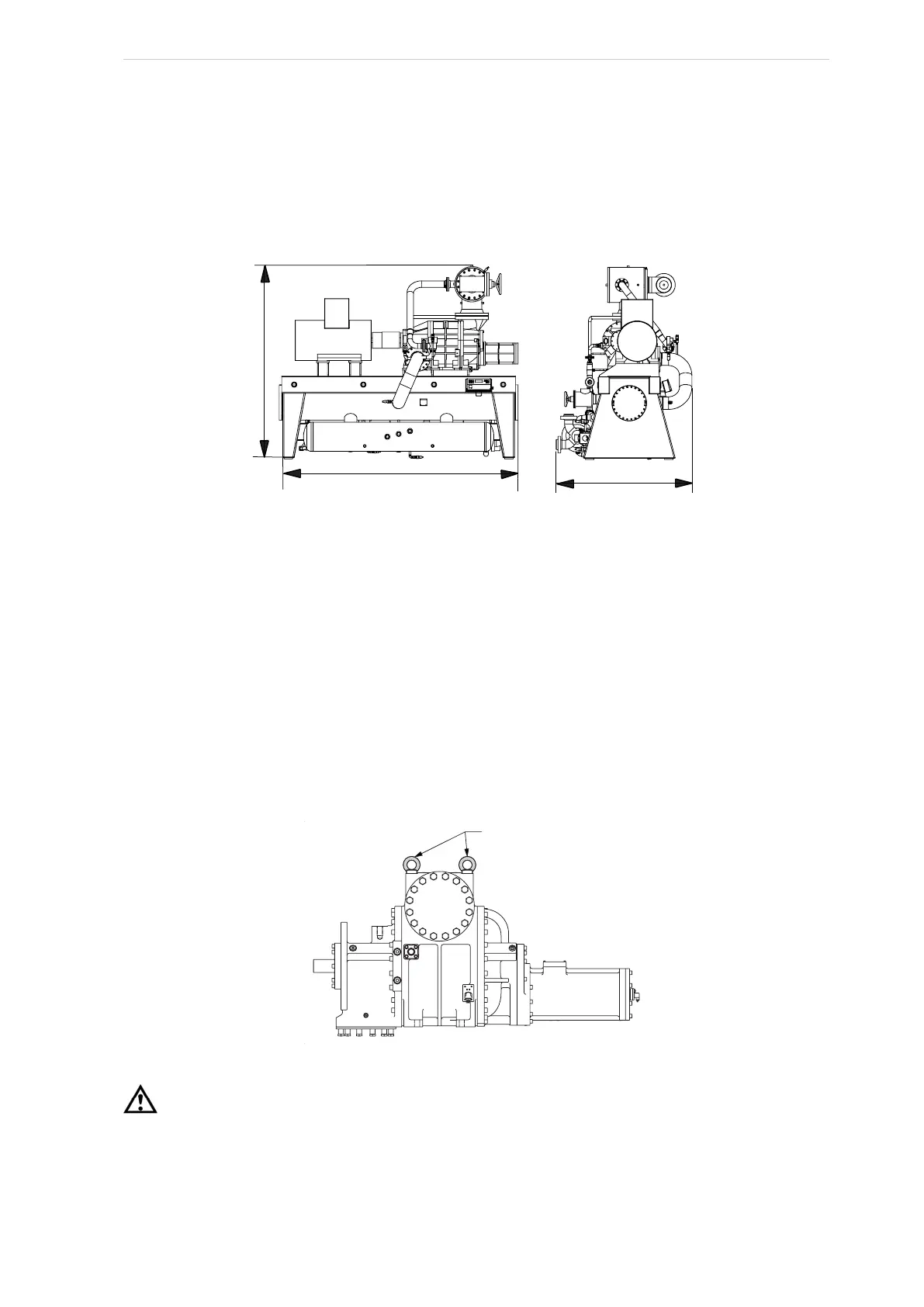

Fig. 88: Lifting rings, SAB 193
Warning!
Only the compressor block alone must be lifted in the lifting eye. The same applies to the motor.
The unit is lifted by using the lifting devices delivered with the unit, see Fig. 89.
