Signs and warnings
2.6 Vessel name plate

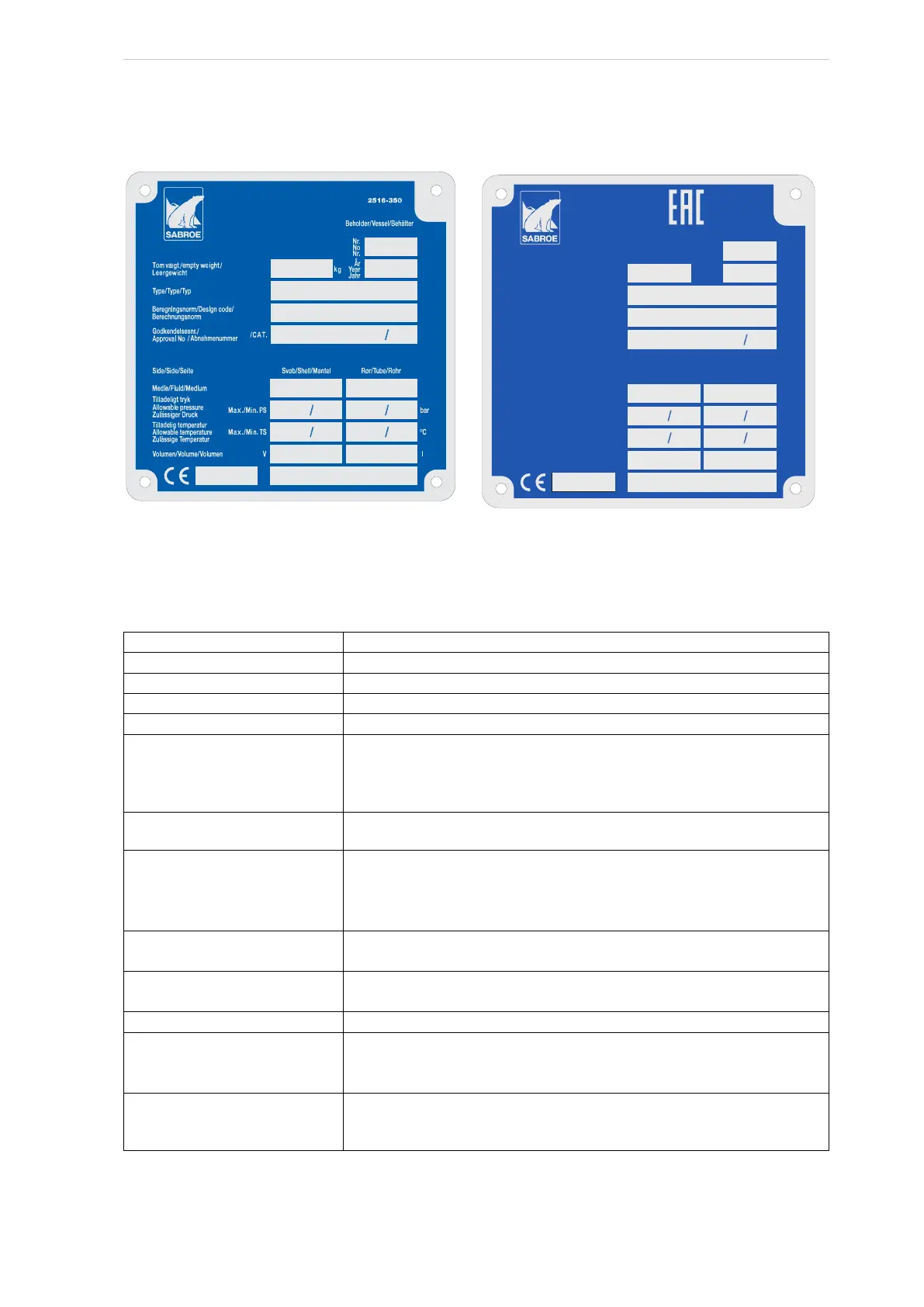

Fig. 4: Name plate for vessel
Пpoeкт пo cтaндapтy
Design code
Утвepждeн пoд N °
Approval No
Oбъeм /Volume
Cpeдa /Fluid
Тип /Type
PS
TS
V
M асса пустого cocy д a
Empty weight
/ Кат .
/Cat.
Nº cocy д a
Vessel No
год
2516-331
кг
Cтopoнa oбeчaйки
Shell side Tube side
Cтopoнa тpyбок
п
l
MПа
MPa
°C
P a б o ч ee двп e ни e Макс ./ Мин .
Allowable pressure Max./Min.
P aбoчaя тeмпepaтypa Макс ./ Мин .
Allowable temperature Max./Min.
Kg
Year
Johnson Controls Denmark ApS
Christian X's Vej 201
8270 Højbjerg, Denmark
www.sabroe.com
Fig. 5: Name plate for vessel with EurAsian Conformity
mark (EAC)
The pressure vessel name plate is positioned on the shell of the vessel and contains this
information:
Vessel no.
Identification no. (serial no.)
Empty weight The empty weight of the vessel in kg.
Year
Year of manufacturing.
Type
Manufacturer's type designation.
Design code Design code used for the pressure vessel.
Approval no./CAT
The approval no. of the vessel issued by the relevant 3rd party/
notified body.
For EC PED approval: CAT (Category 1, 2, 3 or 4) according to the
PED directive.
Side
For heat exchangers only. Refers to the columns ‘Shell side’ and
‘Tube side’.
Fluid
Designation of the primary refrigerant(s) and the secondary re-
frigerant(s).
For EC PED approval: Designation of the refrigerant(s) and/or the
highest fluid group (Group 1 or 2) according to the PED directive.
Allowable pressure, PS
The min. and max. pressures (pressure relative to atmospheric
pressure) that the vessel or vessel part has been designed for.
Allowable temperature,
TS
The min. and max. temperatures that the vessel or vessel part has
been designed for.
Volume
The volume of the vessel or vessel part.
CE xxxx
The CE mark appears on the name plate for EC PED approval.
The four digits make up the registration no. of the notified body/
3rd party in charge.
EAC
The EurAsian Conformity mark (EAC) indicates that the vessel is
in compliance with all relevant technical regulations of the Eura-
sian Customs Union.
Note: Depending on the supplier of the pressure vessel/heat exchanger, the layout and content
of the vessel name plate may differ from the Sabroe name plate above.
