Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
82/168
008831 en 2020.10
Physical and connection data

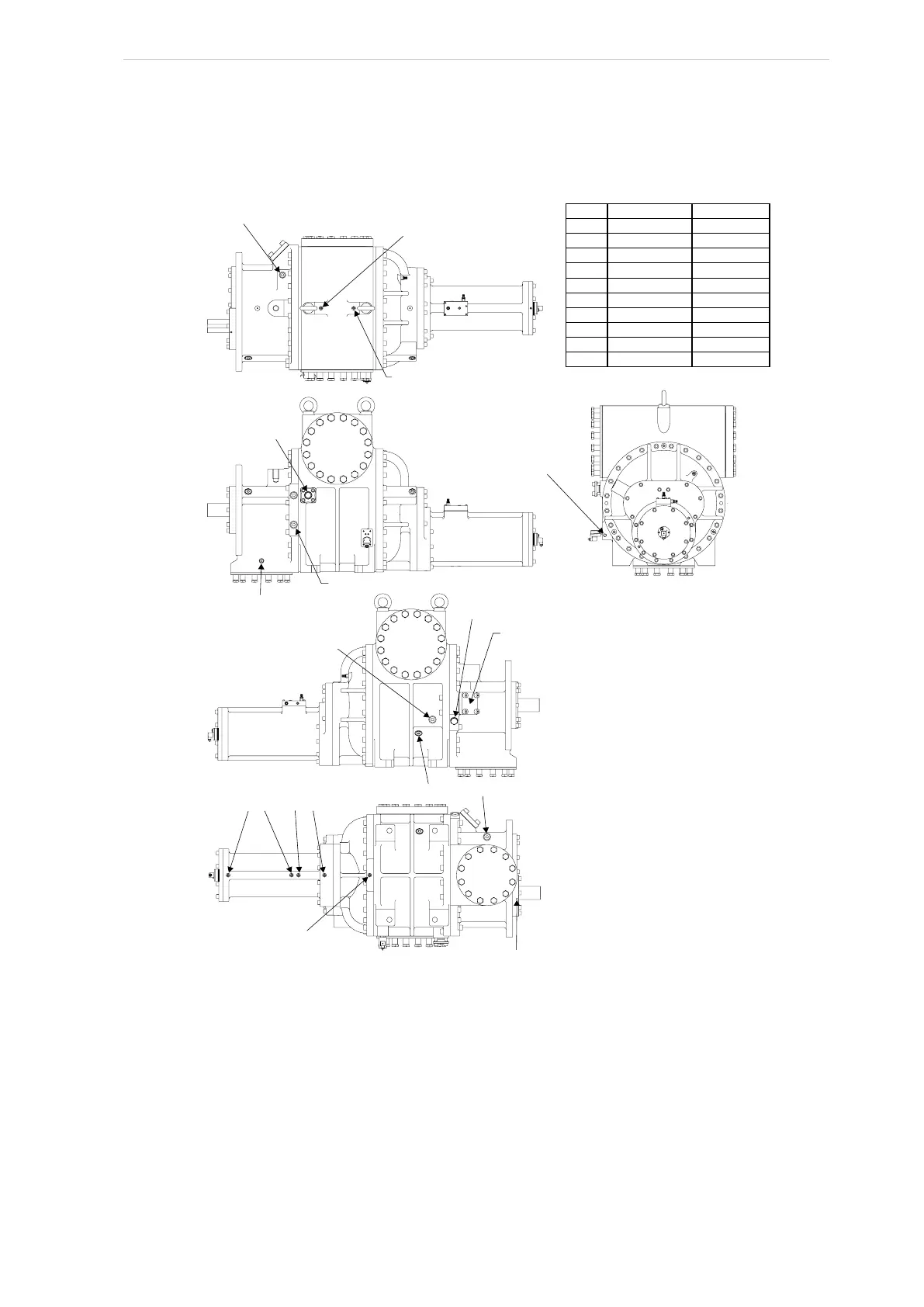

Fig. 60: Compressor port locations, SAB 283 S, L
PORTTHREAD SIZEO-RING
SC-53/4-16 UNF-2B980A0012K62
SC-69/16-18 UNF-2B980A0012K60
SC-8
1⁵⁄₁₆-12 UN-2B
980A0012K69
SC-99/16-18 UNF-2B980A0012K60
SC-139/16-18 UNF-2B980A0012K60
SC-149/16-18 UNF-2B980A0012K60
SD-1
1¹⁄₁₆-12 UN-2B
980A0012K66
SL-1
1⁵⁄₁₆-12 UN-2B
980A0012K69
SL-2
1⁵⁄₁₆-12 UN-2B
980A0012K69
SM-1
1⁵⁄₁₆-12 UN-2B
980A0012K69
SC-6: DISCHARGE PRESSURE
SM-1: MAIN OIL INJECTION
SV-1: VAPOR INJECTION
SL-1: LOW Vi LIQUID INJECTION
SC-8: CLOSED THREAD DRAIN
SC-7: SEAL WEAPAGE
SC-9: INLET HOUSING DRAIN
SC-13:
OIL DR
AIN - CYCLINDER
SL-2: HIGH Vi LIQUID INJECTION
SB-3: COMPRESSOR
OIL SUPPL
Y
SE-1: ELECTRICAL
C
ONNECTOR
SC-5: INLET PRESSURE
SC-14: LIQUID INJECTION BLEED
SD-1: COALESCER BLEED
COMPRESSOR PORT LOCATIONS - SAB 283 S, L (SGC 2813 AND 2817)
