Johnson Controls IFI-WS User Manual

Graphics Display Screen Operation
55IFI-WS Installation and Operation Manual – P/N LS10050-000JC-E:A 12/11/2014
5.3.2 Navigation Tree
The navigation tree displays the Intelligent Fire Integrator system in a structured hierarchy form. Table 5.4 describes
navigation tree features.

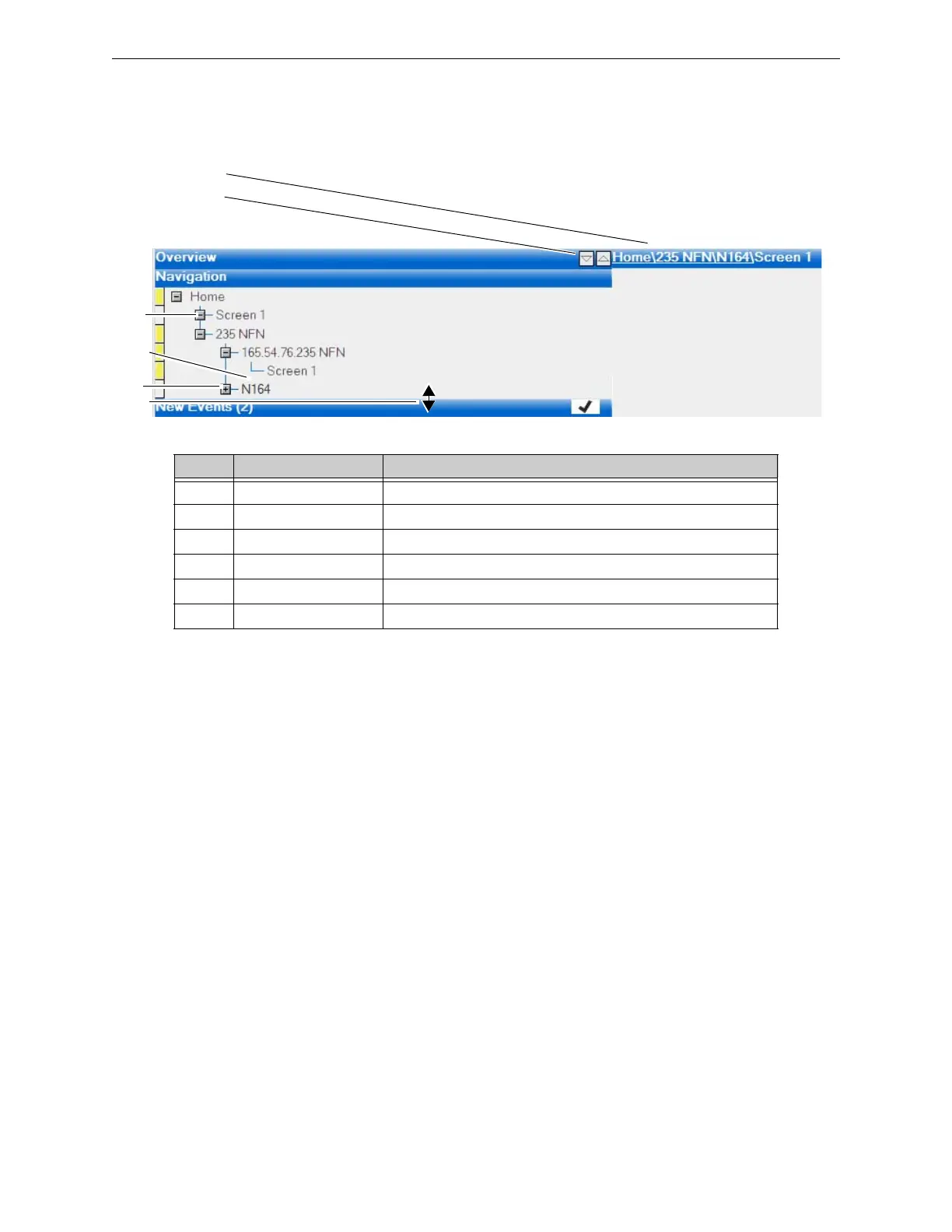

Figure 5.4 Navigation Tree Overview
Item Feature Description
1Window Title Describes the hierarchy levels displayed in the floor plan window.
2Expand/Contract ButtonsClick to expand
Vand collapse U the pane.
3Level Indicator Box Click “–” to collapse the level and its child screens.
4Node Label Double click to display the nodes devices location on the floor plan.
5Level Indicator Box Click “
+” to expand the level and view its child screens.
6Pane Boundary Click, hold, and drag to change the pane size.
5
1
3
2
4
6
