2.2 Connections
2.2.1 Component Connections
A list of connections and their use can be found in Table 2.2. The locations of the connections are shown in
Figure 2.1.

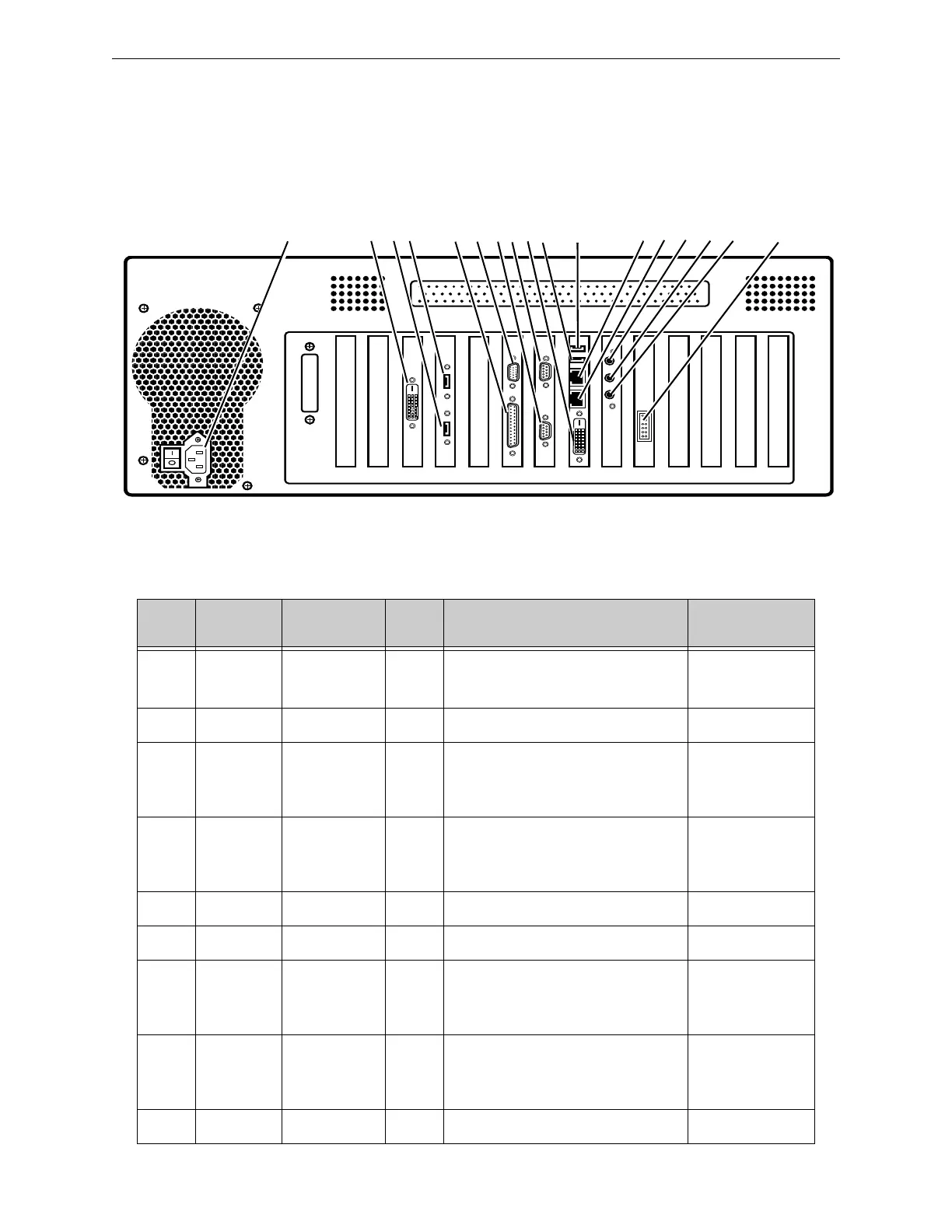

Figure 2.1 Computer Component Connections
4
1
23
5678910
11 12 13
14 15 16
17
Table 2.2 Connection Specifications
Item
Reference
Designator
Description
Circuit
Class
Specifications Connection
1PowerAC Power for
Computer
•Voltage 120 VAC, 60 Hz
•Current: 0.6 – 0.8 amps during normal
operation
2DVI 1 DVI Video
3USB 3 USB 3.0
Type A
Connector
2
•Line impedance 90±15%
•Max distance 40 meters
•Power limited
•Supervised
4USB 2 USB 3.0
Type A
Connector
2
•Line impedance 90±15%
•Max distance 40 meters
•Power limited
•Supervised
5LPTPrinter Port Not Used
6VGA VGA Video
7Com 2 RS-232 2
•Line impedance 5K ohm
•Max distance 50 ft
•Connection is power limited
•Connection is supervised
8Com1 RS-232 2
•Line impedance 5K ohm
•Max distance 50 ft
•Connection is power limited
•Connection is supervised
9DVI 0 DVI Video Display
