Hardware Configuration Connections
22 IFI-WS Installation and Operation Manual – P/N LS10050-000JC-E:A 12/11/2014
2.2.2 Network (LAN) Connection
Make one of the following connections as applicable:
Use this connection for an IFI-WS that will use Ethernet for communications.

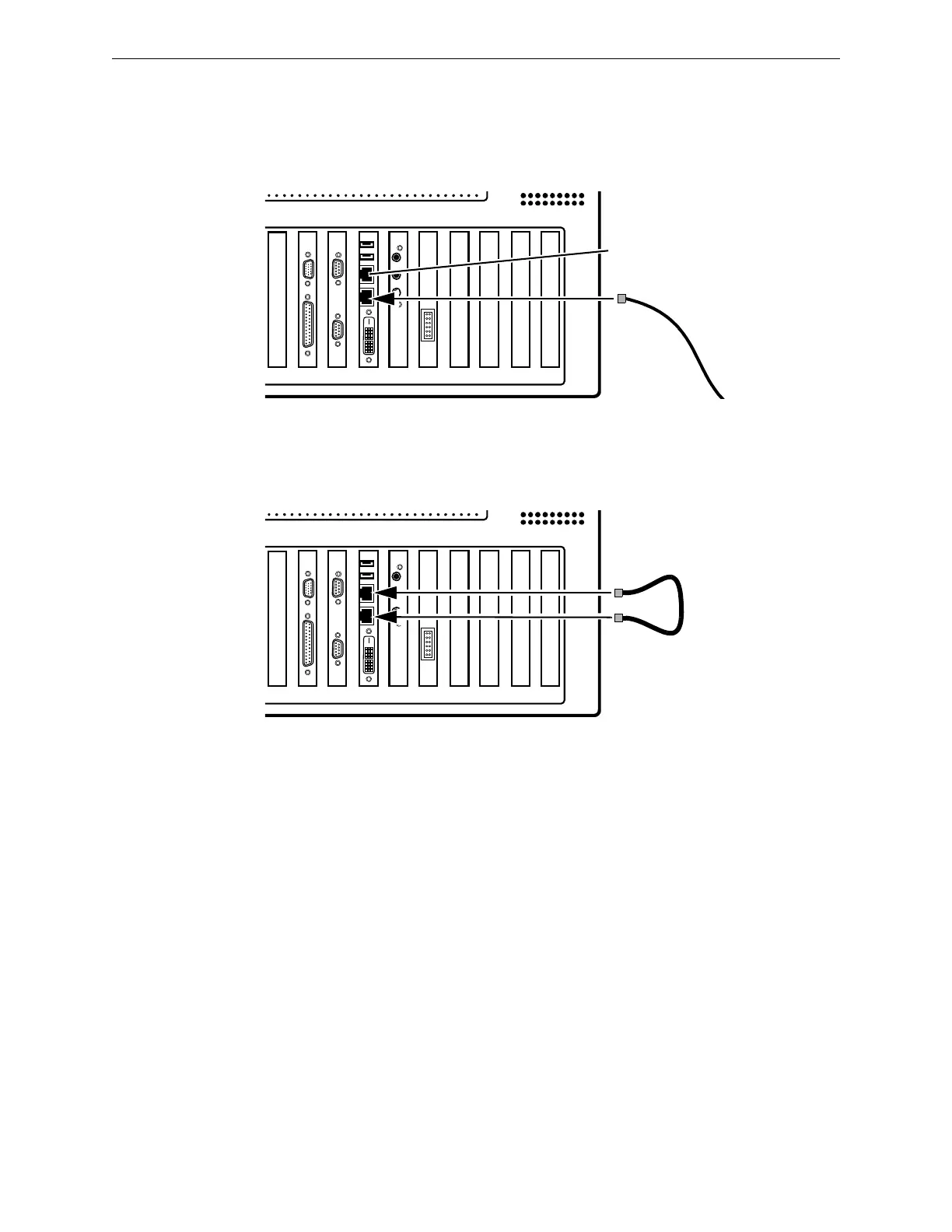

Figure 2.2 LAN Connection
For an IFI-WS that will not be using Ethernet for communications, a single Ethernet patch cable must be
plugged in both RJ45 ports to create a loop-back between the Ethernet ports.
Figure 2.3 Stand-alone IFI-WS
Not Used In This
Configuration
Ethernet
Cable
Ethernet Patch
Cable
