Types of Mounting
1–4 iSTAR Ultra Installation and Configuration Guide
Types of Mounting
The iSTAR Ultra and its components can be installed in a wall mount enclosure or in separate
rack mount enclosures.
Wall Mount Enclosure

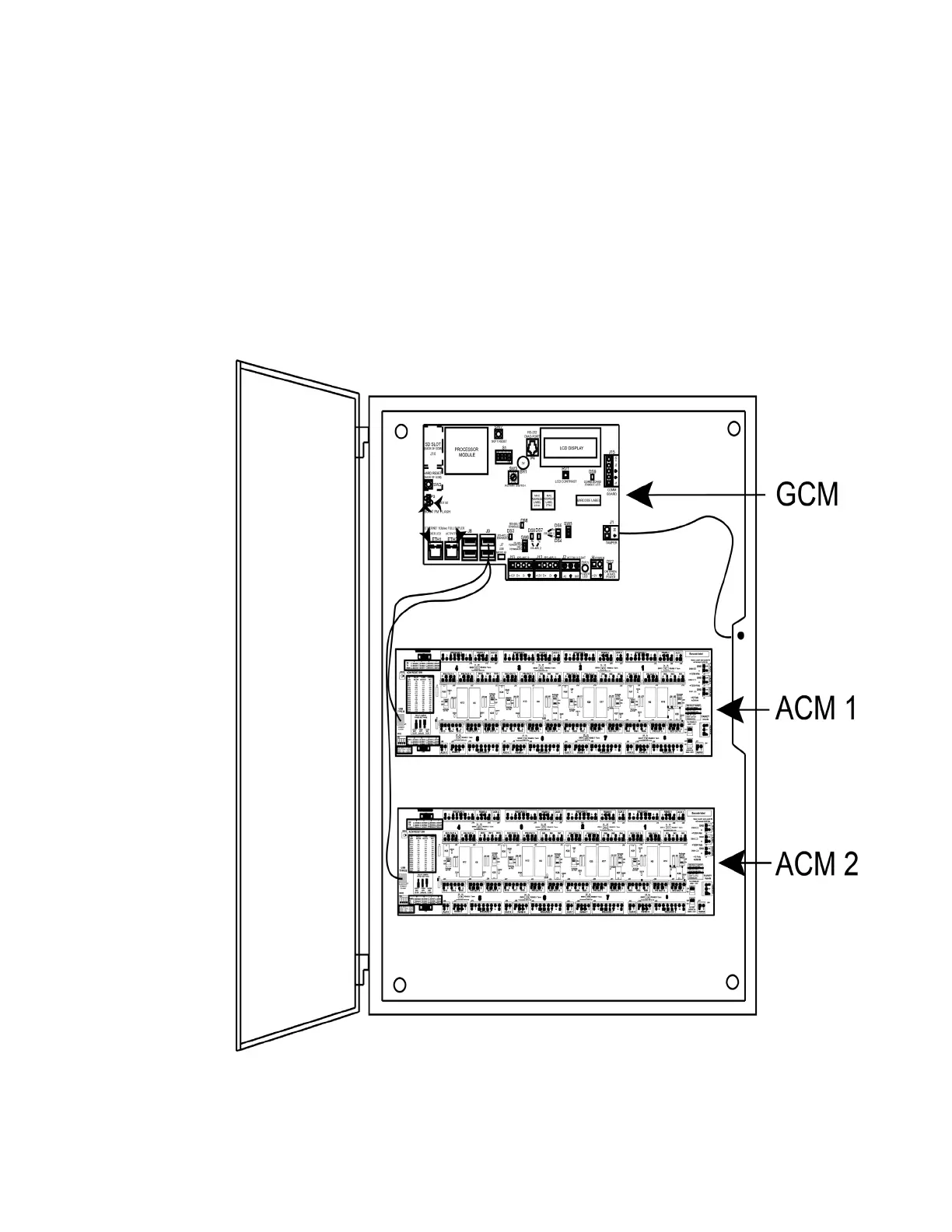

Figure 1-1 on page 1-4 shows a photograph of the iSTAR Ultra and two ACMs in a wall mount
enclosure.
Figure 1-1: Wall Mount Enclosure
