JOHNSON CONTROLS
12
FORM 160.75-N1
ISSUE DATE: 04/15/2019
SECTION 1 - INTRODUCTION

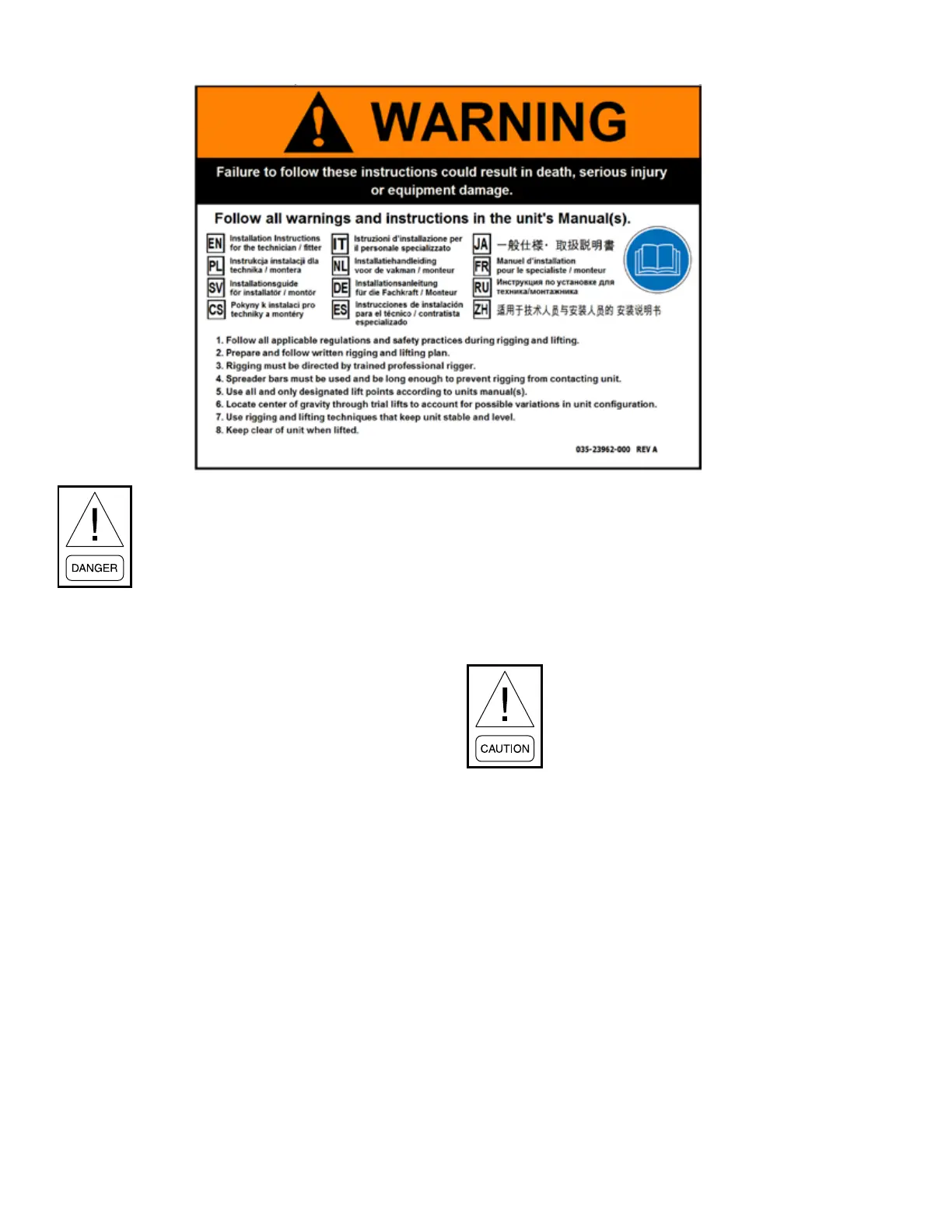

Rigging and lifting should only be done by a professional rigger in accordance with a written rig-
ging and lifting plan. The most appropriate rigging and lifting method will depend on job specic
factors, such as the rigging equipment available and site needs. Therefore, a professional rigger
must determine the rigging and lifting method to be used, and it is beyond the scope of this manual
to specify rigging and lifting details.
LD19197
RIGGING
The complete standard chiller is shipped without skids.
(When optional skids are used it may be necessary to
remove the skids so riggers skates can be used under
the unit end sheets to reduce overall height.)
Each unit has four (4) lifting holes (two in each end)
in the end sheets which should be used to lift the unit.
Care should be taken at all times during rigging and
handling of the chiller to avoid damage to the unit and
its external connections. Lift only using holes shown in
Figure 4 on page 13.
Do not lift the unit with slings around
motor/compressor assembly or by means
of eyebolts in the tapped holes of the
compressor motor assembly. Do not turn
a unit on its side for rigging. Do not rig
vertically.
The rigging and operating weights and overall dimen-
sions are given on page 25 through page 46 as a
guide in determining the clearances required for rig-
ging. Add 6" (15 cm) to overall height for optional
skidded unit.
