SECTION 1 - INTRODUCTION
ALL DIMENSIONS ARE IN INCHES (MM)

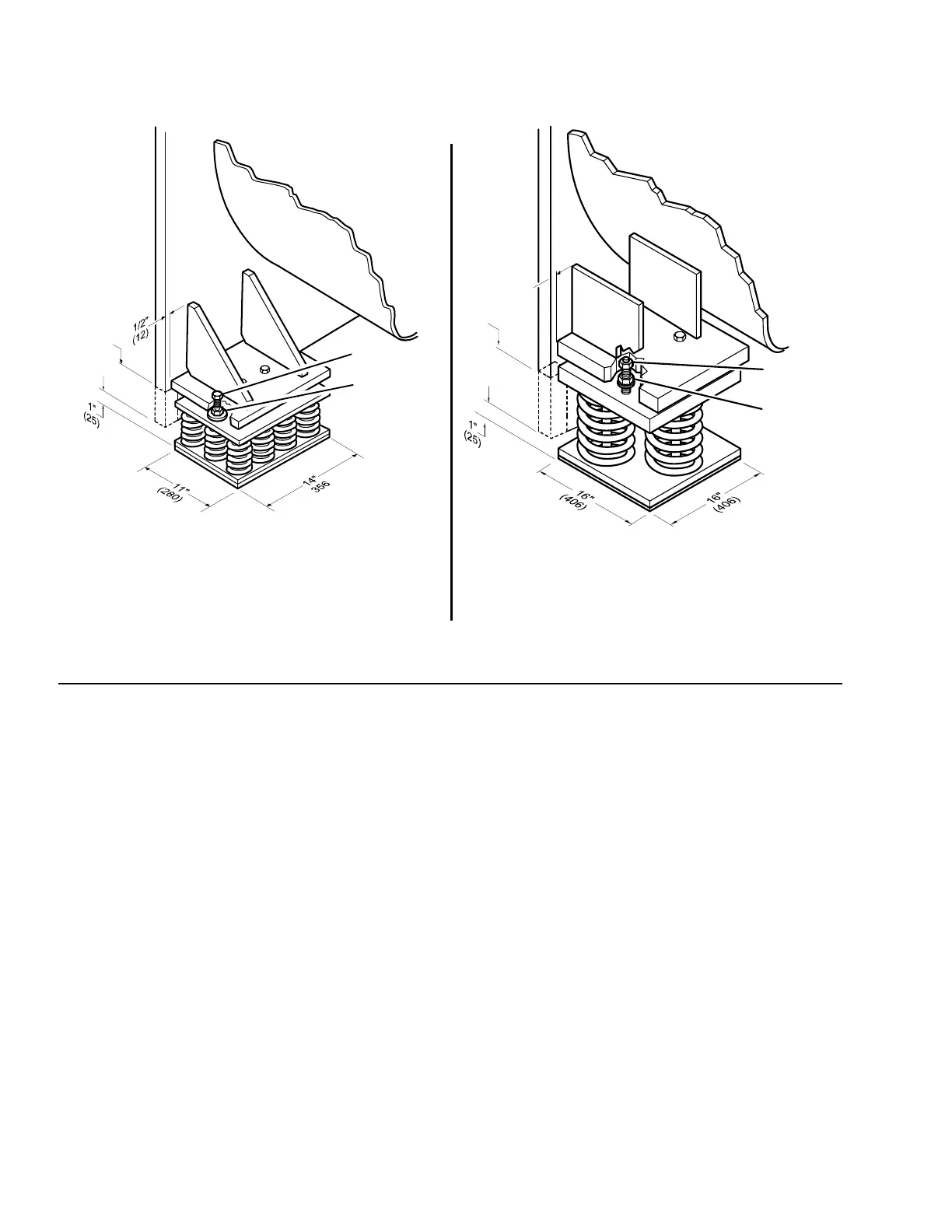

FIGURE 7 - SPRING ISOLATORS
UNIT WEIGHT
89,341 Lbs UP TO 115,000 Lbs
(40,526 Kgs UP TO 52,163 Kgs)
SHELL
12-SPRING ISOLATORS
END
SHEET
CAP
SCREW
ADJUSTING
BOLT
6-1/4"
(159)
LD19580
UNIT WEIGHT
115,000 Lbs. UP TO 190,000 Lbs
(52,163 Kgs UP TO 86,183 Kgs)
SHELL
3-SPRING ISOLATORS
END
SHEET
CAP
SCREW
ADJUSTING
BOLT
16 1/4"
(413)
5 1/4"
(133)
LD19581
