SECTION 2 - INSTALLATION
NOTES:
1. All dimensions are approximate.
2. For compact waterboxes (shown above), determine overall unit length by adding waterbox depth to tube sheet length.
3. Water nozzles can be located on either end of unit. Add 13 mm (1/2 inch) to nozzle length for anges connections.
4. To determine overall height, add 22 mm (7/8 inch) for isolators.
5. Use of motors with motor hoods may increase overall unit dimensions.

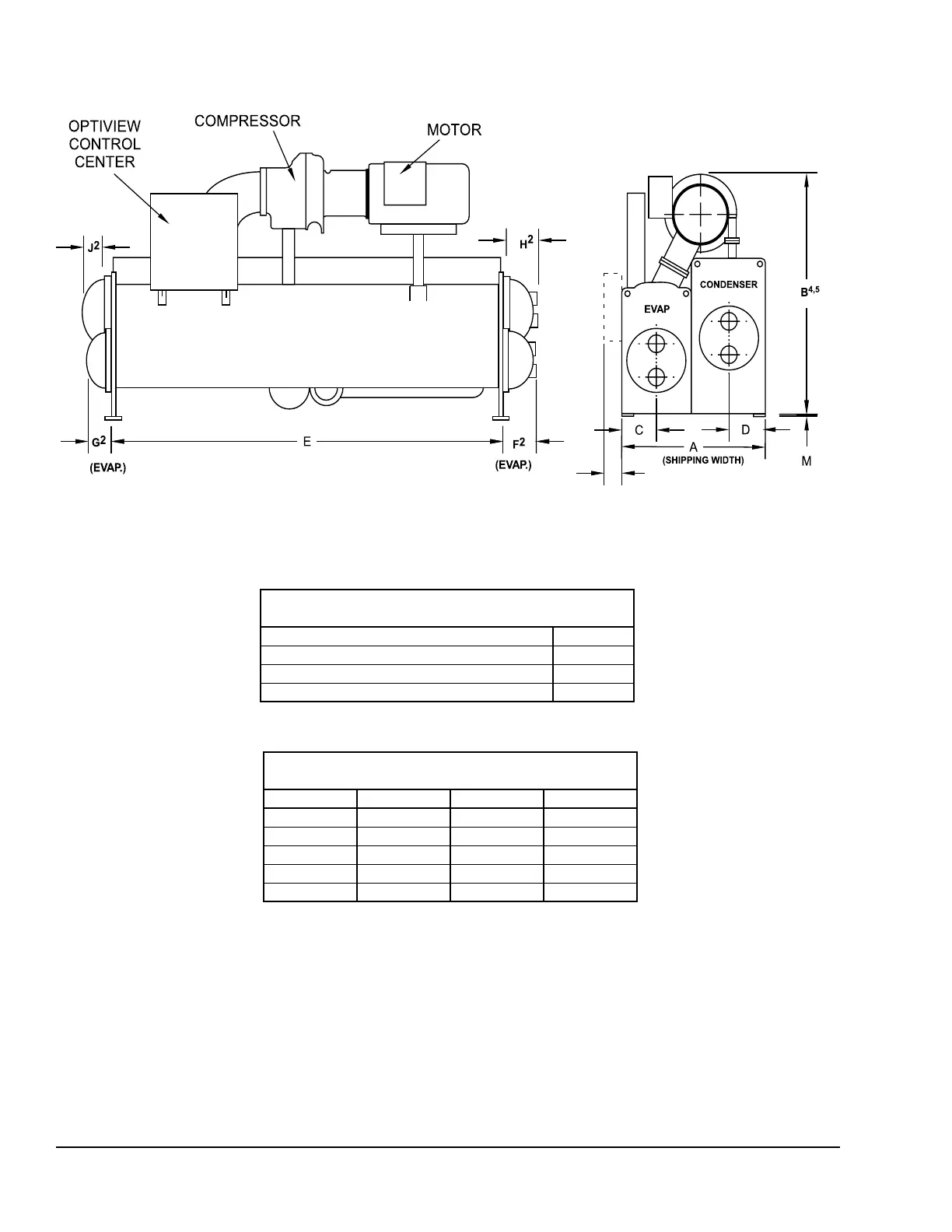

FIGURE 15 - DIMENSIONS – H COMPRESSOR UNITS (MM)
H COMPRESSOR UNITS (METRIC)
ADDITIONAL OPERATING HEIGHT CLEARANCE
Type of Chiller Mounting M
Neoprene Pad Isolators 44
Spring Isolators 25mm Deflection 25
Direct Mount 19
H9 COMPRESSORS
EVAPORATOR – COND. SHELL CODES
I-K & K–K K–O M–M
A 2,299 2,673 2,616
B 3,150 3,242 3,315
C 641 641 724
D 508 695 584
E 4,267 4,267 4,267
178
LD03886
