SECTION 2 - INSTALLATION
NOTES:
1. All dimensions are approximate.
2. For compact waterboxes (shown above), determine overall unit length by adding waterbox depth to tube sheet length.
3. Water nozzles can be located on either end of unit. Add 13 mm (1/2 inch) to nozzle length for anges connections.
4. To determine overall height, add 22 mm (7/8 inch) for isolators.
5. Use of motors with motor hoods may increase overall unit dimensions.

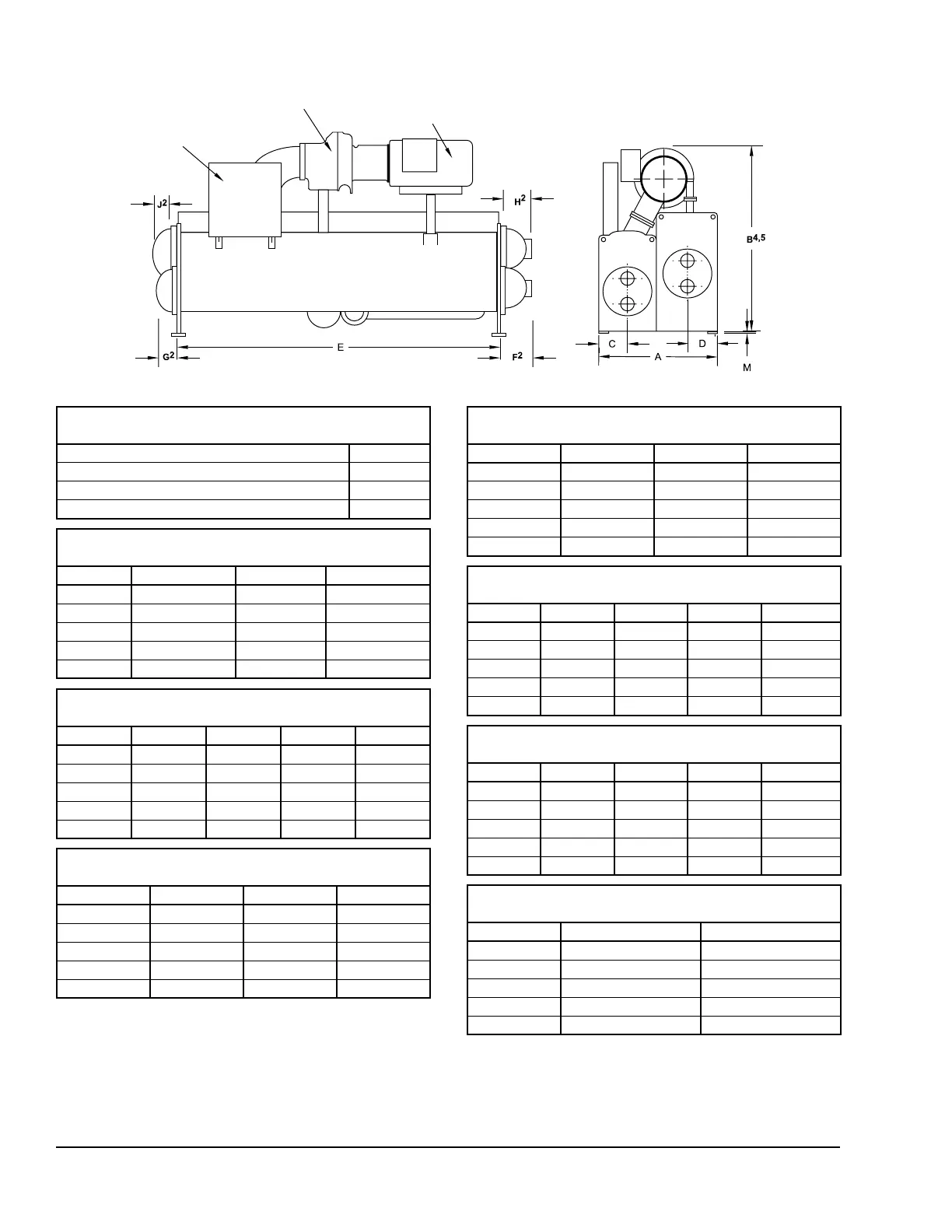

FIGURE 13 - DIMENSIONS – P AND Q COMPRESSOR UNITS (MM)
P AND Q COMPRESSOR UNITS (METRIC)
ADDITIONAL OPERATING HEIGHT CLEARANCE
Type of Chiller Mounting
M
Neoprene Pad Isolators 45
Spring Isolators 25mm Deflection 25
Direct Mount 19
P7, Q7 COMPRESSOR
EVAPORATOR – CONDENSER SHELL CODES
E–E E–I F–F
A
1,880 2,178 1,880
B
2,299 2,642 2,299
C
495 495 495
D
445 594 445
E
3,658 3,658 4,877
P8 COMPRESSOR
EVAPORATOR
–
CONDENSER SHELL CODES
E–E F–F G–G H–H
A
2,108 2,108 2,299 2,299
B
3,200 3,200 3,327 3,327
C
610 610 641 641
D
445 445 508 508
E
3,658 4,877 3,658 4,877
P9 COMPRESSOR
EVAPORATOR
–
CONDENSER SHELL CODES
H–F J–J L–L
A
2,108 2,299 2,299
B
3,124 3,264 3,264
C
610 641 641
D
445 508 508
E
4,877 3,658 4,877
Q3 COMPRESSOR
EVAPORATOR – CONDENSER SHELL CODES
A–A C–C D–D
A 1,549 1,676 1,676
B 2,134 2,229 2,229
C 394 445 445
D 381 394 394
E 3,658 3,658 4,877
Q6 COMPRESSOR
EVAPORATOR – CONDENSER SHELL CODES
E–E F–F
A 2,134 2,134
B 2,515 2,515
C 495 495
D 445 445
E 3,658 4,877
Q5 COMPRESSOR
EVAPORATOR – CONDENSER SHELL CODES
C–C D–D E–E F–F
A
1,676 1,676 2,134 2,134
B
2,403 2,403 2,578 2,578
C
445 445 495 495
D
394 394 445 445
E
3,658 4,877 3,658 4,877
Q4 COMPRESSOR
EVAPORATOR – CONDENSER SHELL CODE
C–C C–B D–D E–E
A 1,676 1,949 1,676 2,134
B 2,197 2,423 2,197 2,350
C 445 445 445 495
D 394 530 394 445
E 3,658 3,658 4,877 3,658
