2.2 Display Unit Installation
WARNING
Install this unit at least 1 m away from any magnetic compasses. Installation
near a magnetic compass may result in interference with the magnetic compass,
and may result in an accident.
CAUTION
Use the indicated screws when installing the display unit to a stable wooden
surface. Failure to do so may result in the display unit falling over, causing injury
or property damage.
The installation stand (trestle) is used and this display can be set up in desk-top, the wall, and the
ceiling, etc.
Select installation features according to the following standard.
Read the following instructions and mount the unit accordingly.
(1) Loosen the unit knob, and disconnect the mount from the unit.
(2) Use the included screws to secure the mount where desired.
(3) Return the unit to the mount, and tighten it with the knob.

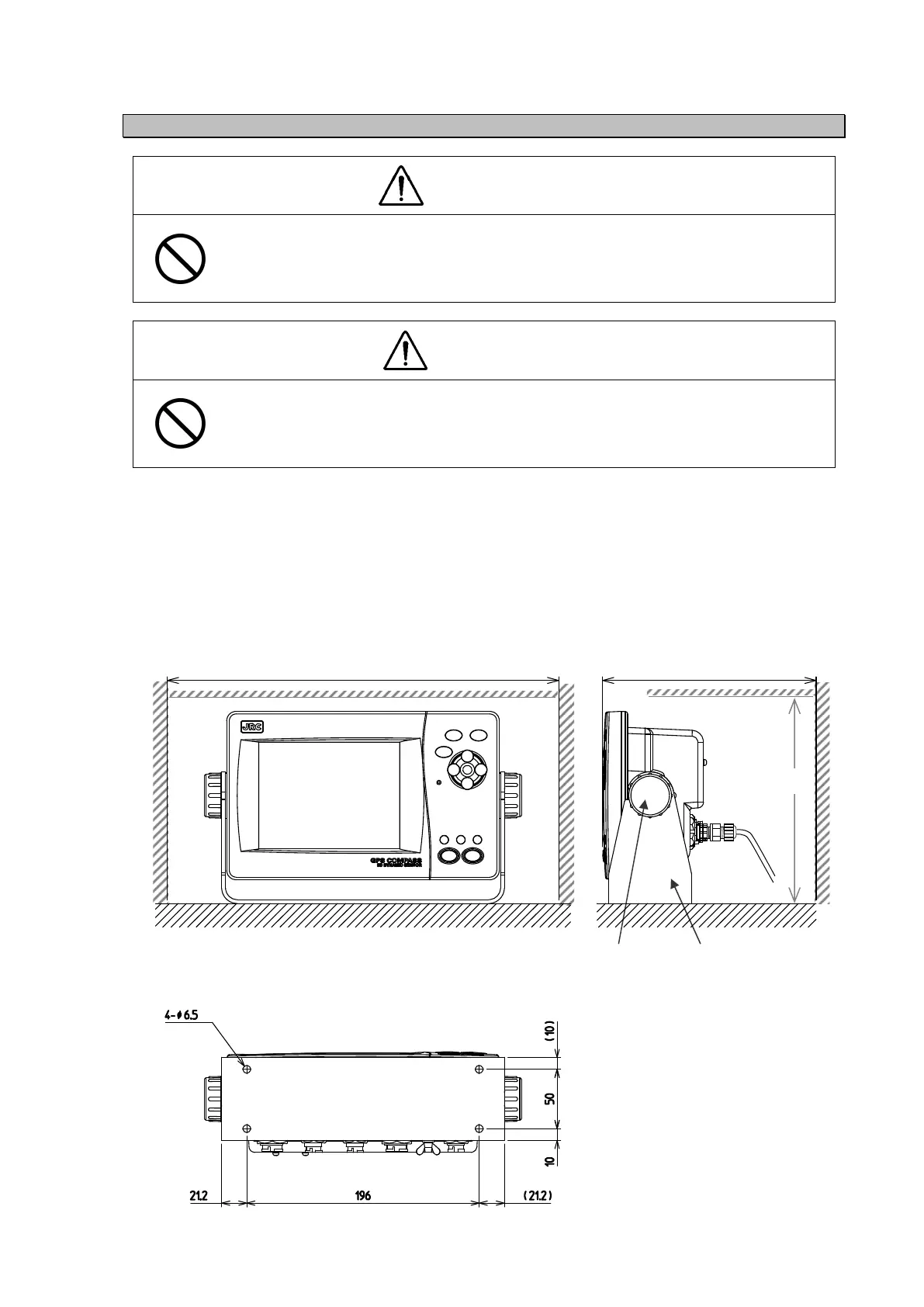

Required Space
(Unit: mm)
Mount (bottom)
190 or more
Knob
Mount
370 or more
200 or more
