2-19

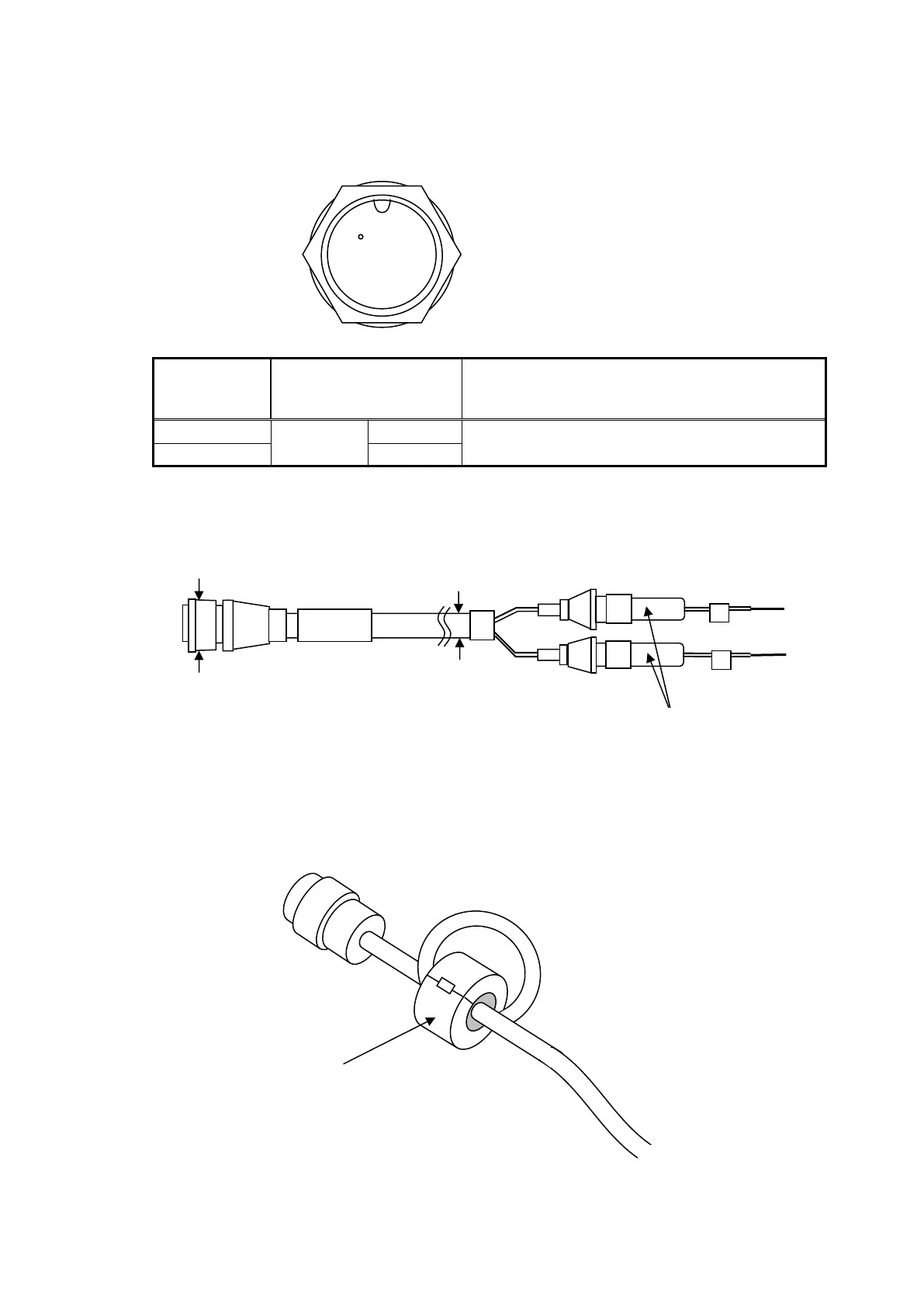

[Power Supply Connector]
DC12/24V (Label name of the back of Display)
Power Supply Cable: CFQ-7257 (included)
Terminal
Number
(CFQ-7252)
Name Explanation
1 (Black)
DC12/24V
DCIN -
Connect the included power supply cable.
The voltage shall be 10.8 - 31.2 V DC.
2 (Red) DCIN +
Connection Cable Appearance
● Noise Filtering
Make a loop with the cable and clamp it with the included Clamp Filter as shown below.
① ②
＋
－
2A
Red
Black
2A
CFQ-7257
Clamp Filter
Fuse Holder
(2A fuse contained)
Cable Length: 2m
Approx.Φ23.2mm
Approx.Φ6mm
To Next Page
