2-20

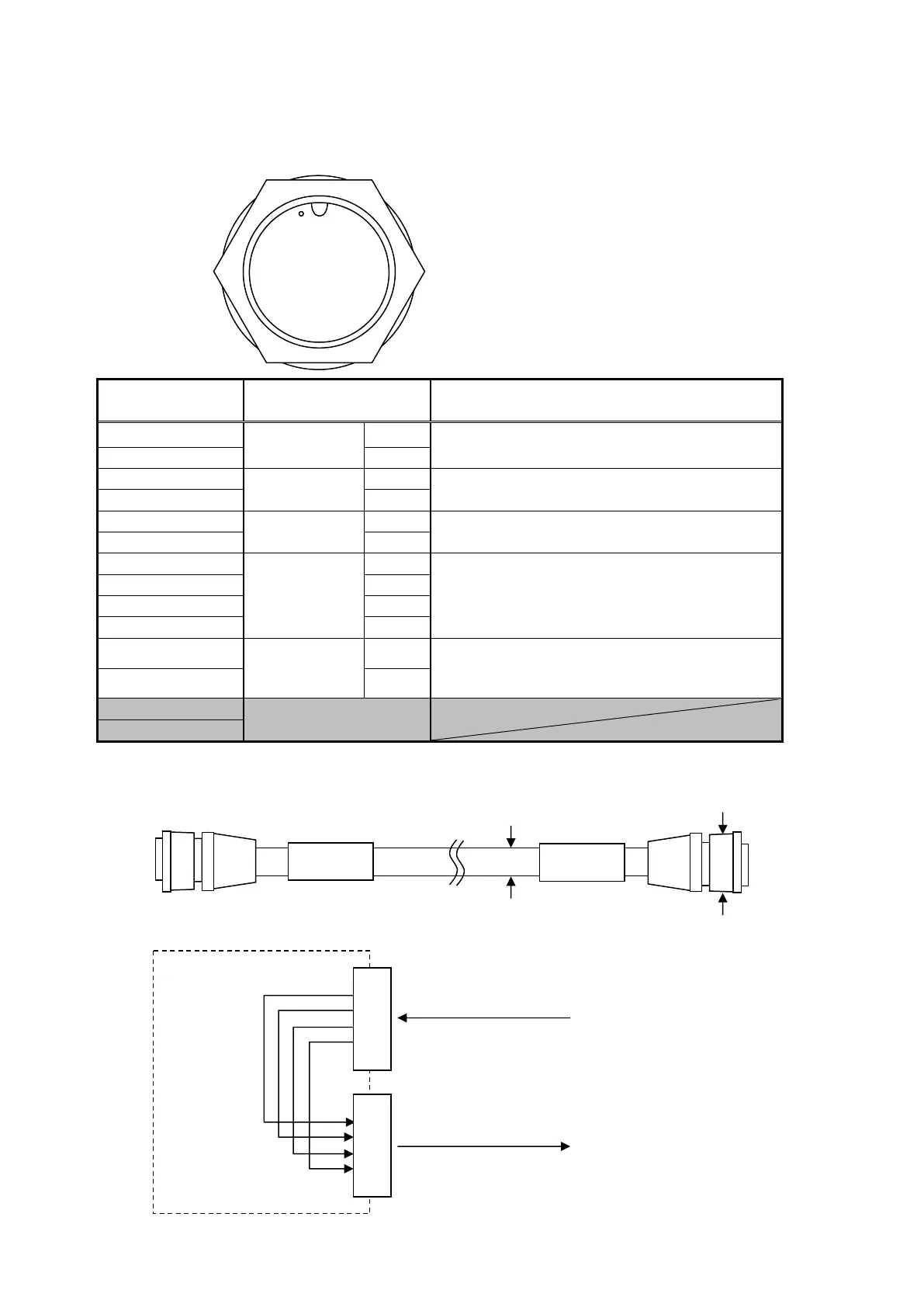

[Sensor Connector]
SENSOR (Label name of the back of Display)
Data Cable: CFQ-7248 (included)
Terminal Number
(CFQ-7248)
Name Explanation
1 (Red Thick)
Sensor
Power Supply
13V
Power to the sensor is supplied by the display
unit.
2 (Black Thick) GND
3 (Orange)
RXD0
A
Receives data from the sensor.
4 (Yellow) B
5 (Green)
TXD0
A
Sends configuration data to the sensor.
6 (Blue) B
7 (Purple)
Sensor
Through
SD-A
Outputs data from the sensor through [DATA
IN/OUT 1].
8 (Grey) SD-B
9 (White) SC-A
10 (Black Thin) SC-B
11 (Brown)
TXD4B (*1)
A
Sends configuration data to the beacon
receiver.
(Option cable required)
12 (Pink) B
13 (Light Blue)
Unused
14 (Light Green)
*1 : Outputs parallel to the DATA IN/OUT 2 connector 9 and 10 pins. (Refer to page 2-27)
Connection Cable Appearance
● Sensor Through Terminal: The signal line are routed in the display unit as shown below.
① ②
③ ④ ⑤
⑥ ⑦ ⑧ ⑨
⑩ ⑪ ⑫
⑬ ⑭
SENSOR
DATA
IN/OUT 1
SD-A
SD-B
SC-A
SC-B
・
7
8
9
10
・
・
3
4
5
6
・
CFQ-5374
CFQ-7248
External Device
NNN-21/31
Sensor Unit
NWZ-4701
Display Unit
Interior
CFQ-7248
CFQ-7248
Cable Length: 10m
Approx.Φ7mm
Approx.Φ22.2mm
To Next Page
