2-22
● Cable Length
■ For cable lengths of less than 30 m
Use the option cable (CFQ-7249).

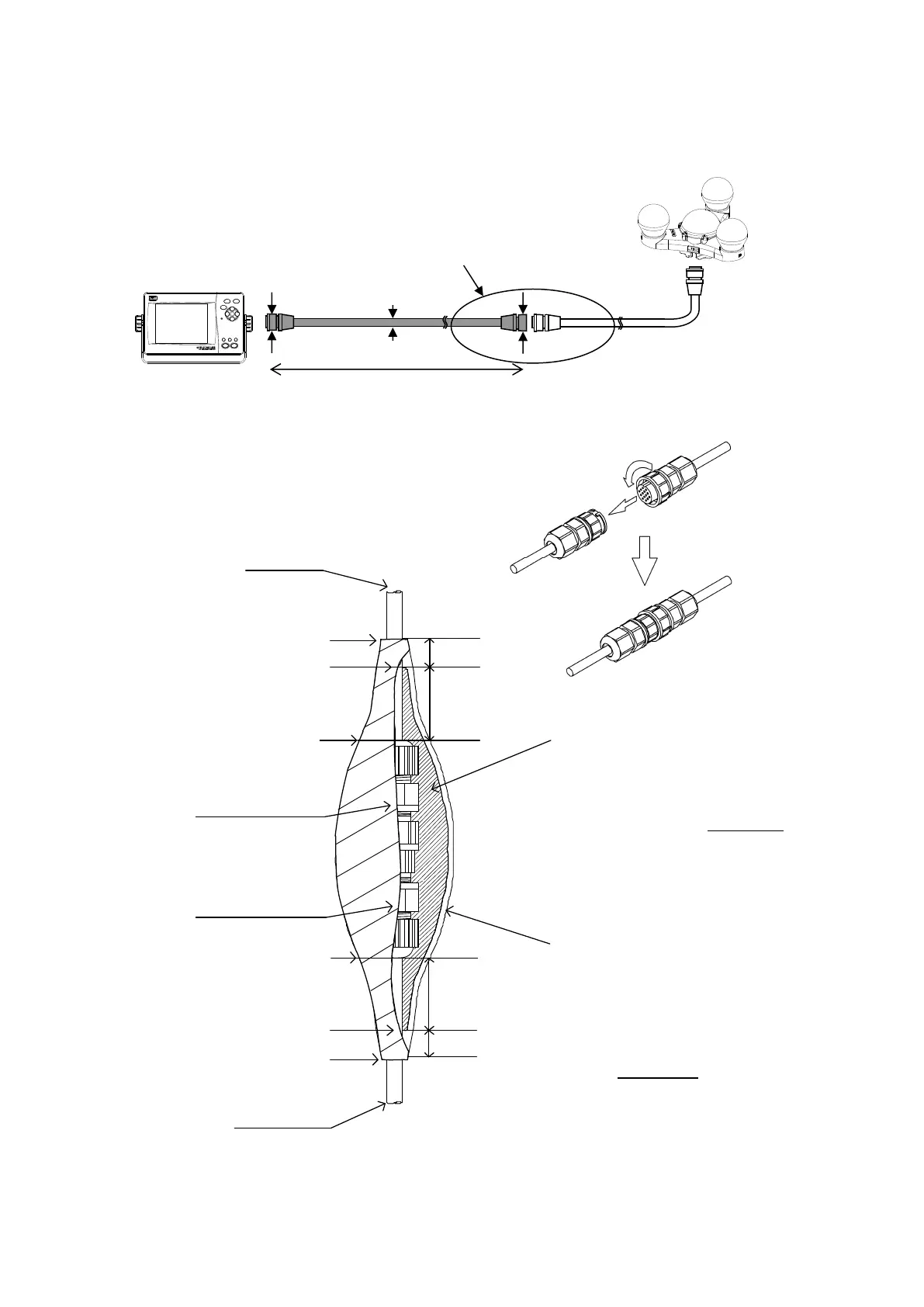

< Waterproofing method for connectors of extended line >
Display side
<Start of Self-bonding tape wrapping>
Connector (Plug) or Tube
<End of Self-bonding tape wrapping>
Sensor side
Self-bonding tape
Take a proper length of tape off the role.
While pulling in accordance with tape
manual, wrap it around the connector
with one half of it overlapped so that the
wrapped tape may form three layers.
However, portions between the
connector and cable have different
diameters. This portion apply tape more
than the other portions.
When the tape has been wrapped, press
to hold by hand.
Protective PVC tape (vinyl tape)
Taking care not to give tension to the
tape,
wrap the tape around the connector with
one
half of it overlapped so that the wrapped
tape
may form three layers.
<End of vinyl tape wrapping>
10mm or more
<Start of vinyl tape wrapping>
25mm or more
25mm or more
10mm or more
Connector (Socket) or Tube
Connector (Plug)
Connector (Socket)
CFQ-7249 / 20m
(CFQ7249-10 / 10m)
Approx.Φ22.2mm
Approx.Φ7mm
Approx.Φ20.2mm
Female Female
Male
Female
* A connector with pins is male side.
CFQ-7248(10m)
(Attachment)
Sensor side
Display
side
Waterproof treatment is required.
Refer to <Waterproofing method for connectors of extended line>
on the next section, please waterproof treatment.
