JRC JLR-21 - Page 42

2-24

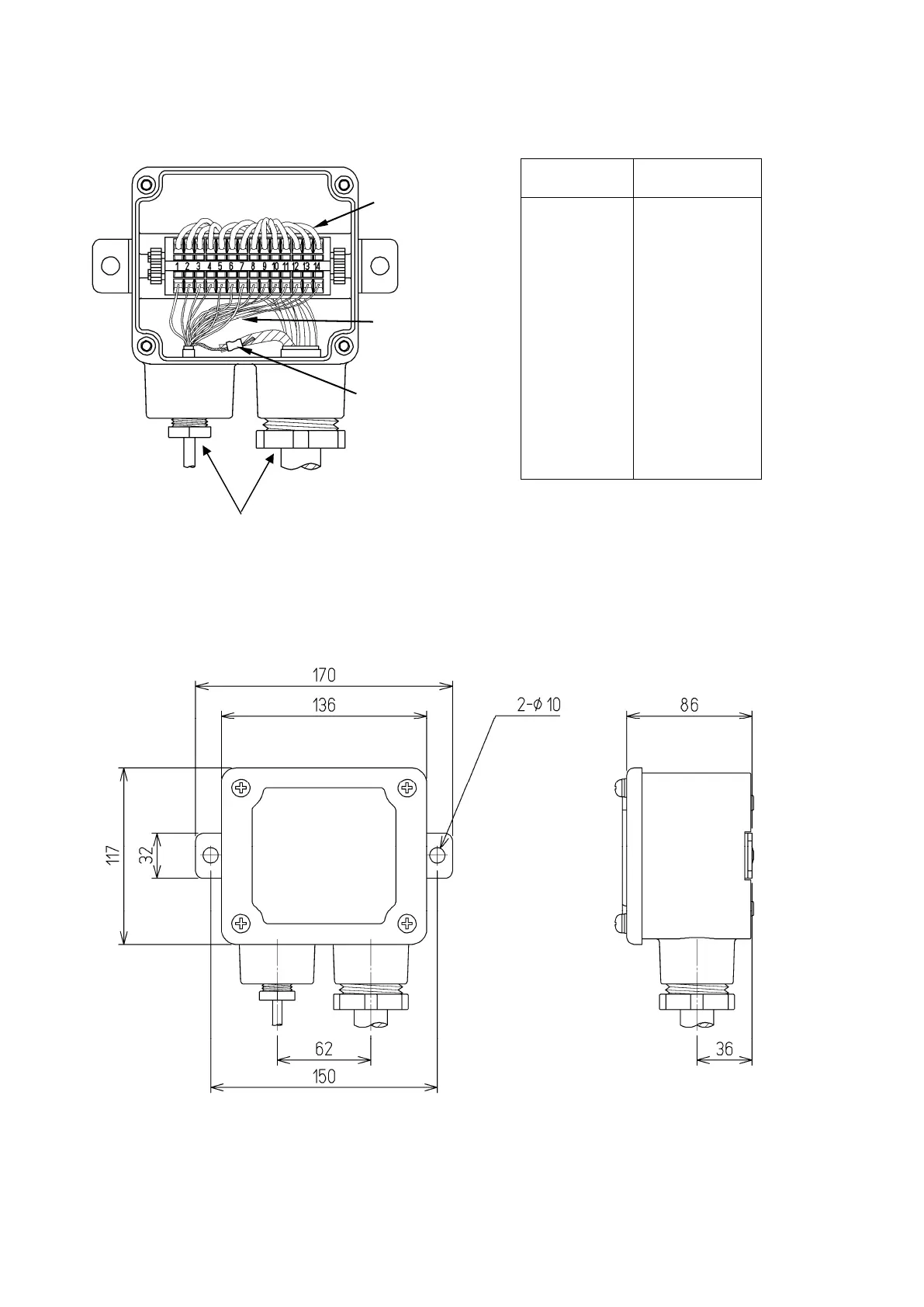

Connect the cut CFQ-7248 cable and junction boxes
Junction box NQE-7720(Option) Externals chart
(Installation metal fittings MPBP31612 are not included. )
Terminal
stand NO
CFQ-7248
1 Red Thick
2 Black Thick
3 Orange
4 Yellow
5 Green
6 Blue
7 Purple
8 Grey
9 White
10 Black Thin
11 Brown
12 Pink
13 Light Blue
14 Light Green
Shield Shield
TTYCYS-7
Extension cable
CFQ-7248
Data cable
Length of each wire
120±10mm
Length of each wire
100±10mm
The shield line is
connected with the
Oki sleeve or solder.
NQE-7720
Seal processing is effective.
