JLR-7700 MK2 GPS Navigator
2. Unit Descriptions and Functions
2.1 Operation Panel of the Navigator
The following figure shows the keys provided on the operation panel of the navigator and the functions
thereof.

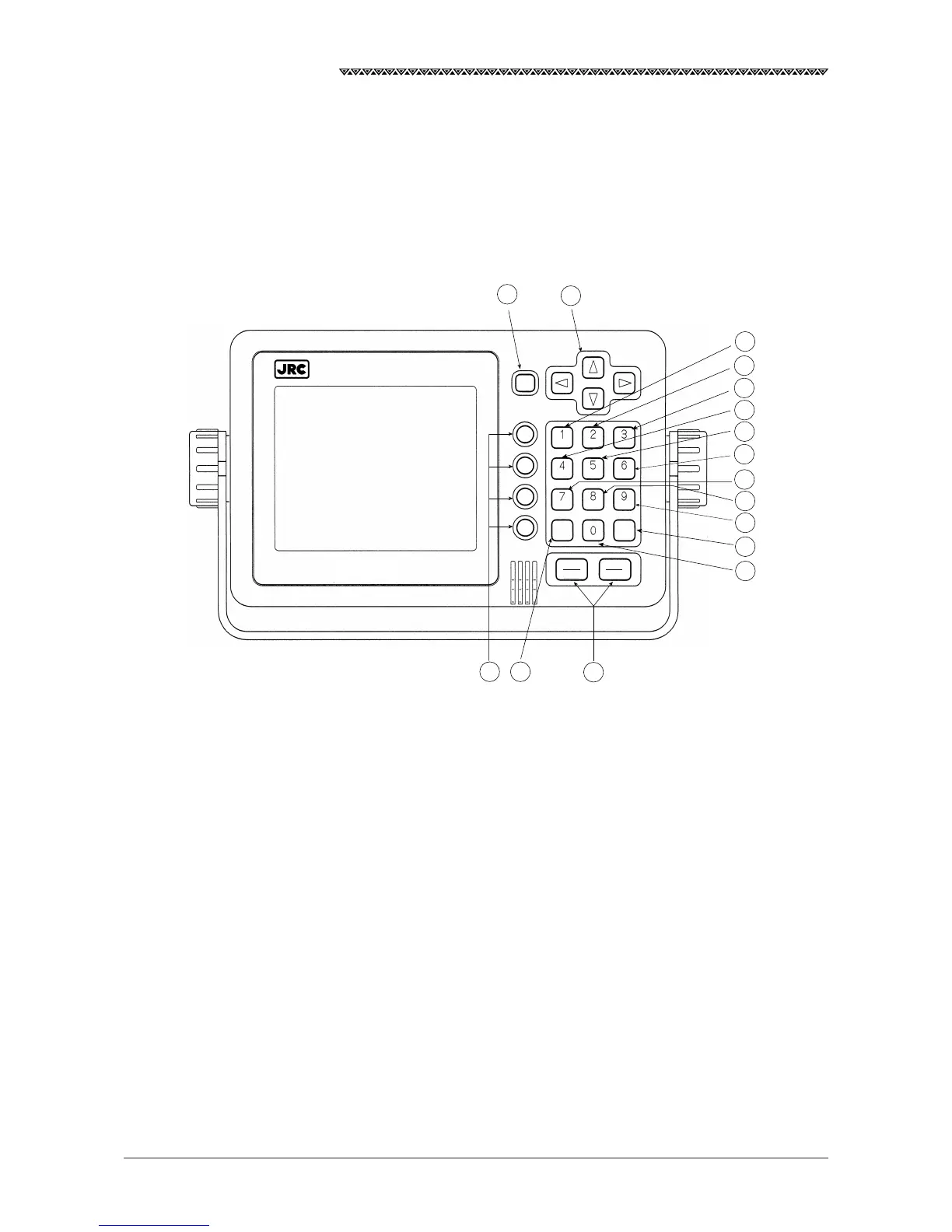

Fig. 2-1 Operation Panel of the Navigator
11
5
4
6
7
8
9
10
16
15
14
13
1
2
3
12
MODE
EVENT
CLR ENT
PWR
DIM
INC
DEC
GOTO
OFF
CONT
