JLR-7700 MK2 GPS Navigator
2.2 Rear Panel of the Navigator

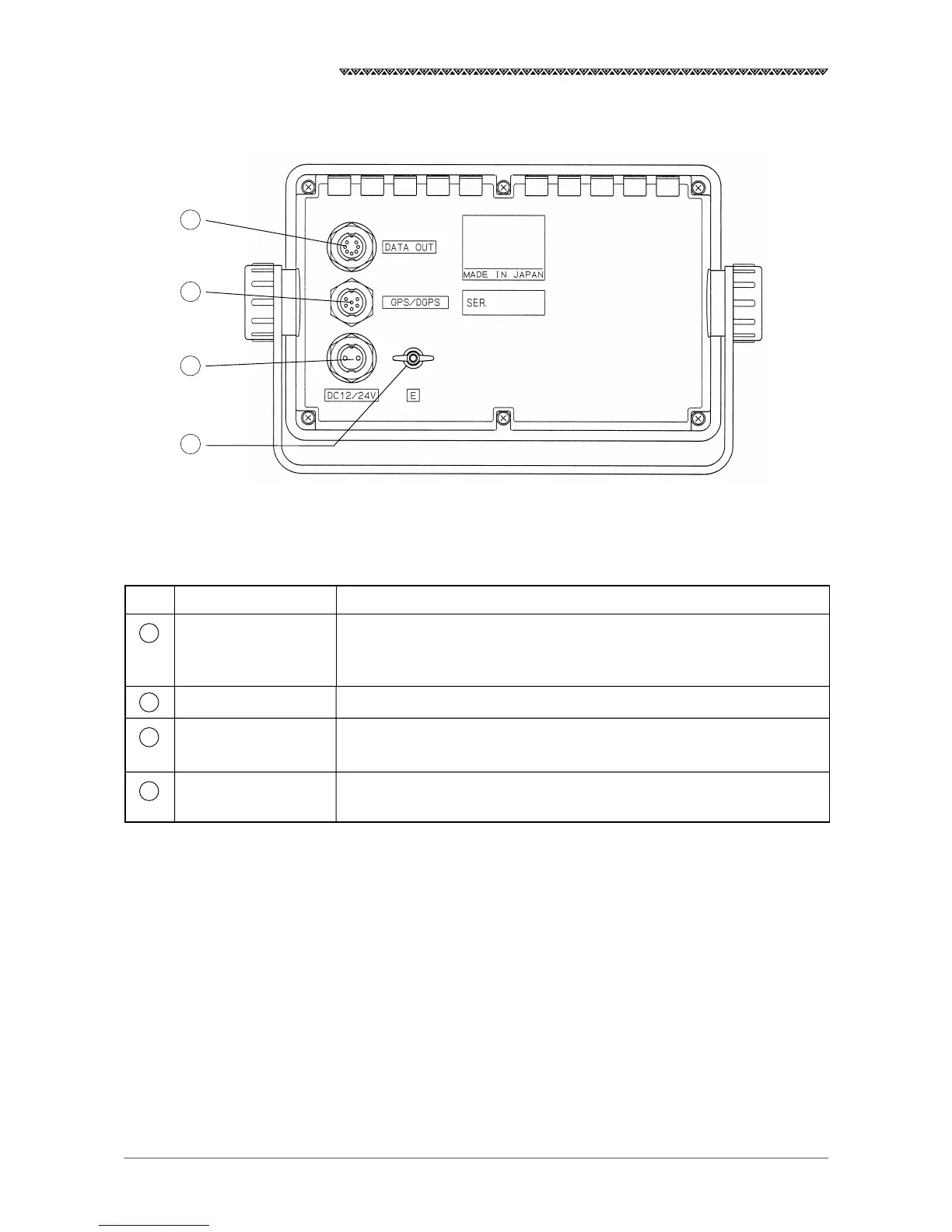

Fig. 2-2 Rear Panel of the Navigator
18
17
20
19
17
No. Description Function
18
20
19
DATA OUT connector This connector outputs various data (DATA 1 and DATA 2) for the plotter,
auto pilot, printer, remote display and so on, in addition to the external
buzzer or log pulse.
GPS/DGPS connector This connector connects the NNN-4331 DGPS receiver.
12/24 VDC connector This connector connects the CFQ-3598B power supply cable included in
the equipment.
Terminal E This connector needs to be connected to the earth of the vessel frame.
Use the attached copper tape (25W×2,000×0.3t) to connect it.
