JLR-7700 MK2 GPS Navigator
175
240
27
1669
197
27 143
(88)
4- 7.5
Mounting hole
Unit : mm
NKG-22
DATA
OUT
DATA
INDC24V
TX (+)TX (-)
White
White
Shield
Shield
Shield
Black
Black
DC24V
Data cable
To DATA OUT of
NWZ-4570B
(3) NKG-22 printer specifications
● Key specifications
Printout method : Serial dot matrix impact
Printing speed : Approx. 1.2 lines per second
Ink ribbon : SF-01B, JRC code 5ZPDH0002
Recording paper : 69 x 60 (approx. 30 meters long), JRC code 5ZPDH00001
Operating temperature range : 0 ℃ to +50 ℃
Power supply : 18 tosVDC, 32 W
Weight : 2.8 kg

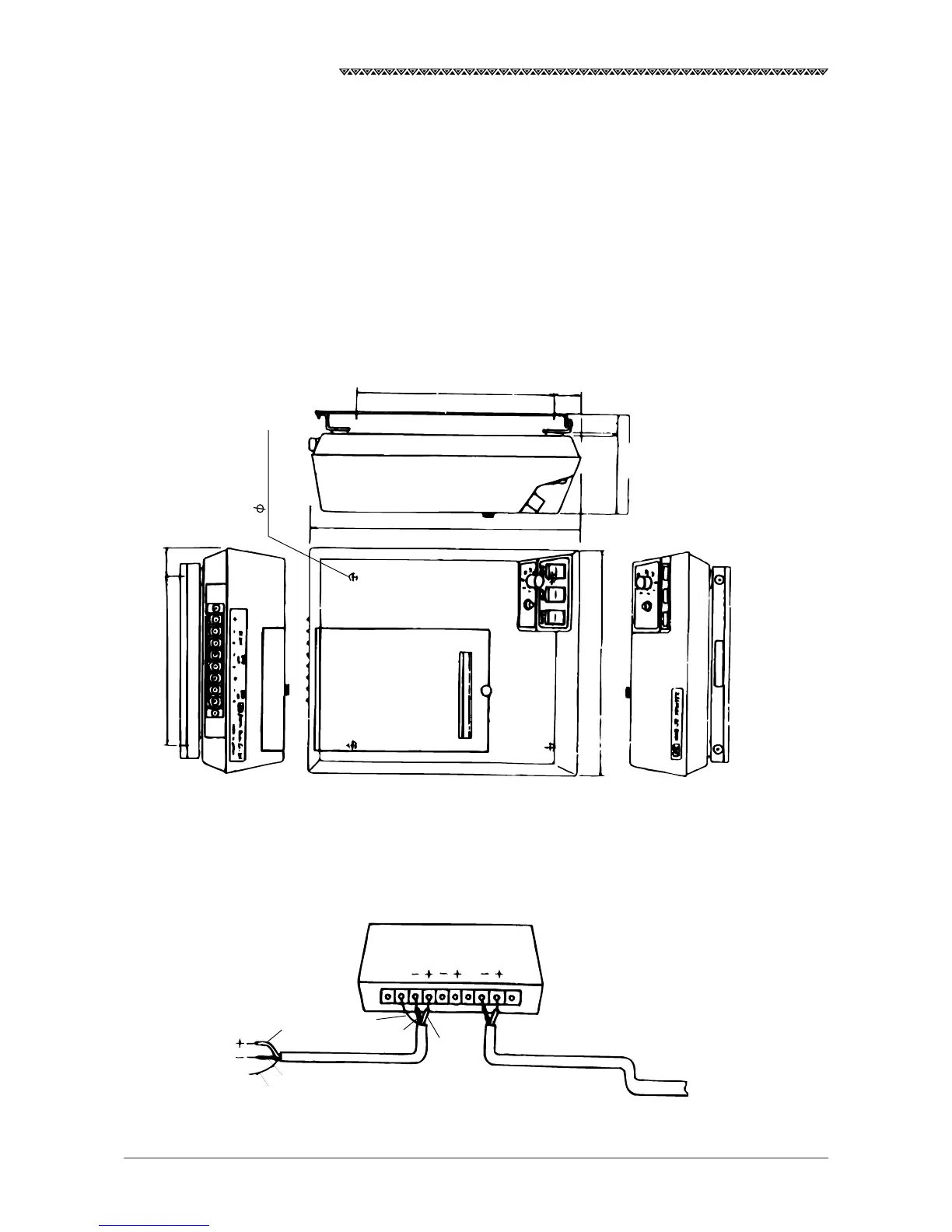

● Outline drawing
● Connection
