3 – 75
By using the shoredine ROM card made by JRC and ERC card (issued by Maritime Safty Agency), shoreline
is displayed both in radar+plotter made and in plotter mode (optional).
By using C-MAP card, shoreline is displayed only in plotter mode (optional).
For displaying C-MAP card, see NDB-33 plotter instruction manual.
3.5.1 Displaying the Shoreline ROM Card Made by JRC
• As the shoreline ROM card is inserted into card slot 1 or card slot 2, the shoreline is displayed
automatically.
• The shoreline ROM card can be inserted 2 cards into card slot 1 and 2, but the card in card slot 2 has
the card in card slot 1 over.
• The shoreline ROM card made by JRC can't be inserted into card slot with ERC card or C-MAP card.
• As the card is inserted into card slot, the surface of the card is upper side.
3.5 Displaying the Chart

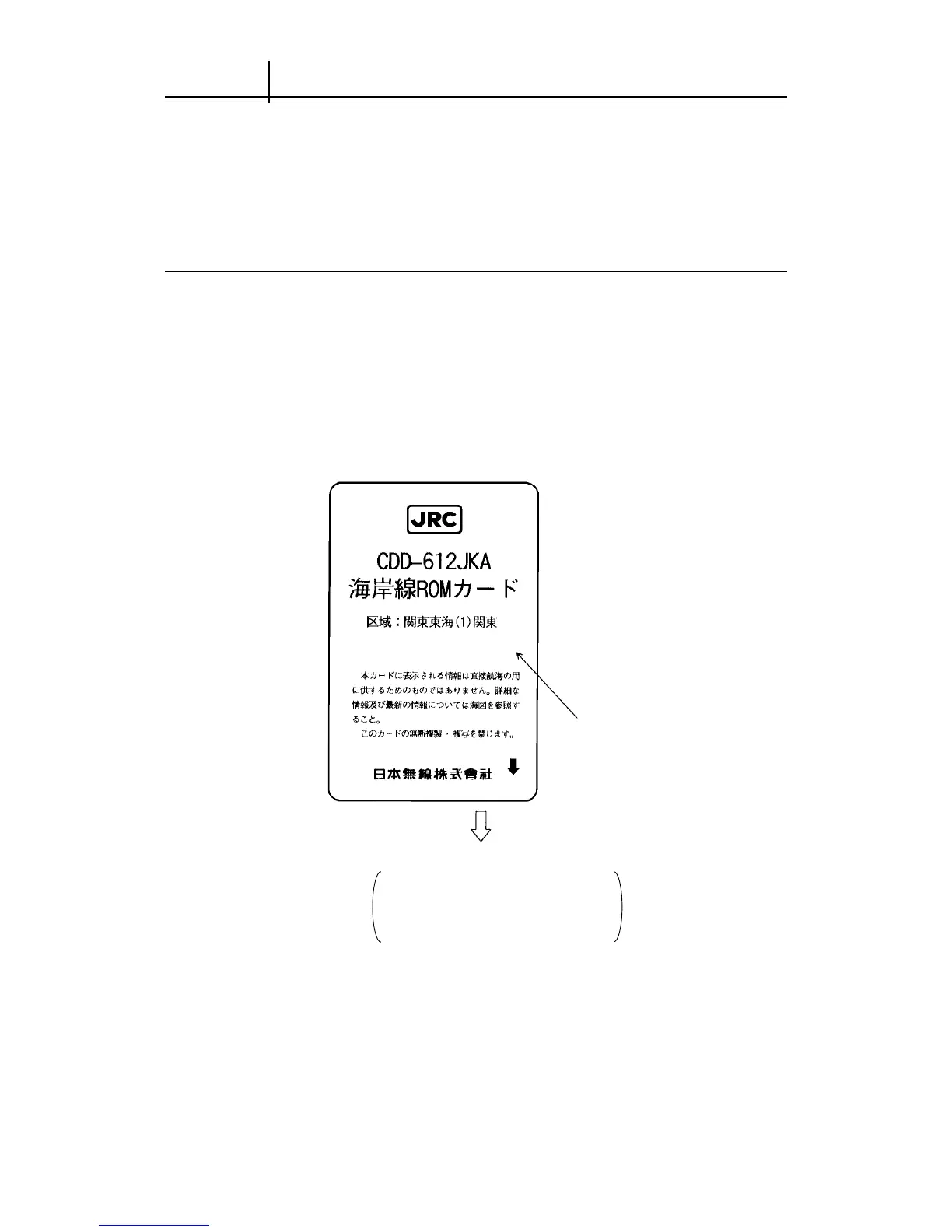

the surface
of the CARD
INSERT SLOT1 or SLOT2
"2-2" No. $8 : CARD SLOT
Upper : SLOT1
Lower : SLOT2
