– 132 –
Cable guide
Condensation solenoid cord
5
4
10
9
Optional connecter
of the thread clamp
solenoid
Optional connecter of the
thread clamp solenoid (10P)
⑨

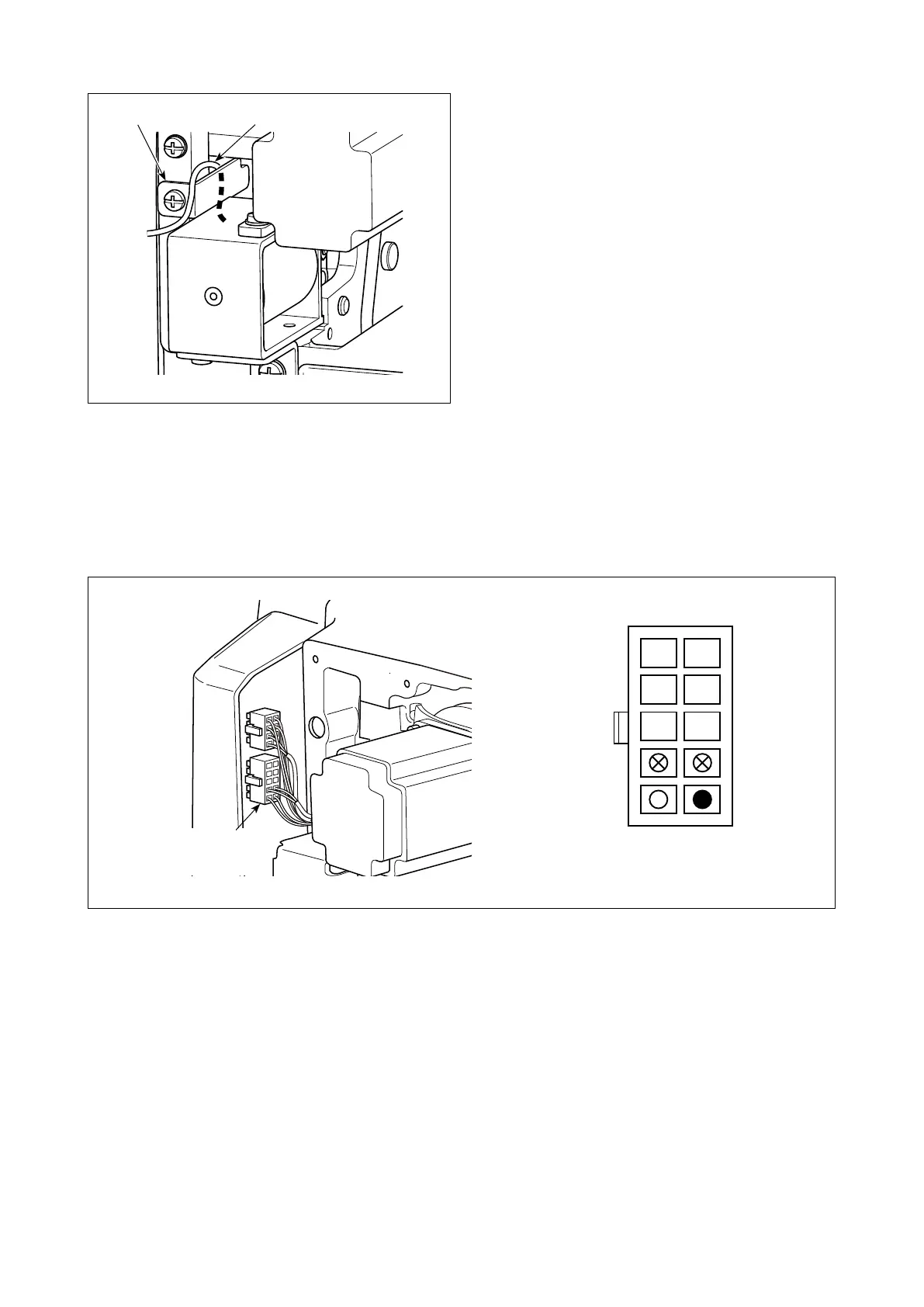

Attaching the motor cable guide
1) Secure the motor cable guide on the condensation
solenoid cord. Then, pass the cord from below
upward, on the far side of the motor cable guide.
Then, pull the cord toward the near side.
⑩
Connecting the cord
Insert the condensation solenoid pins into the optional connecter of the thread clamp solenoid, as shown
in the gure.
(Insert the black pin to No. 5 and the white pin into No. 10 of the 10-pin connector. The thread clamp
solenoid pins have already inserted into Nos. 4 and 9.)
⑪
Installing the AK cover, pulley and electrical box
Reversing the disassembly procedure, install the AK cover, pulley and electrical box.
[4] Panel setting
①
Initial setting
P132 Operation starting duty of the condensation solenoid: 55
P133 Duty when the condensation solenoid operates: 10
Change the set values to the aforementioned value in order to operate the condensation solenoid without
fail.
②
Setting the number of stitches
Set the number of condensation stitches at the end of sewing to 2.
P129 Number of condensation stitches at the end of sewing: 2
To Next Page
