JUKI DDL-8000A Engineer's Manual

– 5 –
3. Standard adjustment

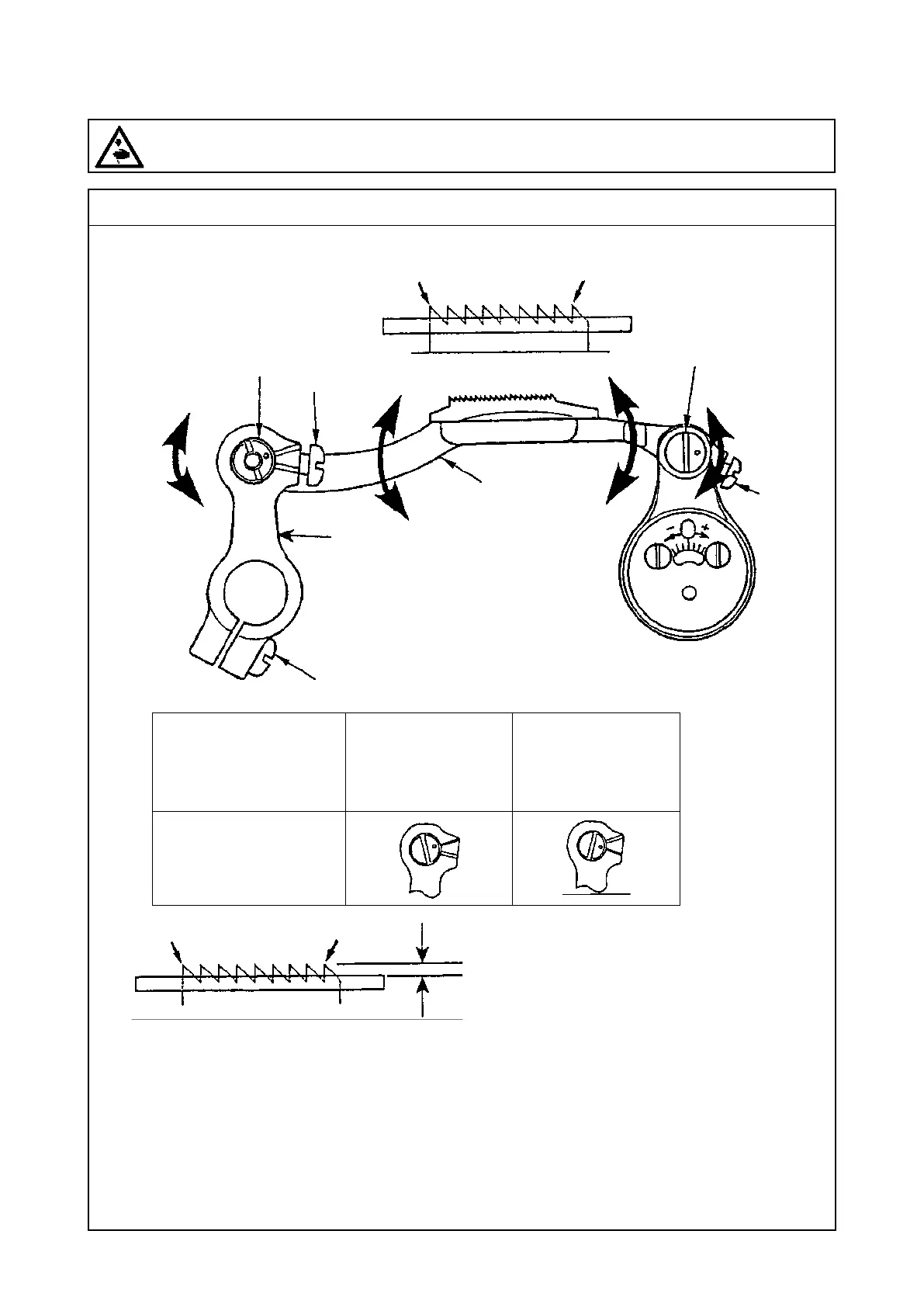

(1) Feed dog height and gradient
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Standard adjustment
Shipped feed dog • 40133950
(MS)
• 11403003
(SH-AA/BB)
• 11062601
(SH-GG)
Engraved marker dot
position on the horizontal
feed bar shaft
a
b
A
B
a
b
a
b
A
B
❶
❷
❹
❻
❸
❺
DDL-8000A*-MS : 0.8mm
DDL-8000A*-SH (DDL-8000*-SJ) : 1.2mm
Standard feed dog height (Feed dial graduation 0)
0.8mm : DDL-8000A*-MS
1.2mm : DDL-8000A*-SH (DDL-8000A*-SJ)
Standard feed dog gradient
The engraved marker dot on the feed bar shaft

is adjusted by a feed dog of relevant standard.
❼
a
b

JUKI DDL-8000A Specifications

General

Stitch Type	Lockstitch
Motor Type	Direct-drive motor
Thread Trimmer	Automatic
Max. Stitch Length	5mm
Needle Bar Stroke	30.7mm
Lift of the Presser Foot	By hand: 5.5mm, By knee: 13mm
Control Panel	Digital
Lubrication	Automatic
